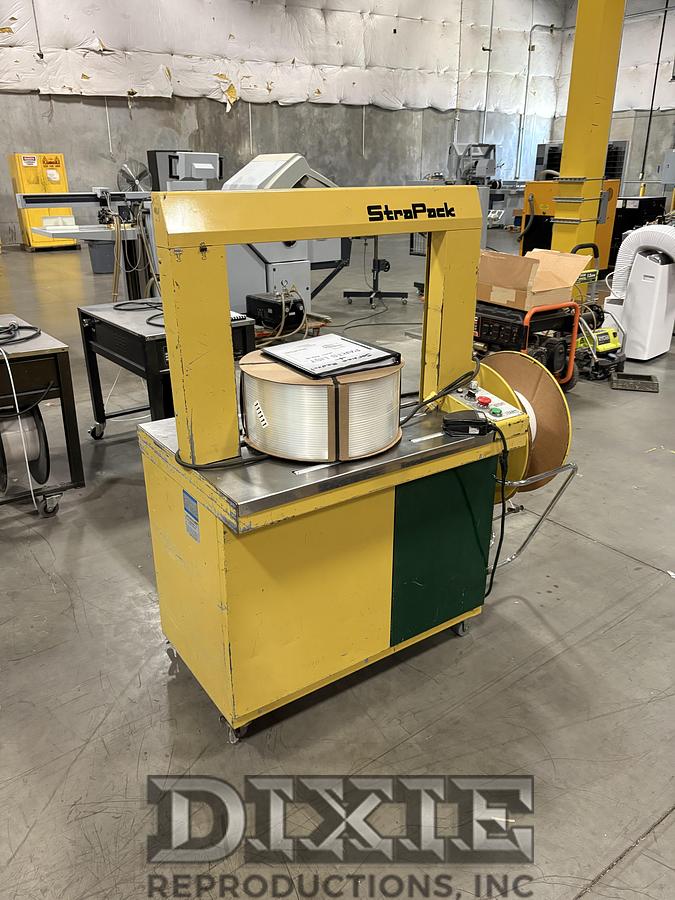

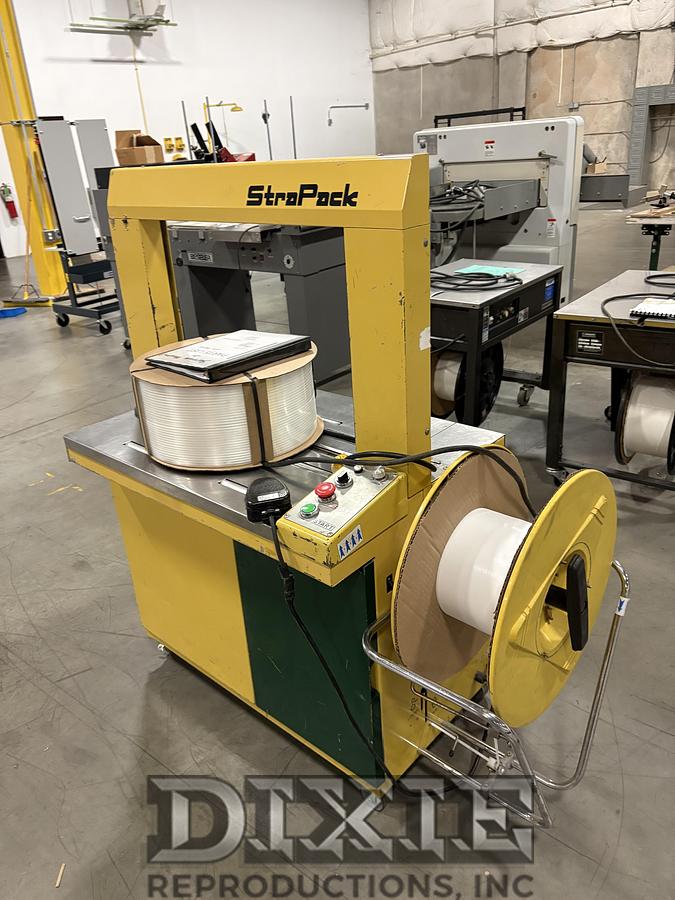

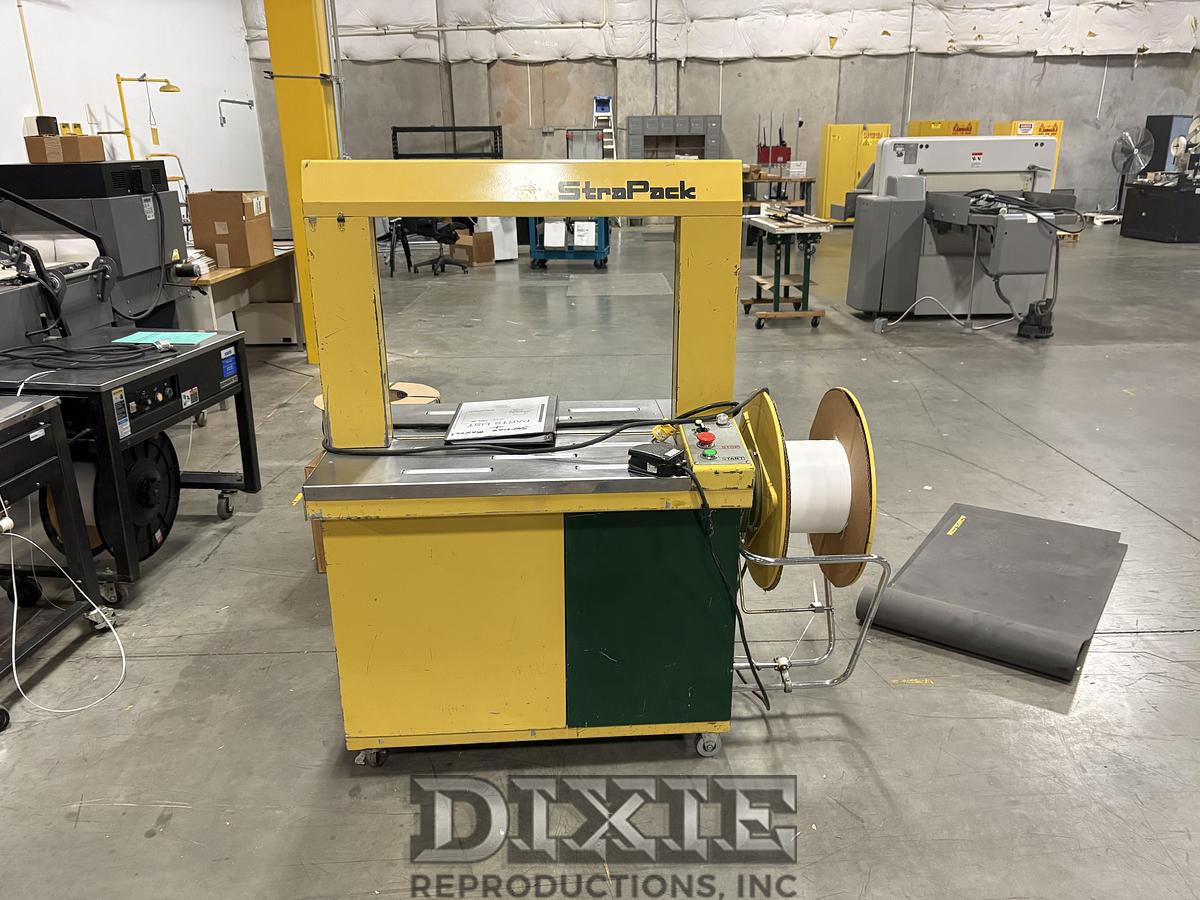

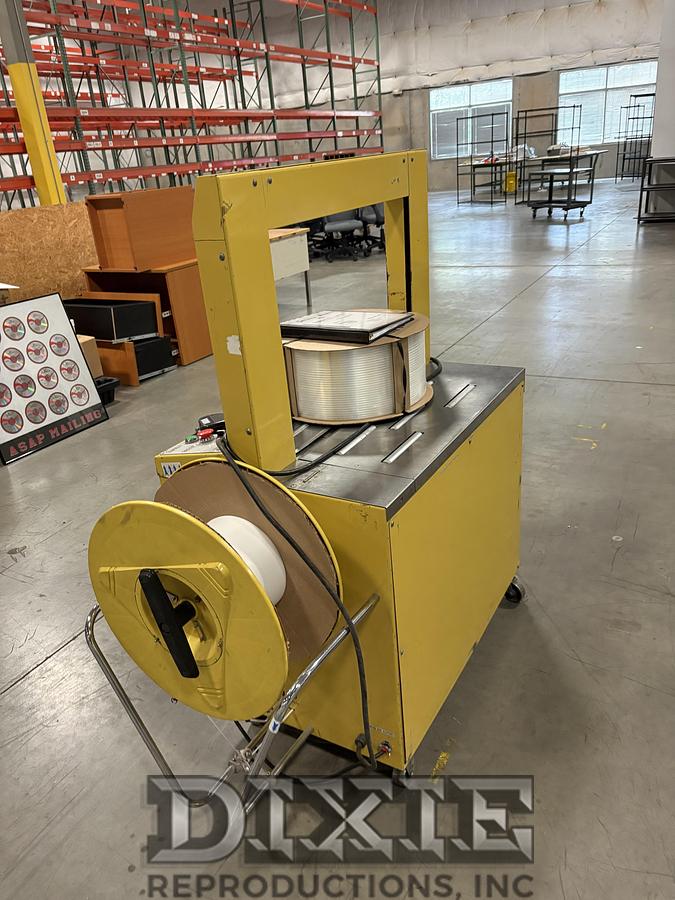

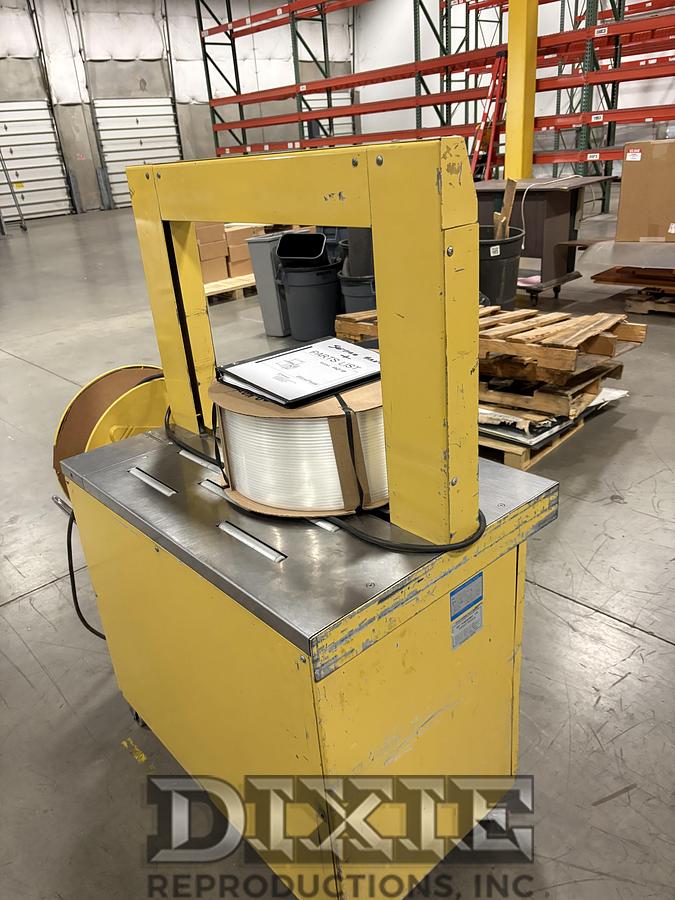

StraPack RQ-8

The StraPack RQ-8 is a heavy-duty automatic arch strapping machine designed to apply polypropylene (PP) strapping around cartons, bundles, printed materials, mail pieces, etc.

Machine Width 49-5/16" (1,252 mm)

Machine Height 55-1/4" (1,403 mm)

Machine Depth 24" (609 mm)

Weight Approx. 353 lbs. (160 kg)

Table Height 31-1/4" (794 mm)

Standard Arch Opening 25.6" W × 19.7" H (650 × 500 mm)

Maximum Package Size 24.4" W × 18.9" H (620 × 480 mm)

Minimum Package Size 3-1/8" W × 1-1/4" H (80 × 30 mm)

Strapping Speed Up to 40 straps/minute

Cycle Time Approx. 1.5 sec./strap

Strap Type Polypropylene (PP)

Strap Width 5, 6, 9, 12 mm; some configurations support 15.5 mm

Maximum Strap Tension 176 lbs. / 80 kg

Seal Type Heat seal

Electrical Single phase, 50/60 Hz

Available Voltage 100, 120, 200, 220, 230 or 240 V

Power Consumption Approx. 0.65 kVA

Strap Coil 8" ID × 18" OD × 8" W
