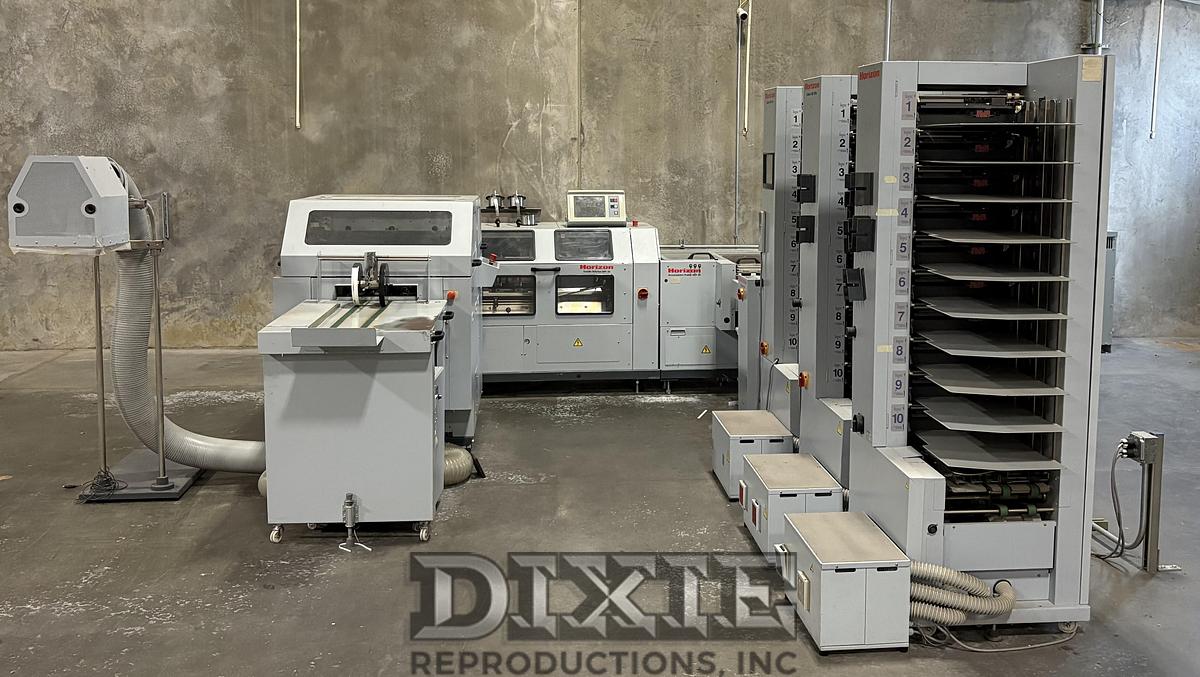

2007 Horizon Stitchlinder 5500

2007 Horizon Stitch liner 5500

 - Condition/Usage: Complete saddle-stitch line with light use in a clean environment. Blades were recently sharpened.

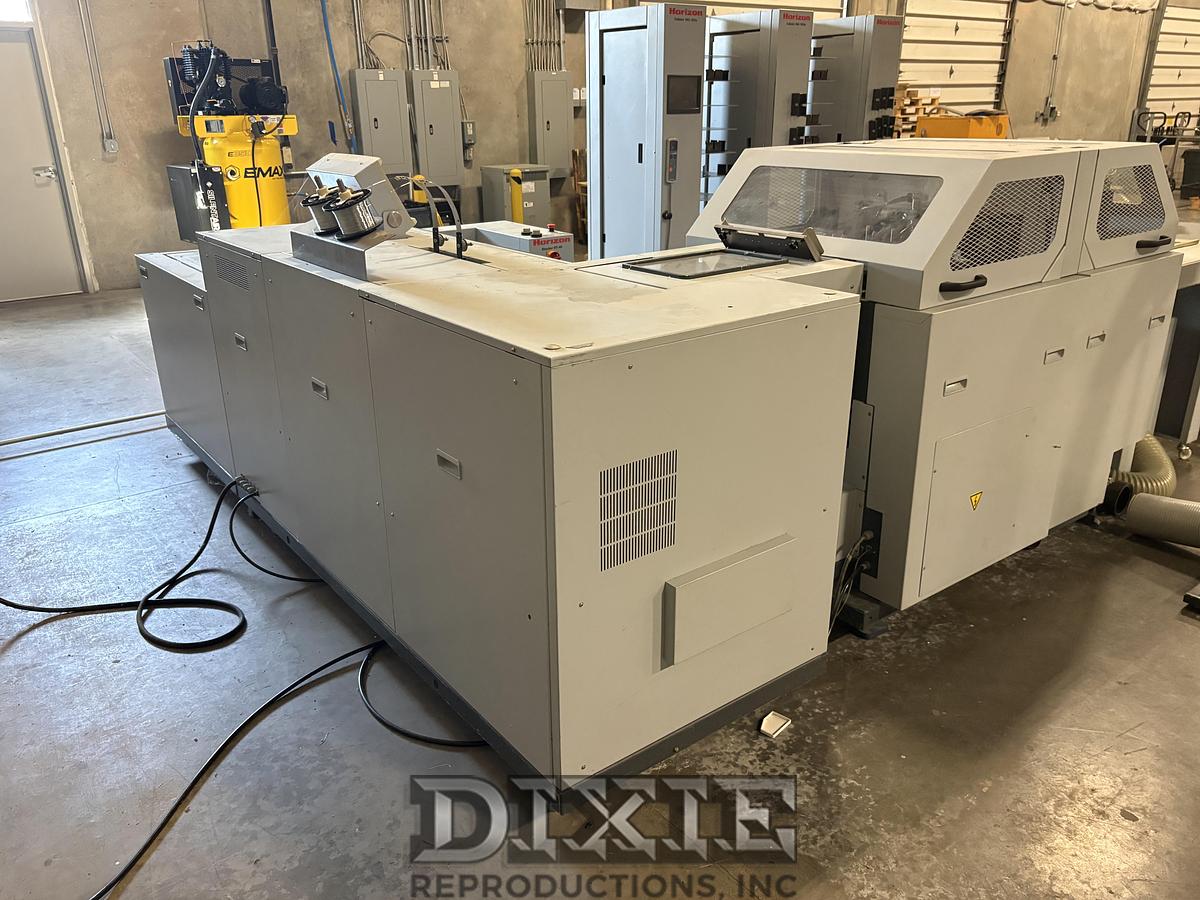

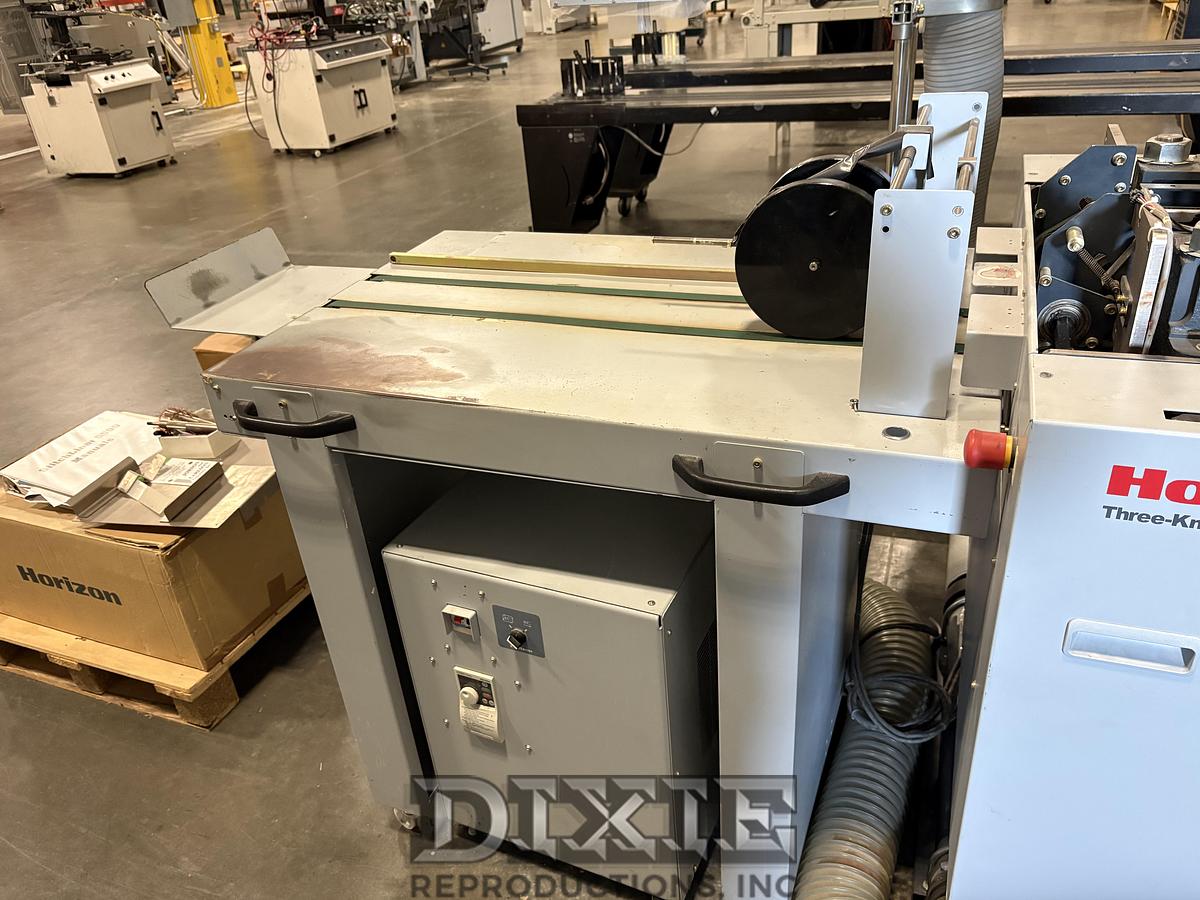

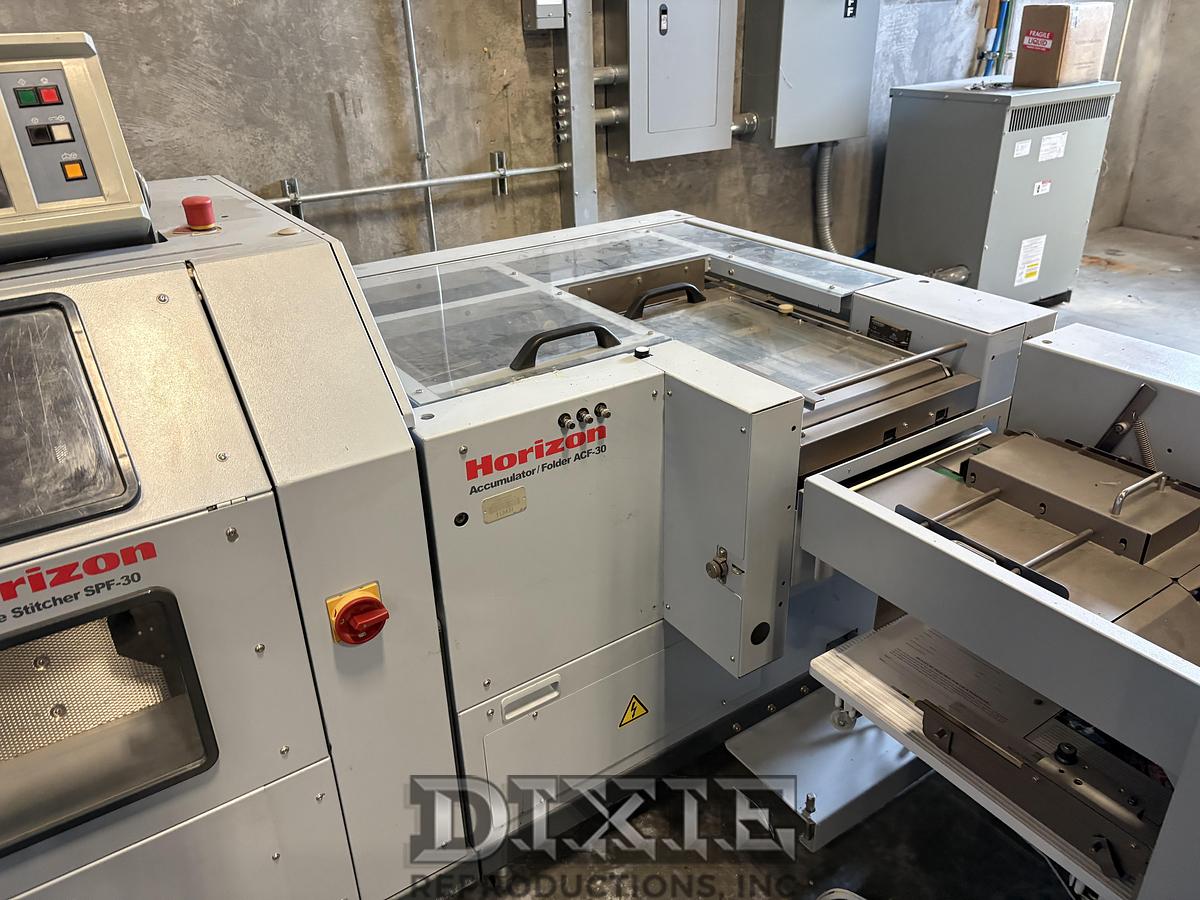

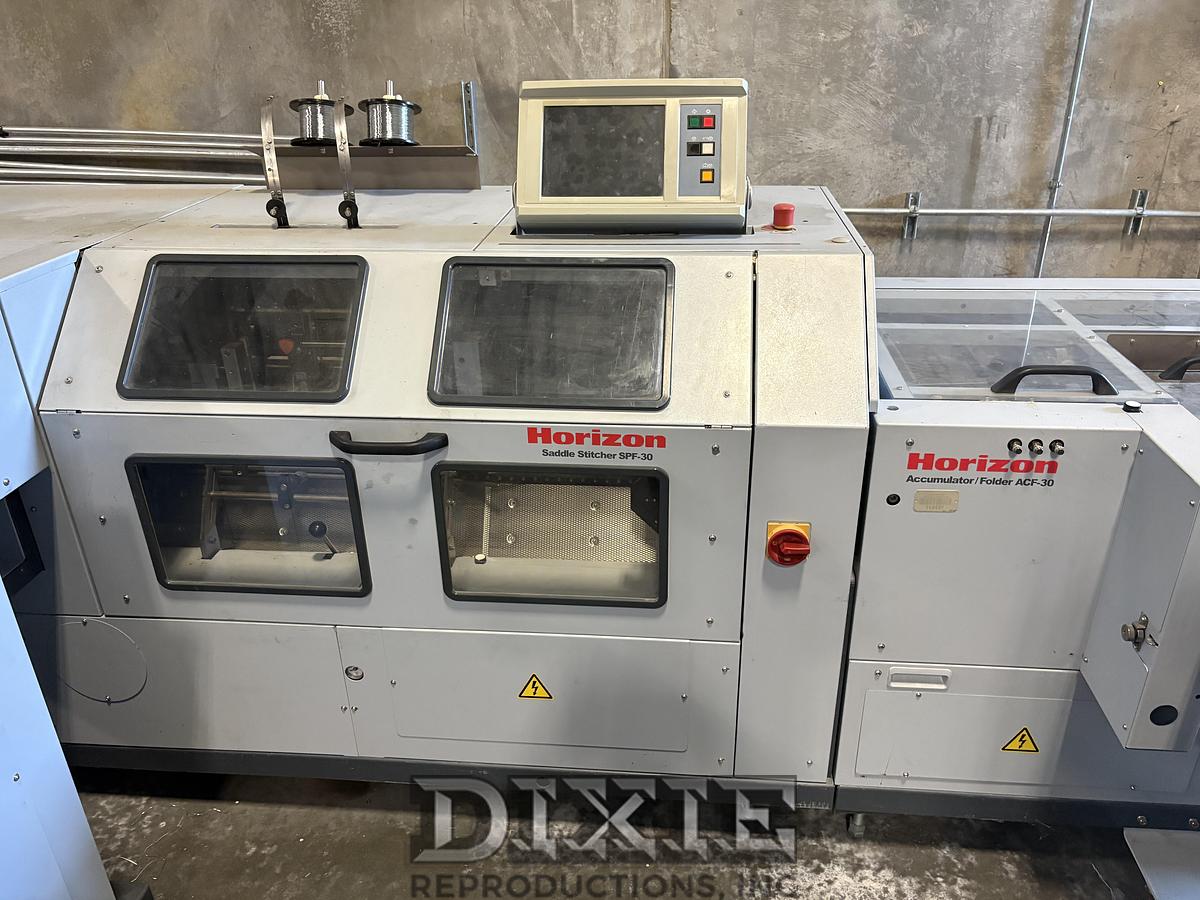

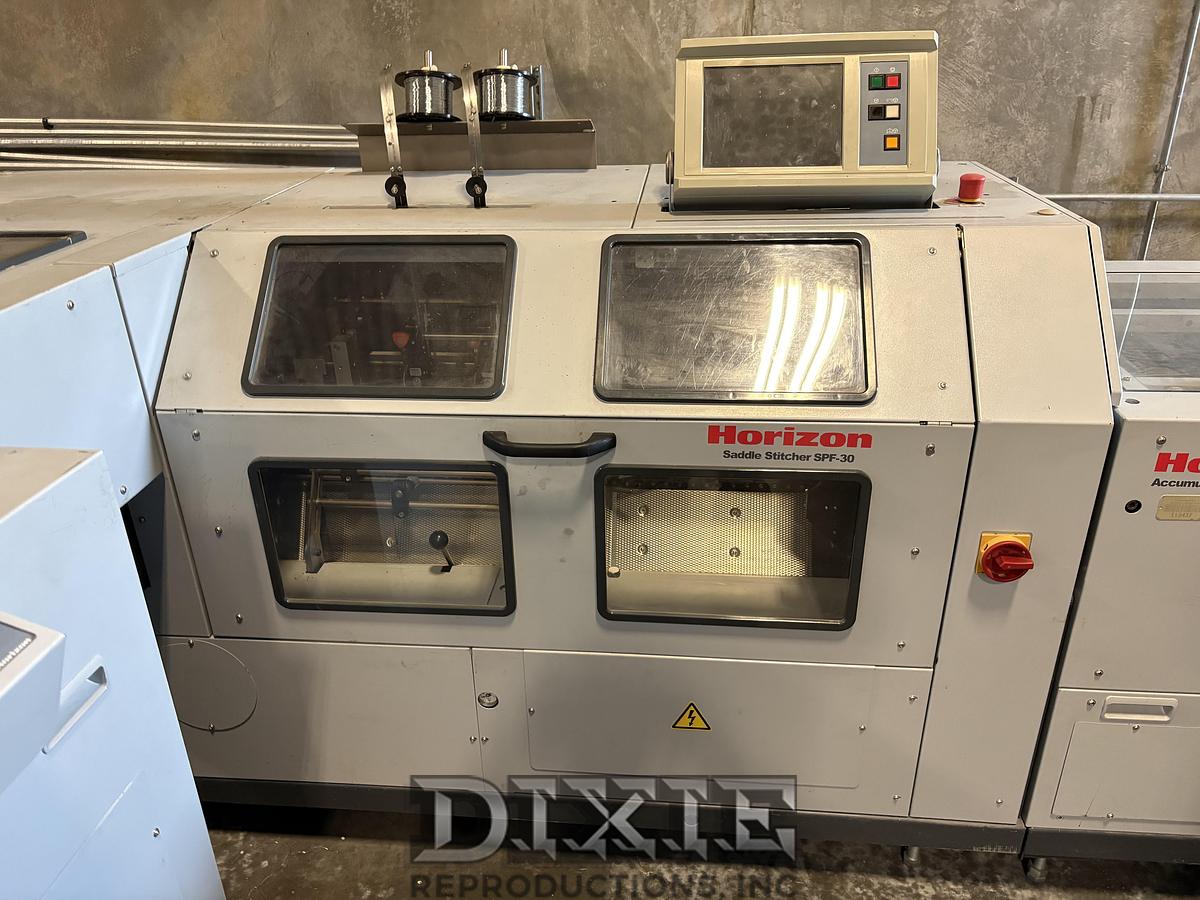

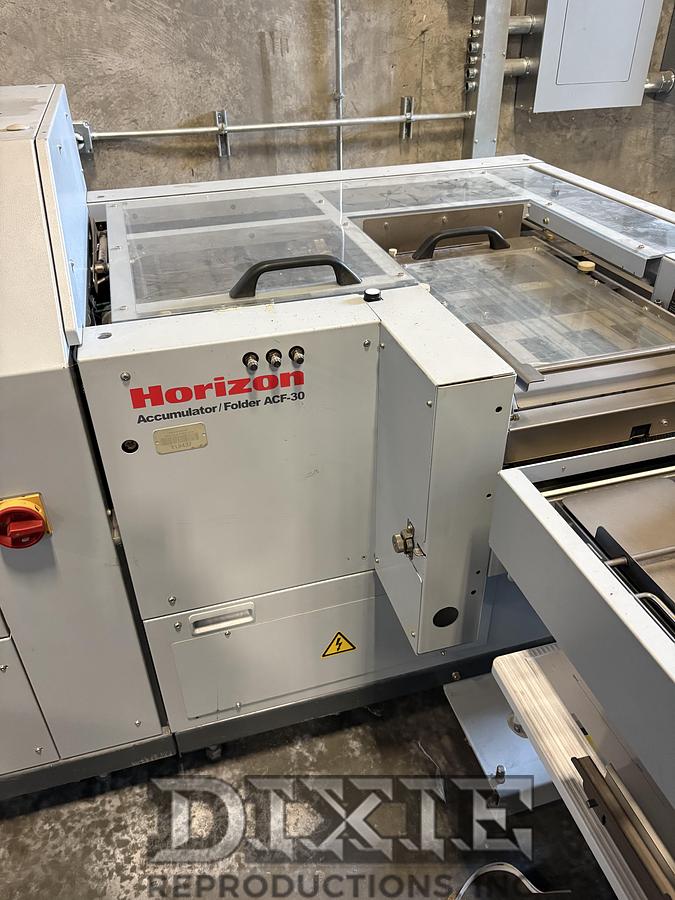

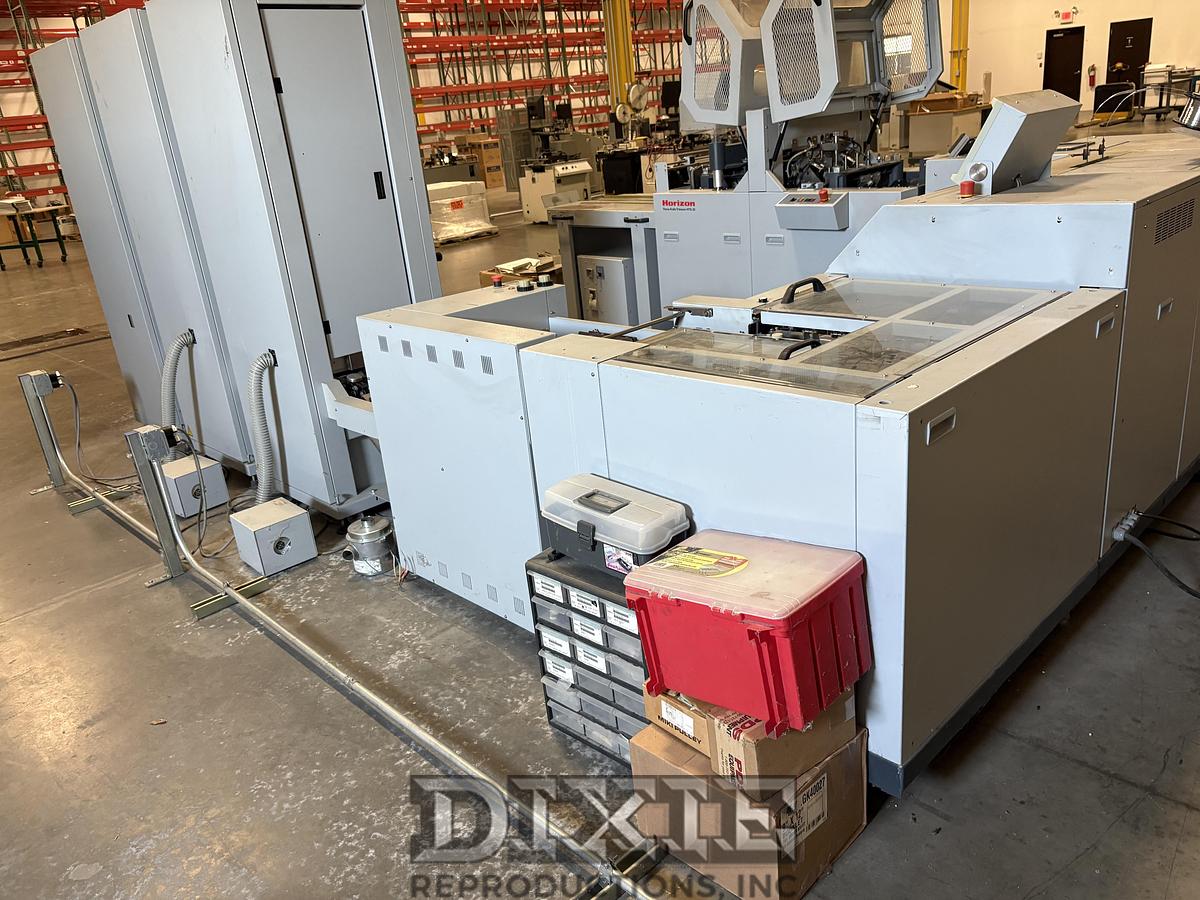

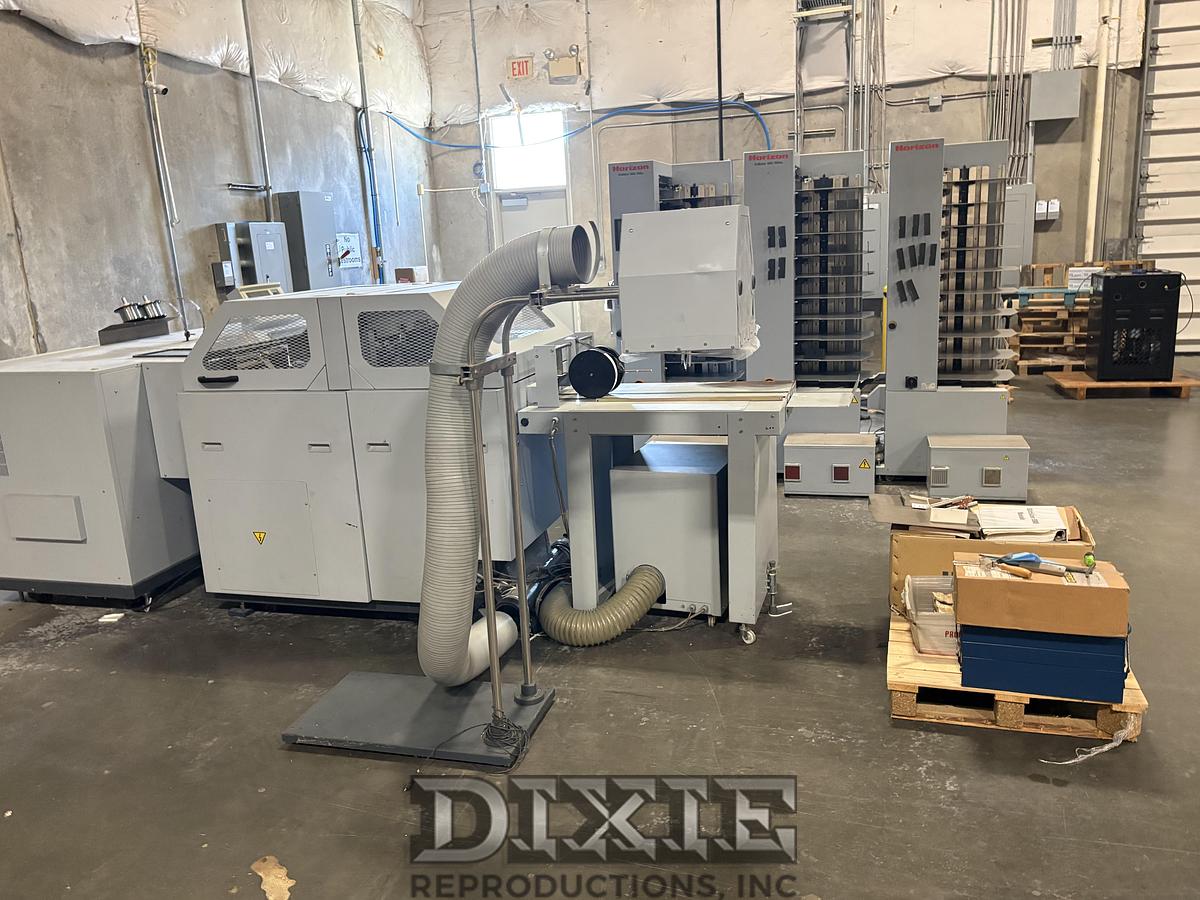

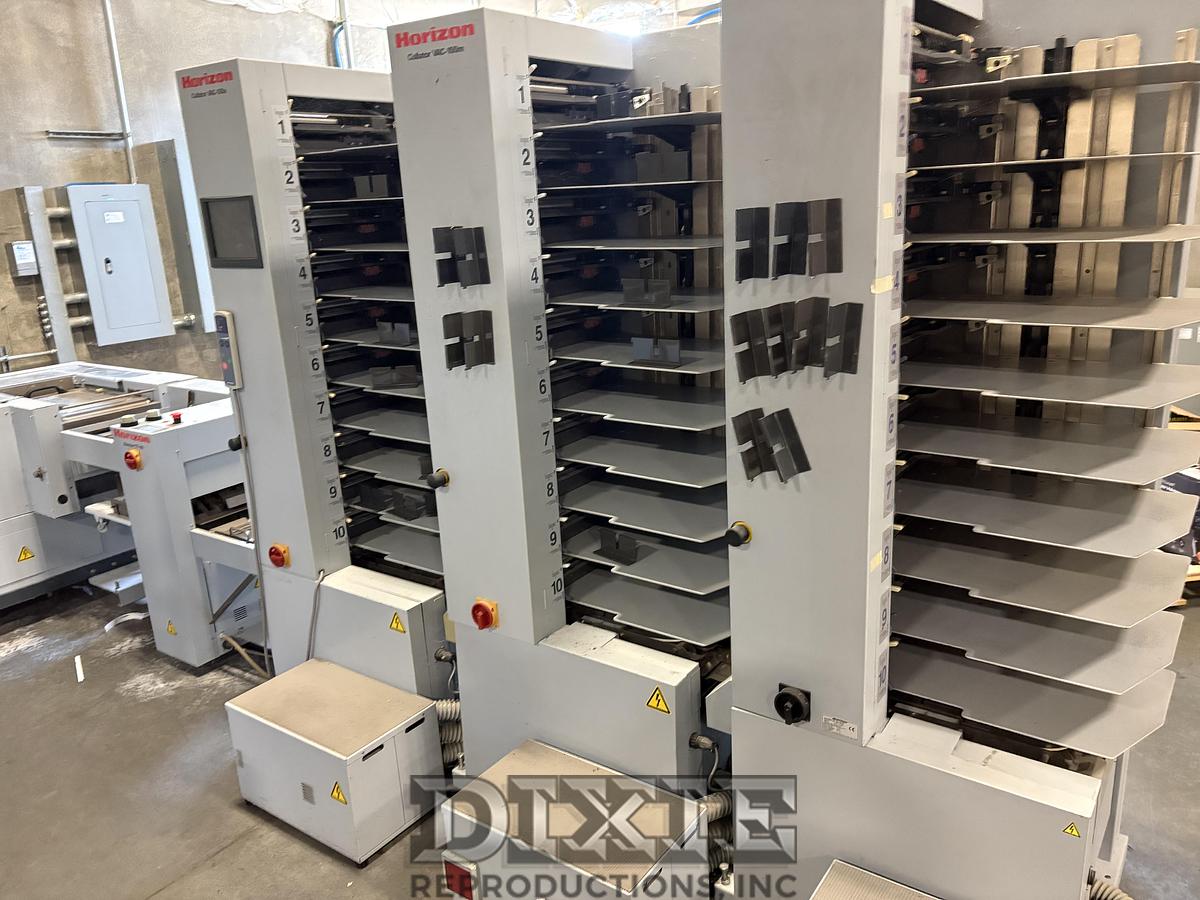

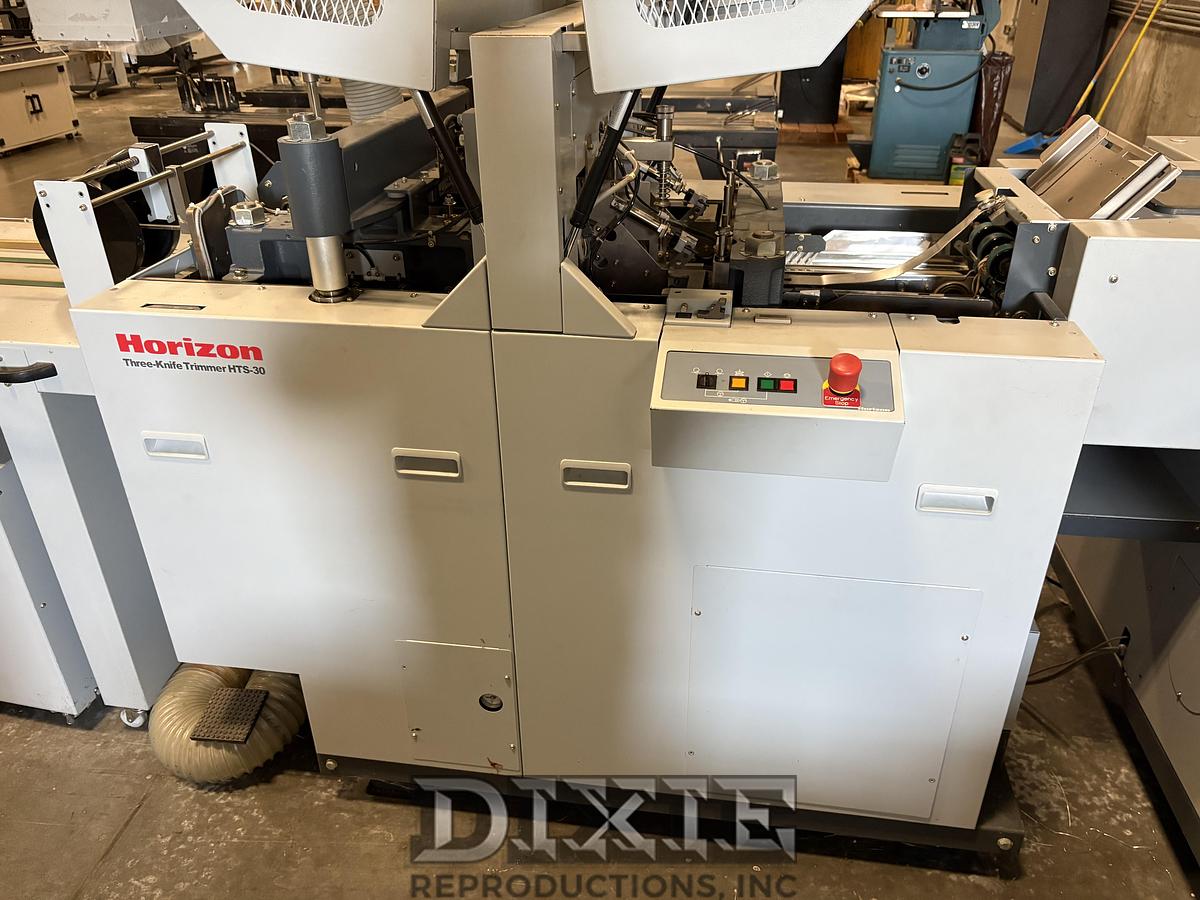

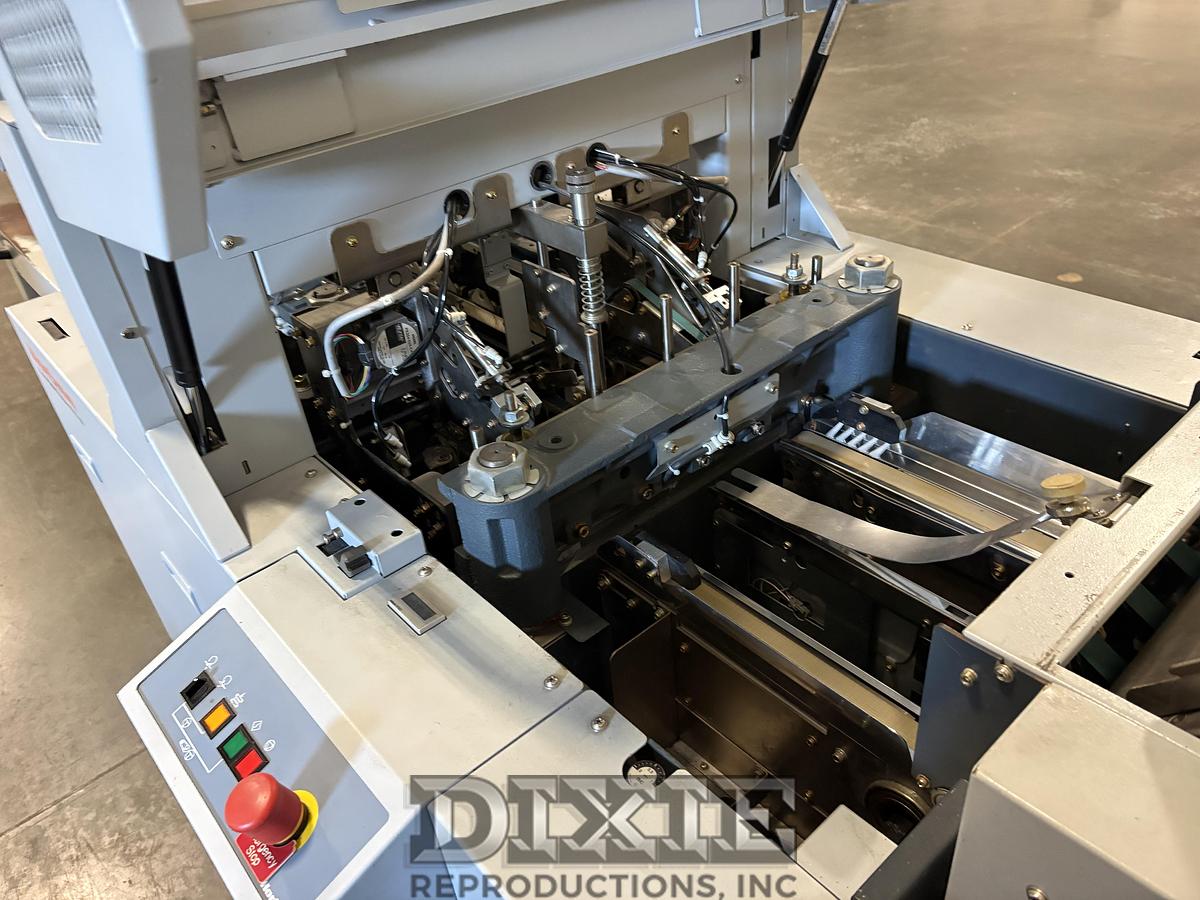

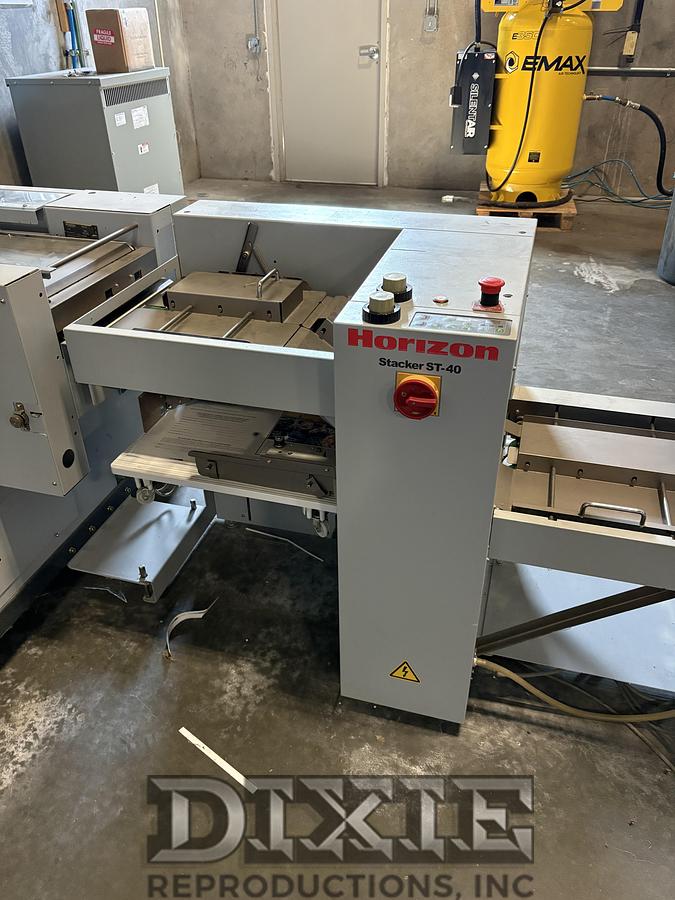

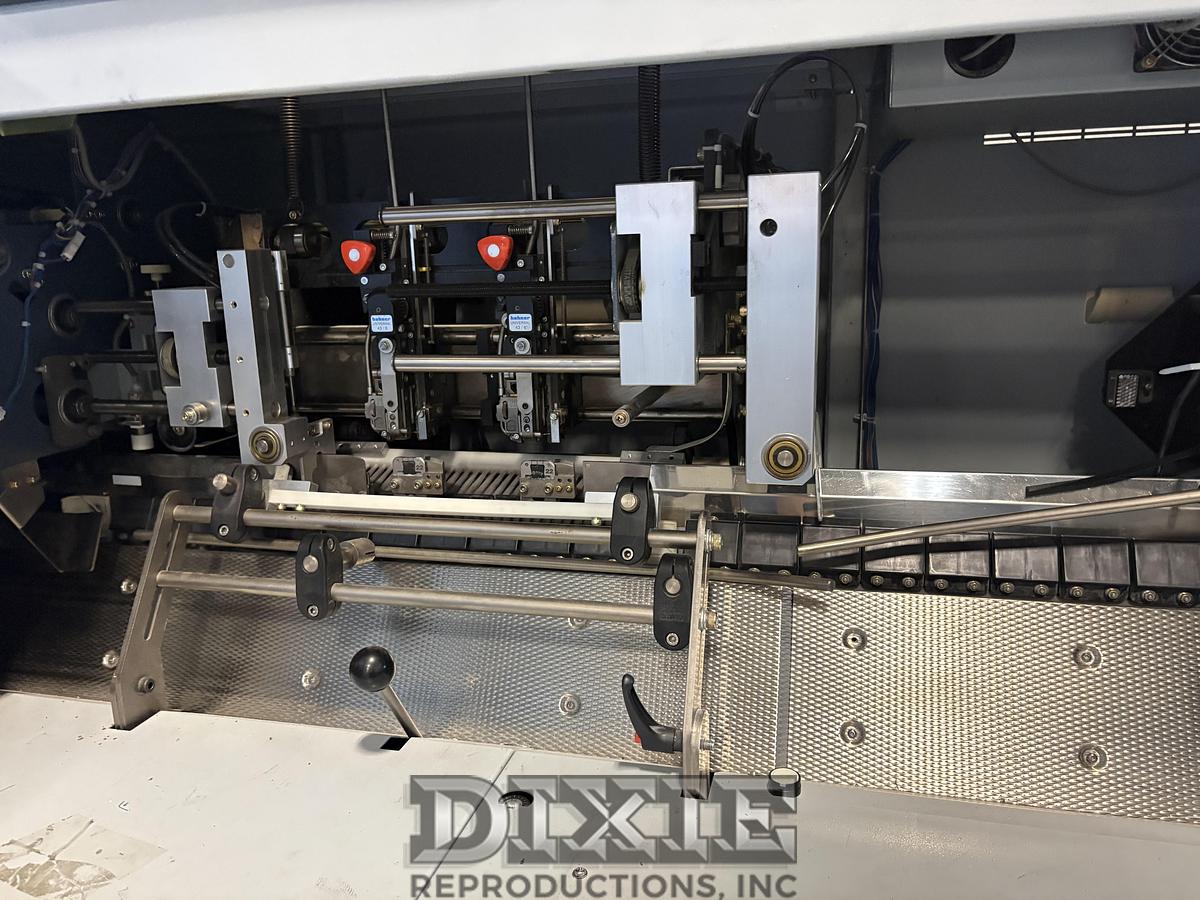

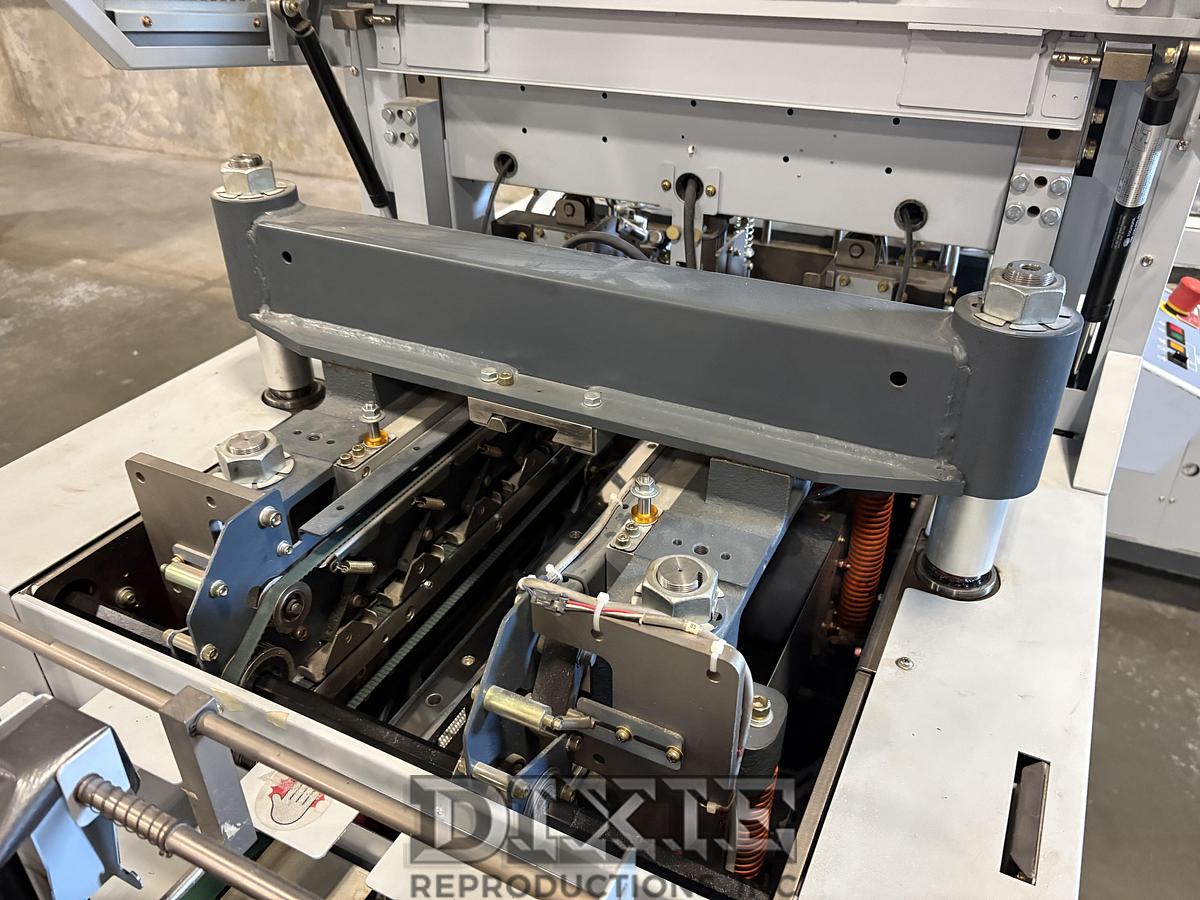

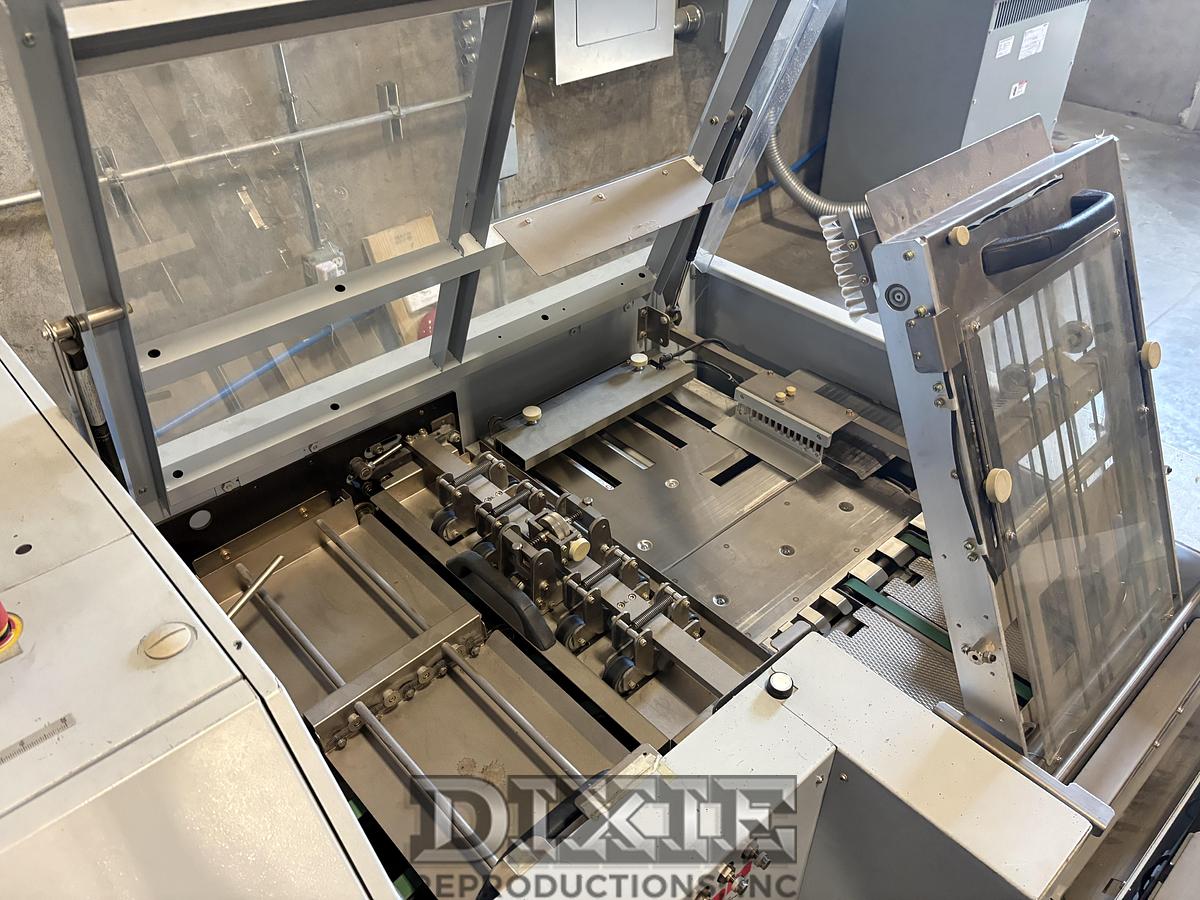

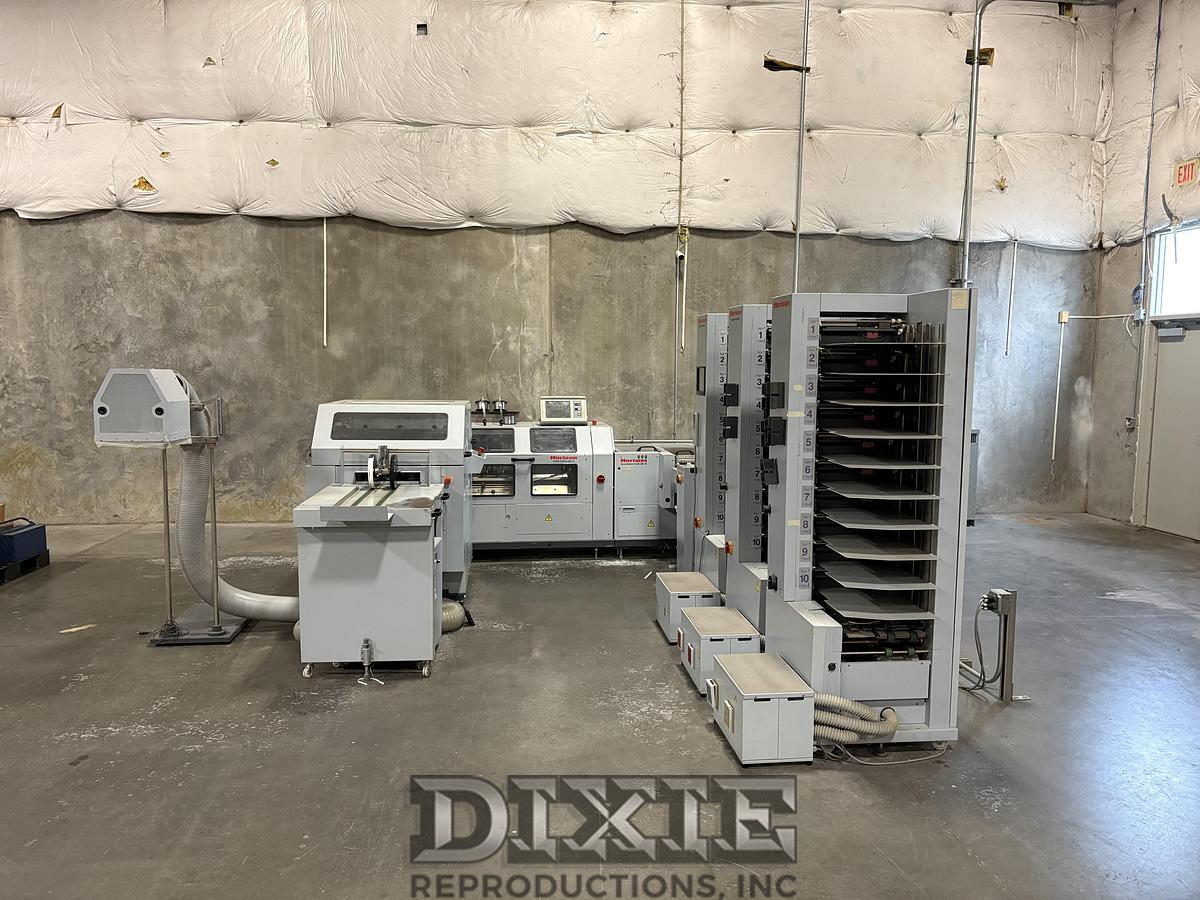

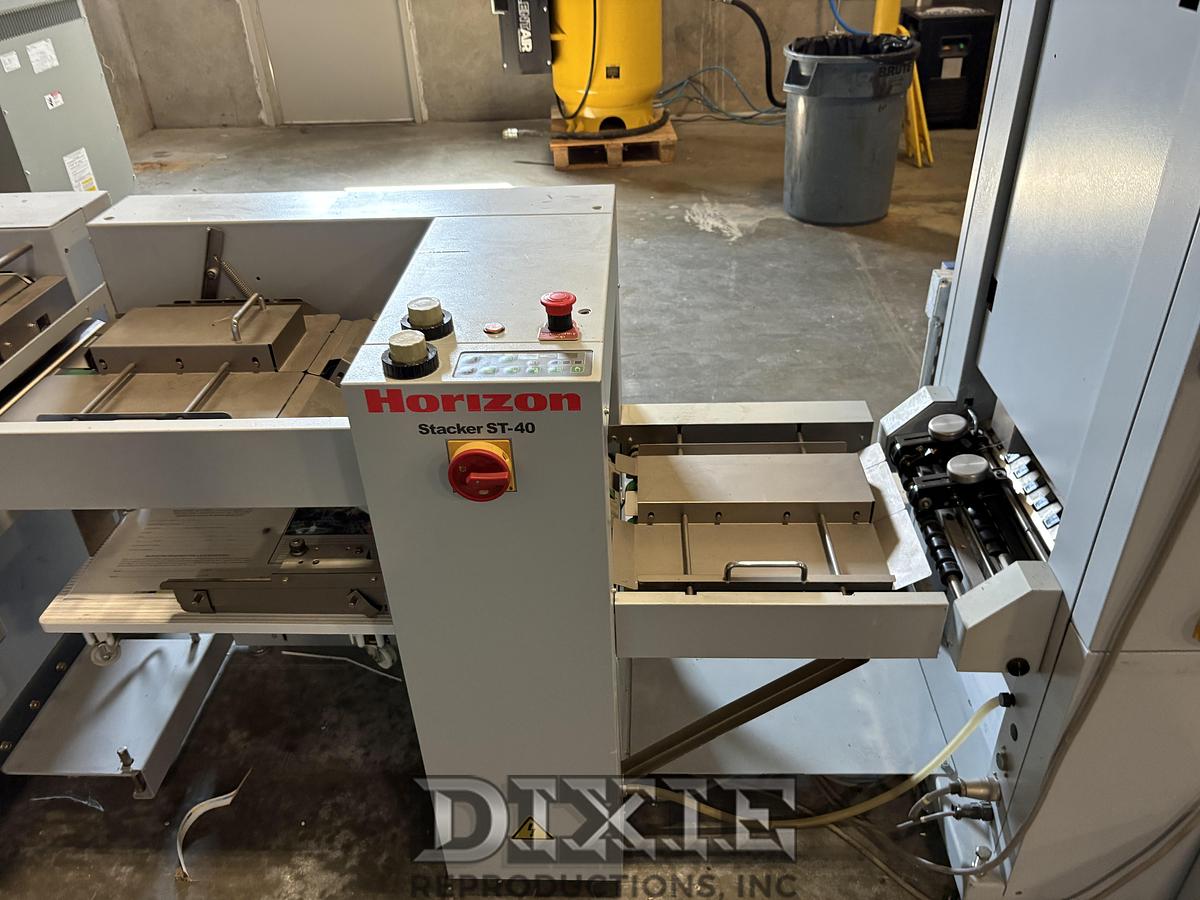

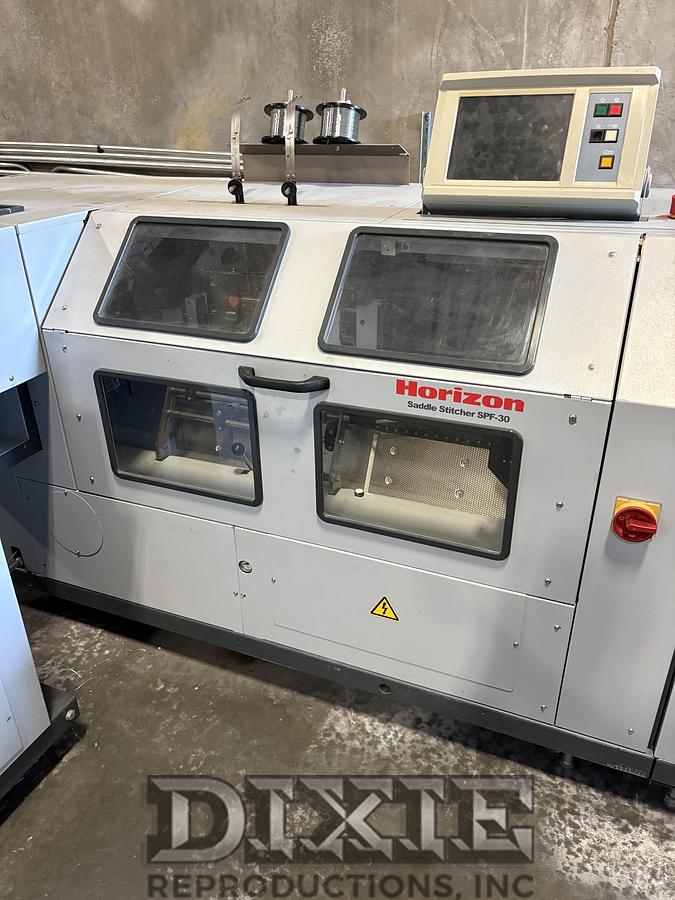

 - Includes: 3× VAC-100 collating towers (30 bins), ST-40 stacker, ACF-30 accumulator / score / fold, SPF-30 stitcher, HTS-30 three-knife trimmer, exit conveyor, vacuum trim take-away, and spare parts in original packaging.

Maximum sheet size 13.77" × 19.68" (350 × 500 mm)

Minimum sheet size 5.52" × 7.84" (140 × 199 mm)

Maximum booklet before trim 13.77" × 9.84" (350 × 250 mm)

Minimum booklet before trim 5.52" × 3.90" (140 × 102 mm)

Maximum finished booklet Approx. 13.38" × 9.05" (340 × 230 mm)

Paper weight – normal 64–210 gsm

Paper weight – coated80–210 gsm

Maximum stitch thickness 5 mm / 0.19"

Maximum booklet thickness Approx. 10 mm / 0.39"

Capacity Up to approximately 50 sheets of 80 gsm

Production speed Up to 5,500 booklets/hour

Standard stitch heads 2

Stitch distance 2.60"–5.90" (66–150 mm)

Stitch wire #24–#26; optional #26–#28

Feeding Air-suction collating

Operation Automated setup with color touchscreen
