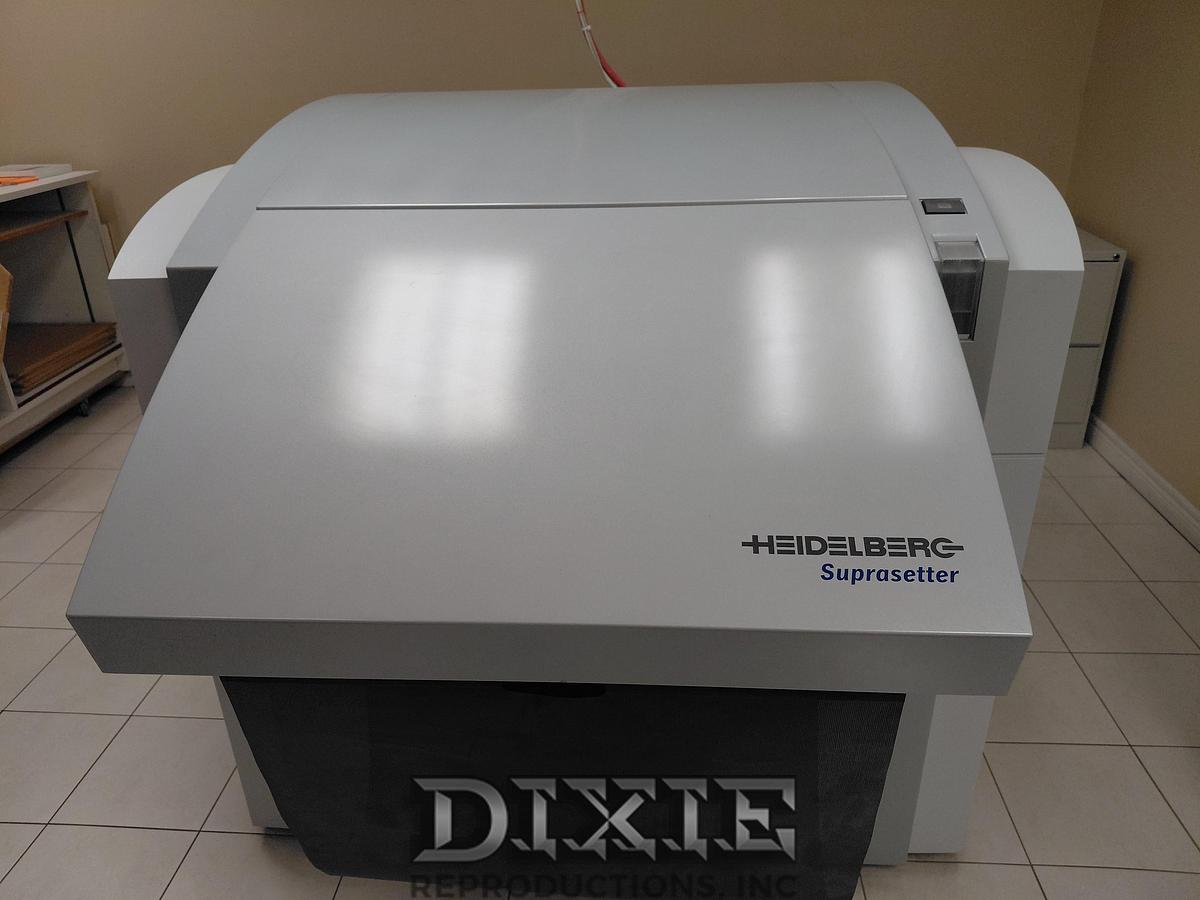

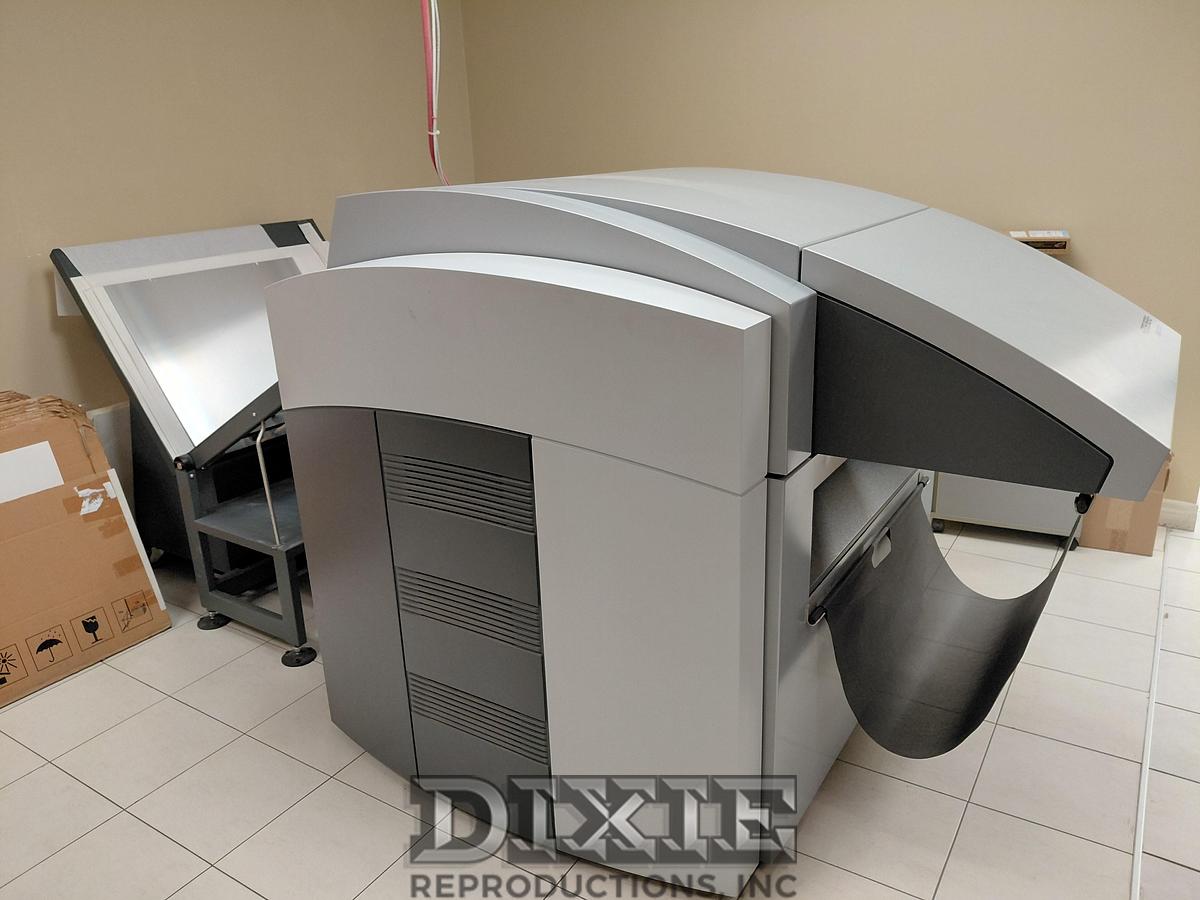

2007 Heidelberg Supra Setter CTP

29" CTP with Printergy RIP. Has been maintained under Hdbg. service until April 2026.

Model SupraSetter A74

Year 2007

Type Thermal Computer-to-Plate (CTP)

Recording system External drum

Laser technology Thermal, approximately 830 nm

Laser configuration Commonly 64 laser diodes on this generation

Maximum plate size Approx. 670 × 750/760 mm — 26.4" × 29.5/29.9"

Minimum plate size 240 × 240 mm — 9.45" × 9.45" on standard A74 configurations

Maximum imaging area Approx. 656/668 × 750/760 mm, configuration dependent

Plate thickness 0.15–0.30 mm — .006"–.012"

Resolution 2,400 or 2,540 dpi, depending on configuration

Productivity Typically approximately 14–22 plates/hour, depending on laser/output configuration and plate size

Plate type Thermal aluminum offset plates

Plate handling Manual/semi-automatic standard; automatic loading was optional

Internal punching Optional; Bacher 425 mm punch is found on equipped A74s

RIP/Workflow Kodak Prinergy RIP

Machine dimensions Approx. 61" L × 48" W × 53" H (1,550 × 1,218 × 1,350 mm)
