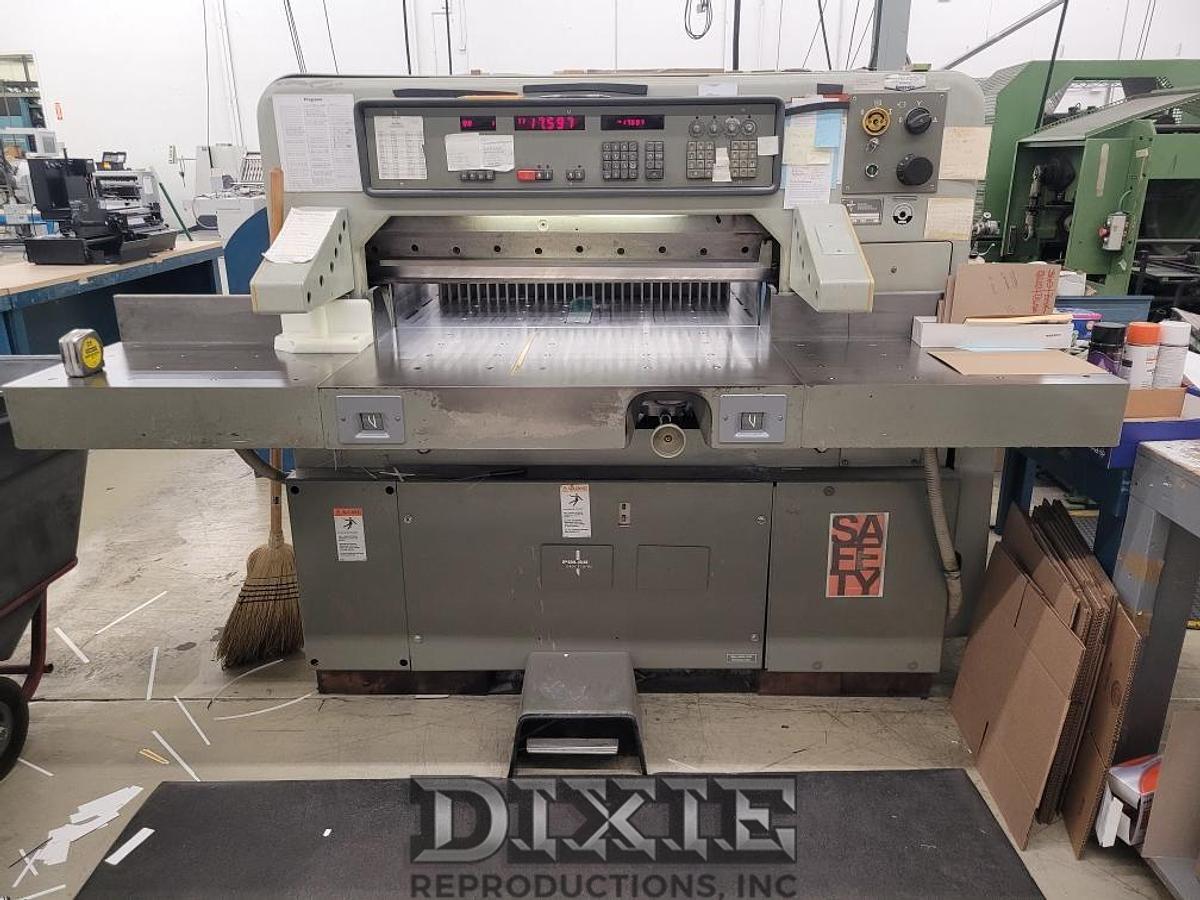

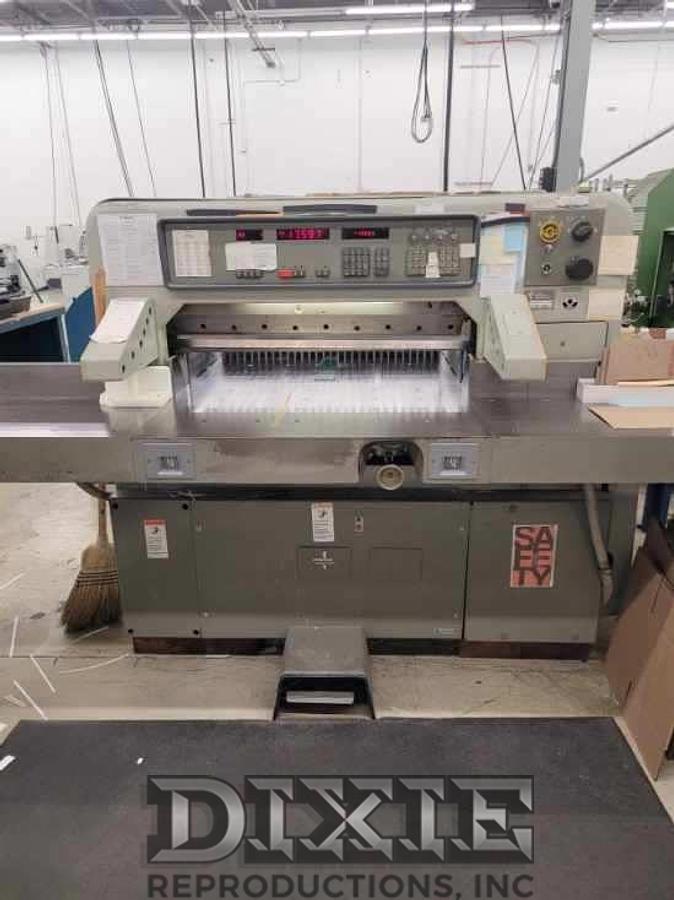

1985 Polar 92 EMC

Manufacturer Polar-Mohr

Model 92 EMC

Year 1985

Maximum cutting width 36.2" / 920 mm

Maximum cutting depth 36.2" / 920 mm

Maximum pile/cutting height Approx. 4.3–4.7" / 110–120 mm

Minimum cut Approx. 0.8" / 20 mm without false clamp

Minimum cut with false clamp Approx. 3.5" / 90 mm

Clamp pressure 330–6,600 lbs.

Main motor Approx. 3 kW / 4.1 HP

Electrical Typically, 220–235 V, 3-phase, 60 Hz in U.S. configuration

Air table Yes

Side tables Left & right

Safety Infrared/photoelectric light guards

Programming EMC programmable electronic back gauge: many versions have 99-program memory
