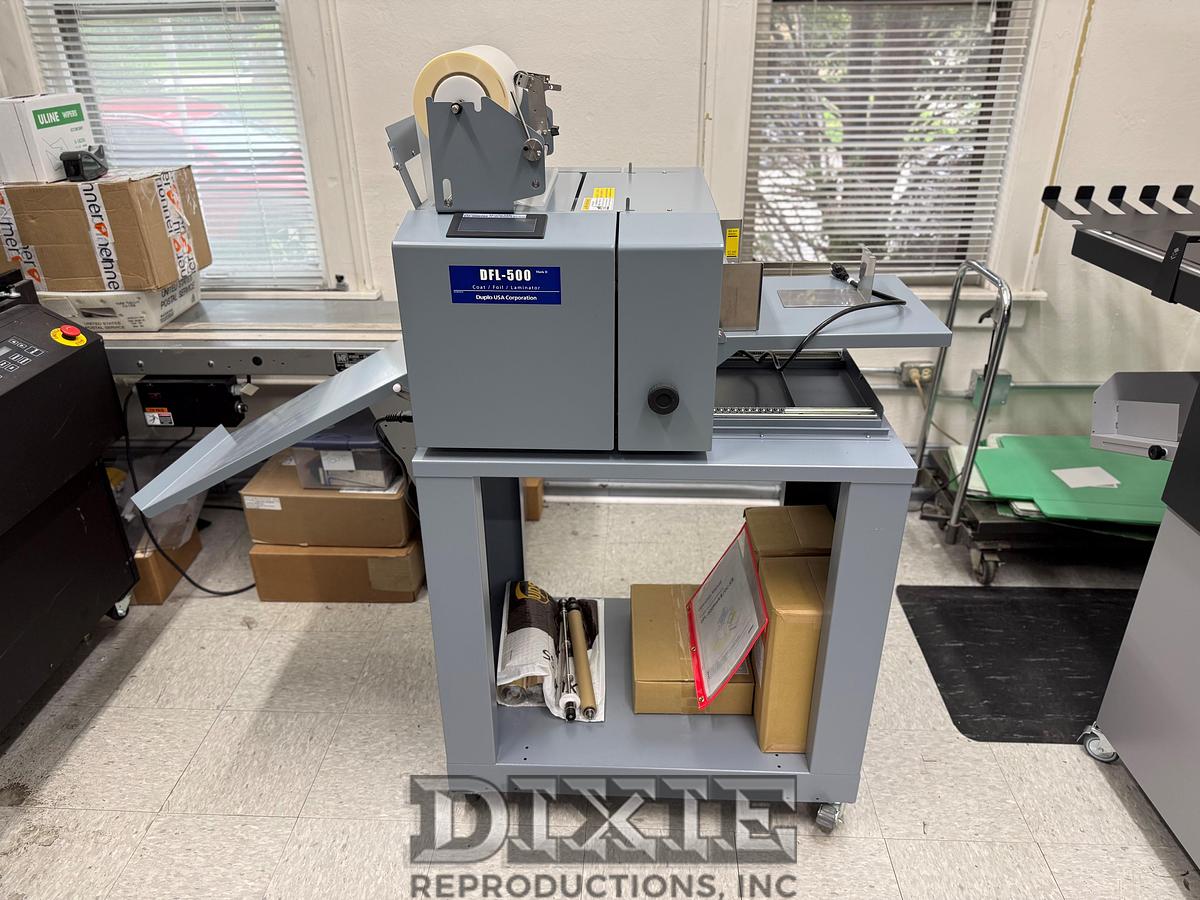

2024 Duplo DFL 500 Coat/Foil/Laminate

Duplo DFL-500 Mark II Specifications

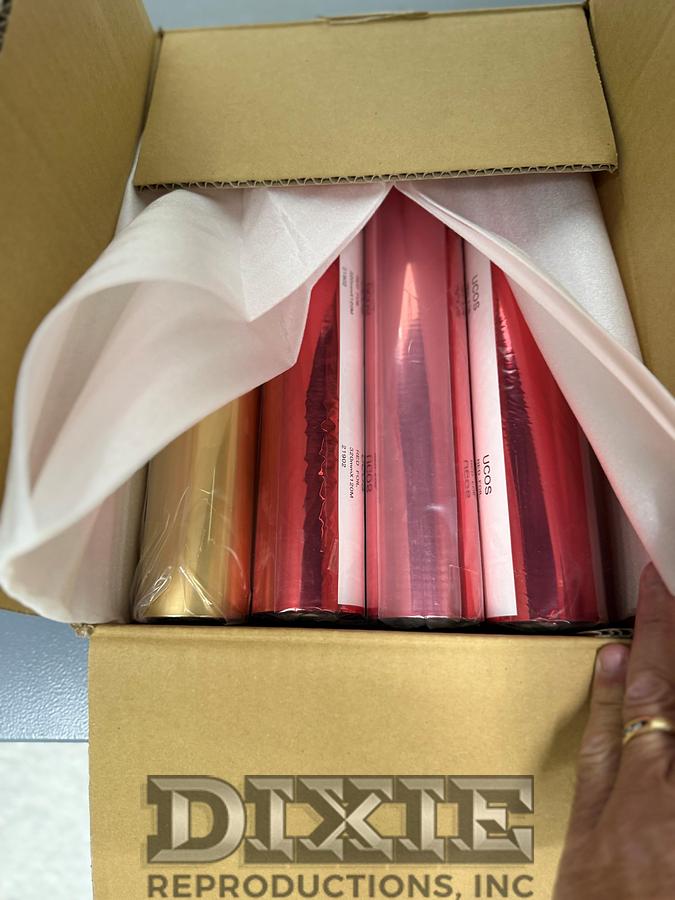

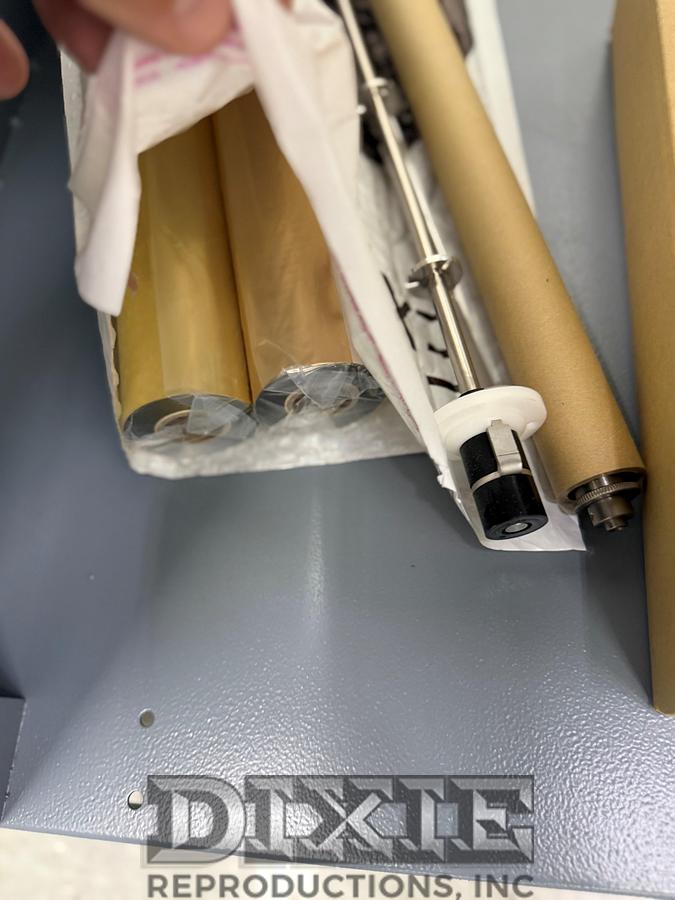

* Includes several rolls of laminate and foil. Extremely clean machine with <1,000 sheets run through. Sheet fed. Foiling unit has never been used.

Functions Dry coating, digital foiling & laminating

Maximum sheet size13" × 24"

Minimum sheet – Lamination 8.3" × 11.7"

Minimum sheet – Foiling5.8" × 8.3"

Maximum film coverage width Approx. 12.6"Paper weight 110–400 gsm

Maximum speed15 sheets/minute

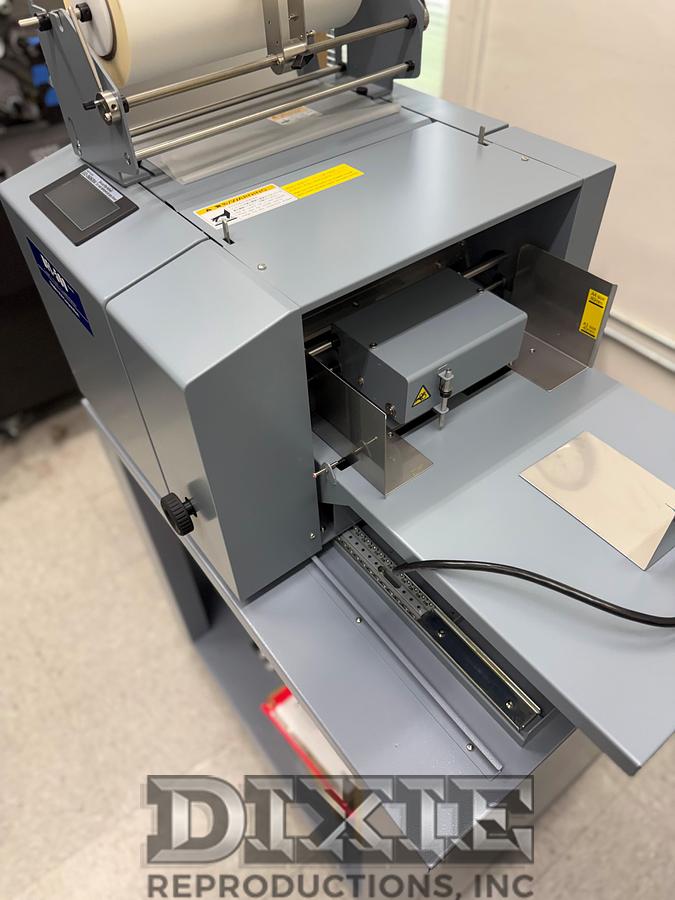

Feeder Automatic upper-belt air-suction feeder

Feeder capacity Approx. 2.5"

Lamination Single-sided thermal

Films Gloss, matte and compatible specialty films

Foiling Toner-reactive foil; no traditional foil-stamping die required

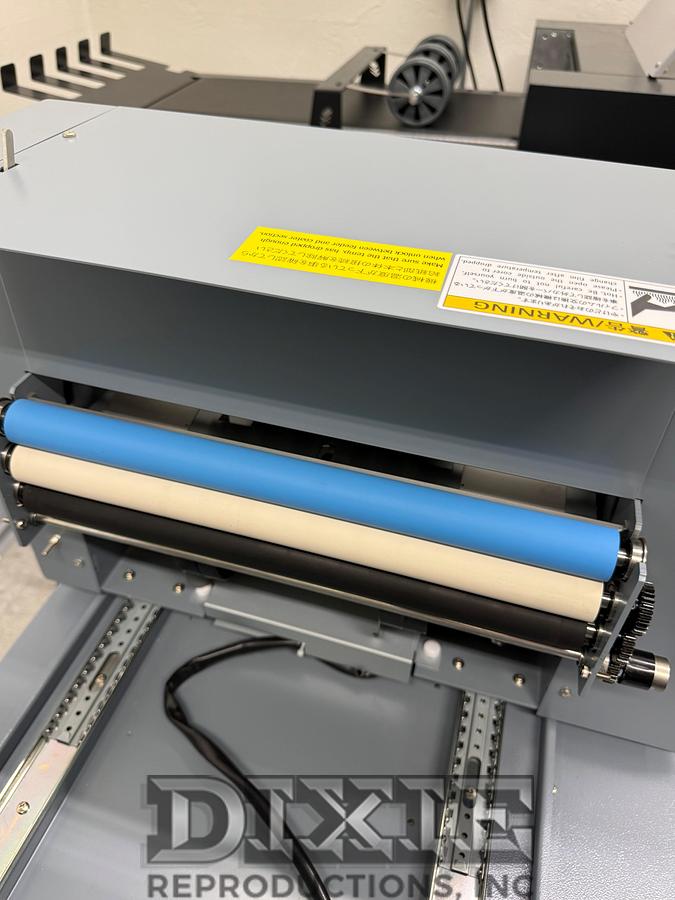

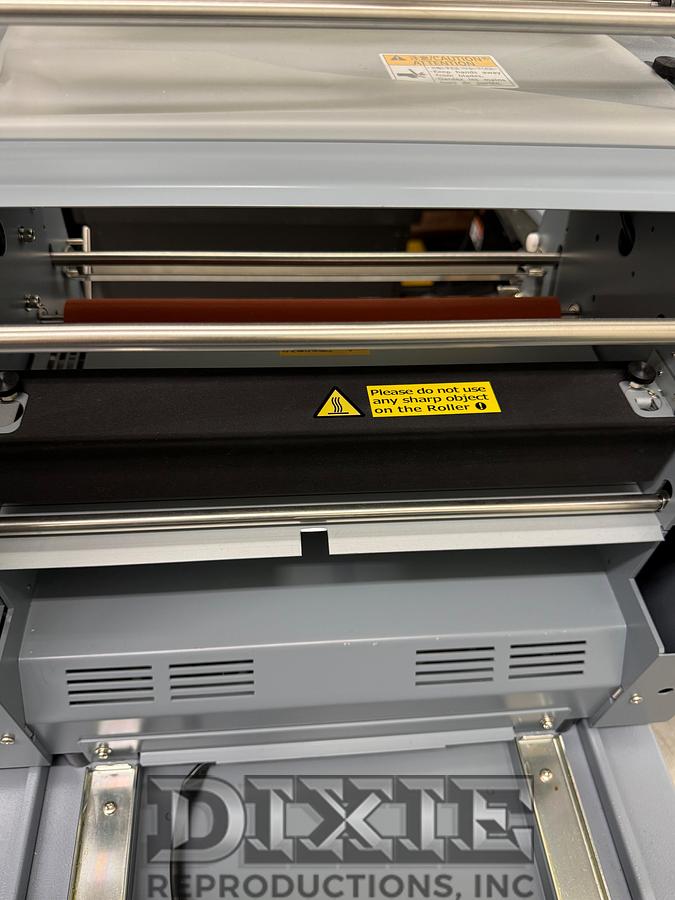

Heating system Ceramic/thermal heat roller

Temperature range194–320°F

Warm-up Approx. 4 minutes

Sheet separation Automatic film slitting/cutting system

De-curling Standard

Dust removal Standard

Net weight 137 lb. / 62.1 kg

Power 110–120 VAC, 50/60 Hz, 8A
