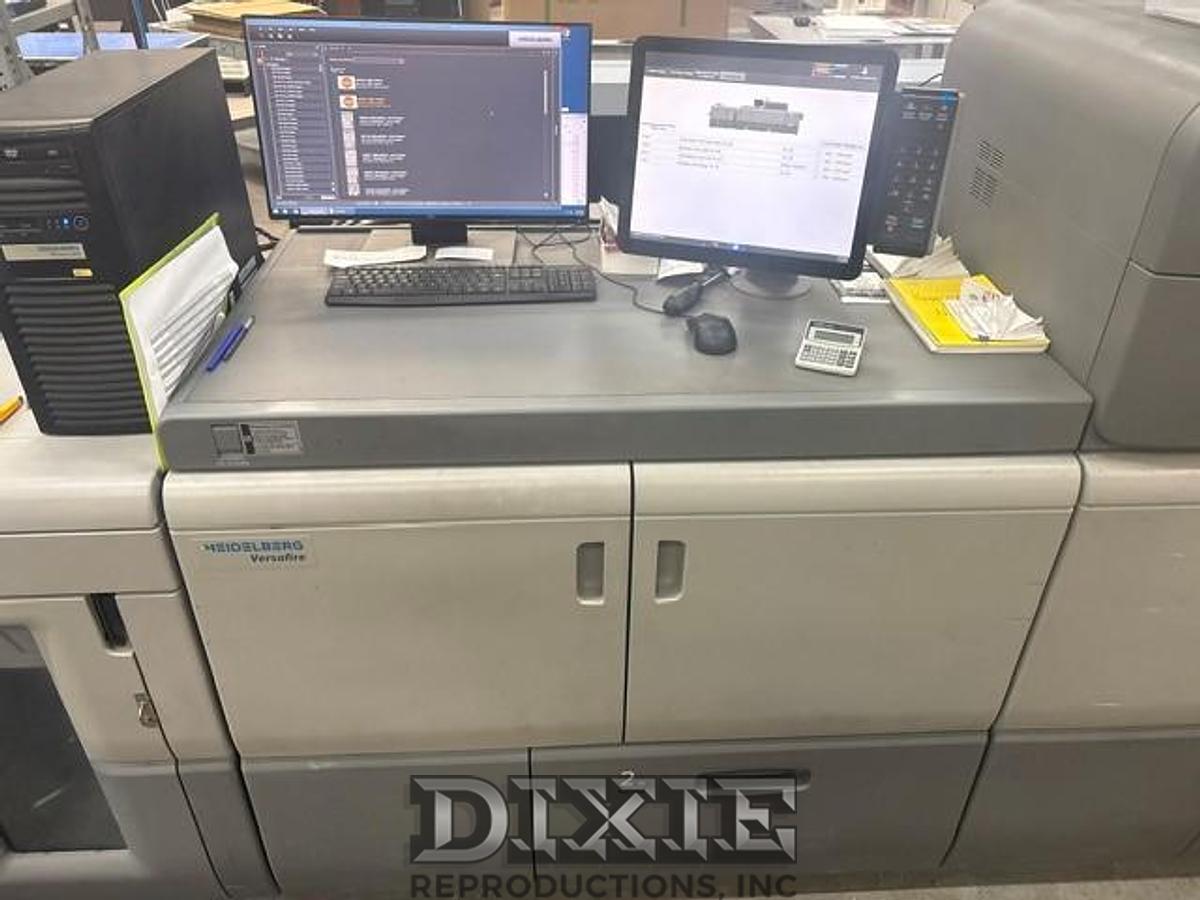

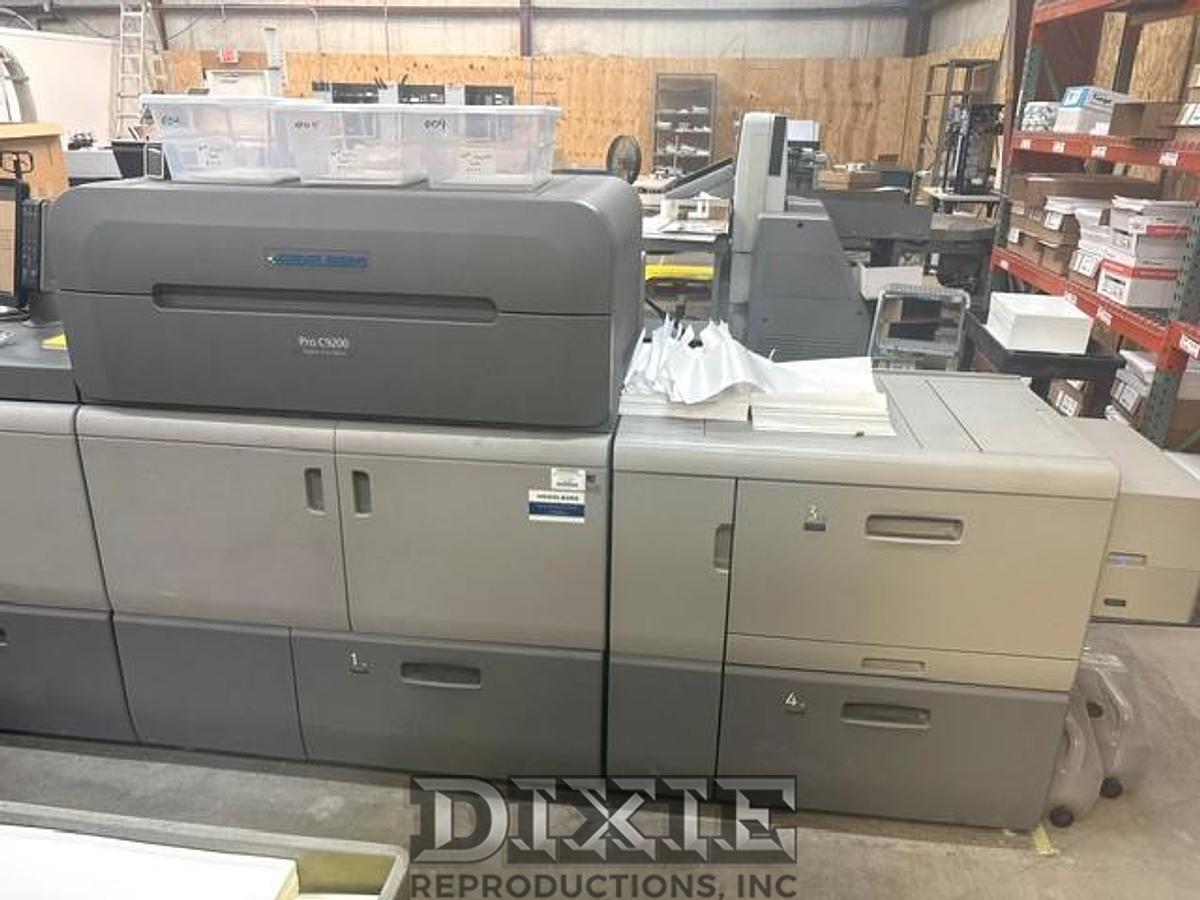

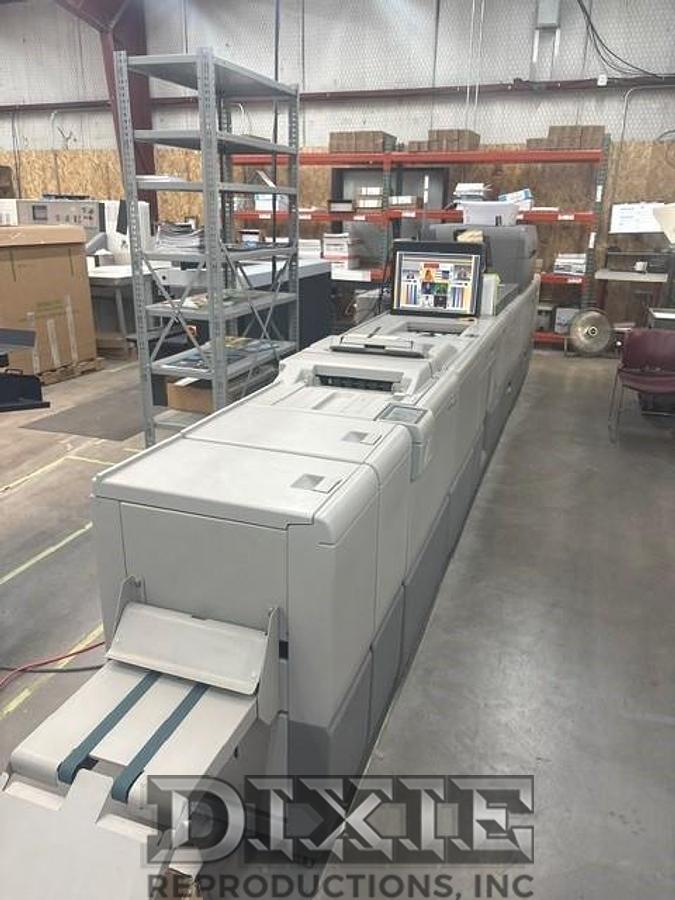

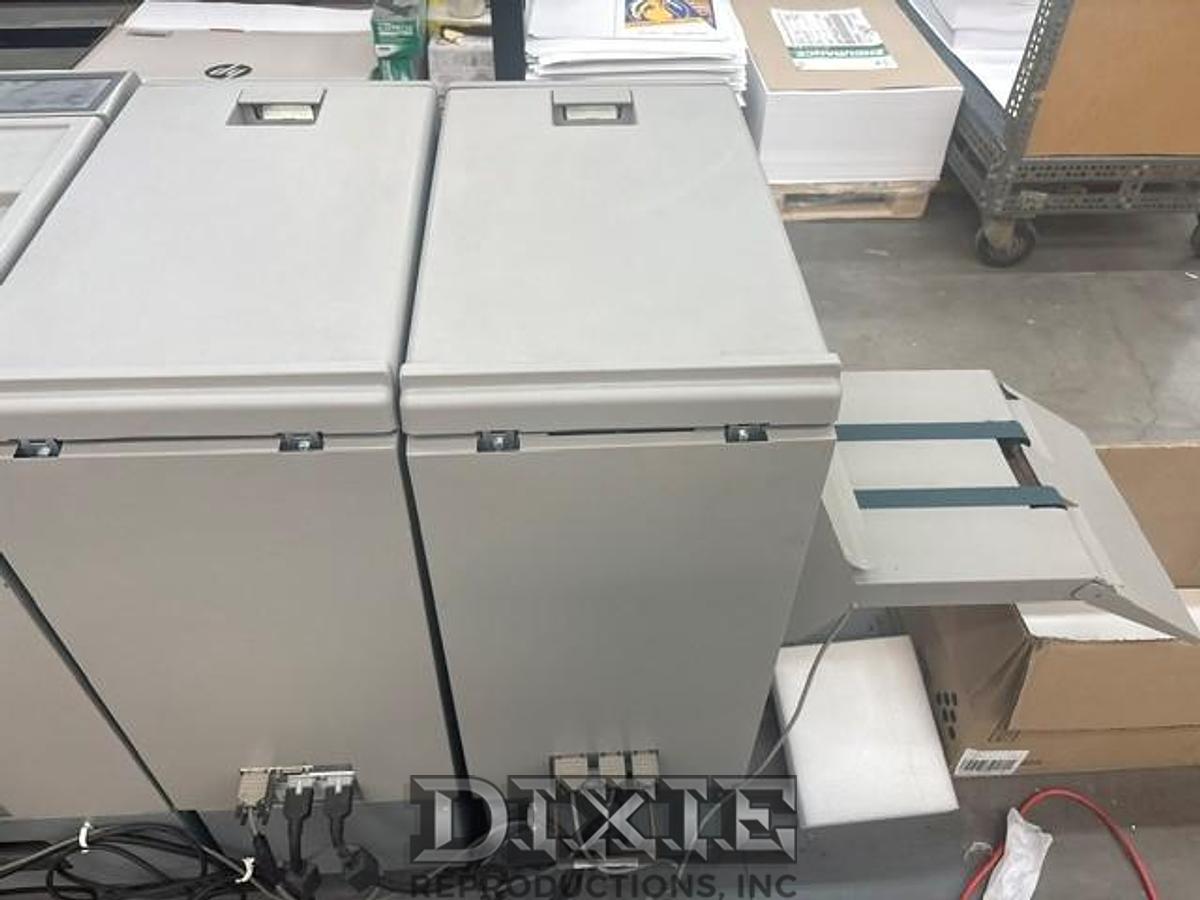

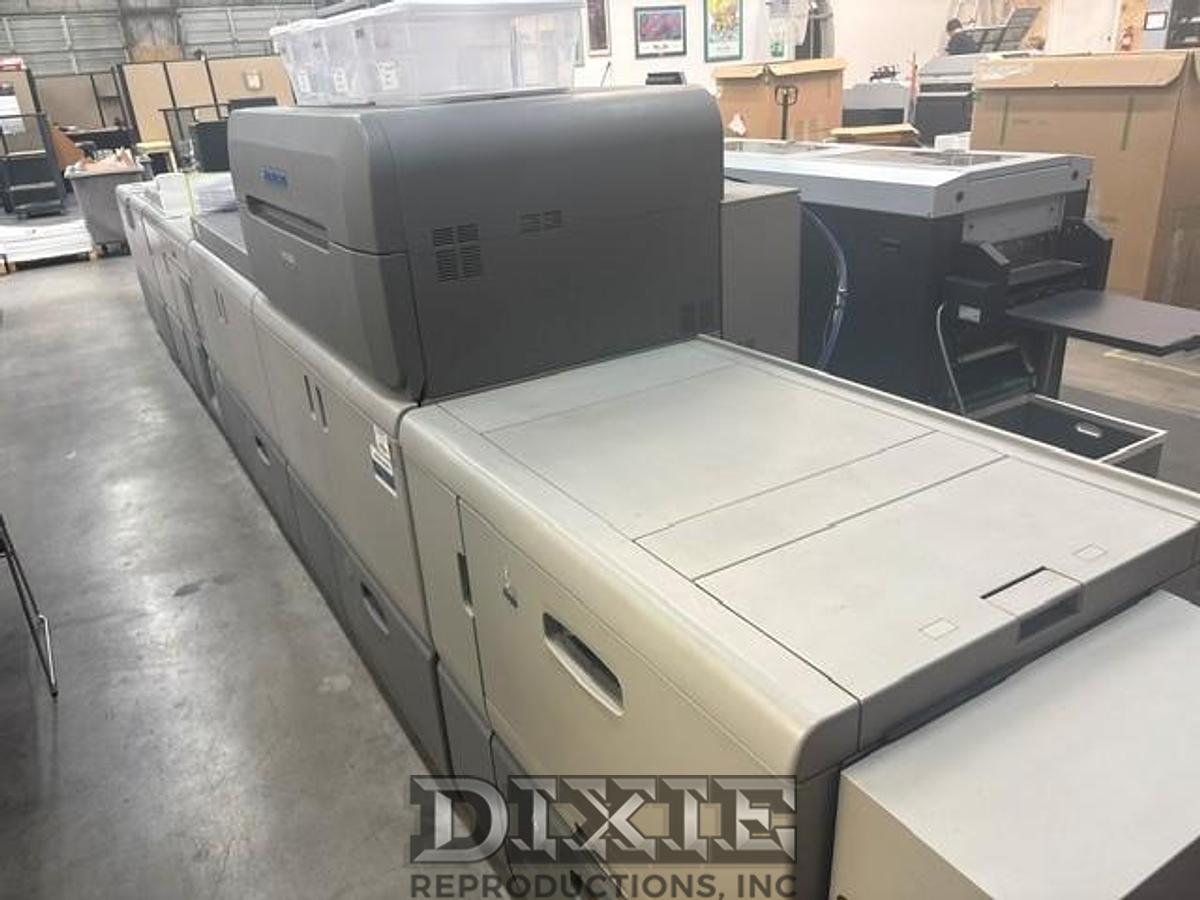

2019 Heidelberg Versa Fire Pro C9200

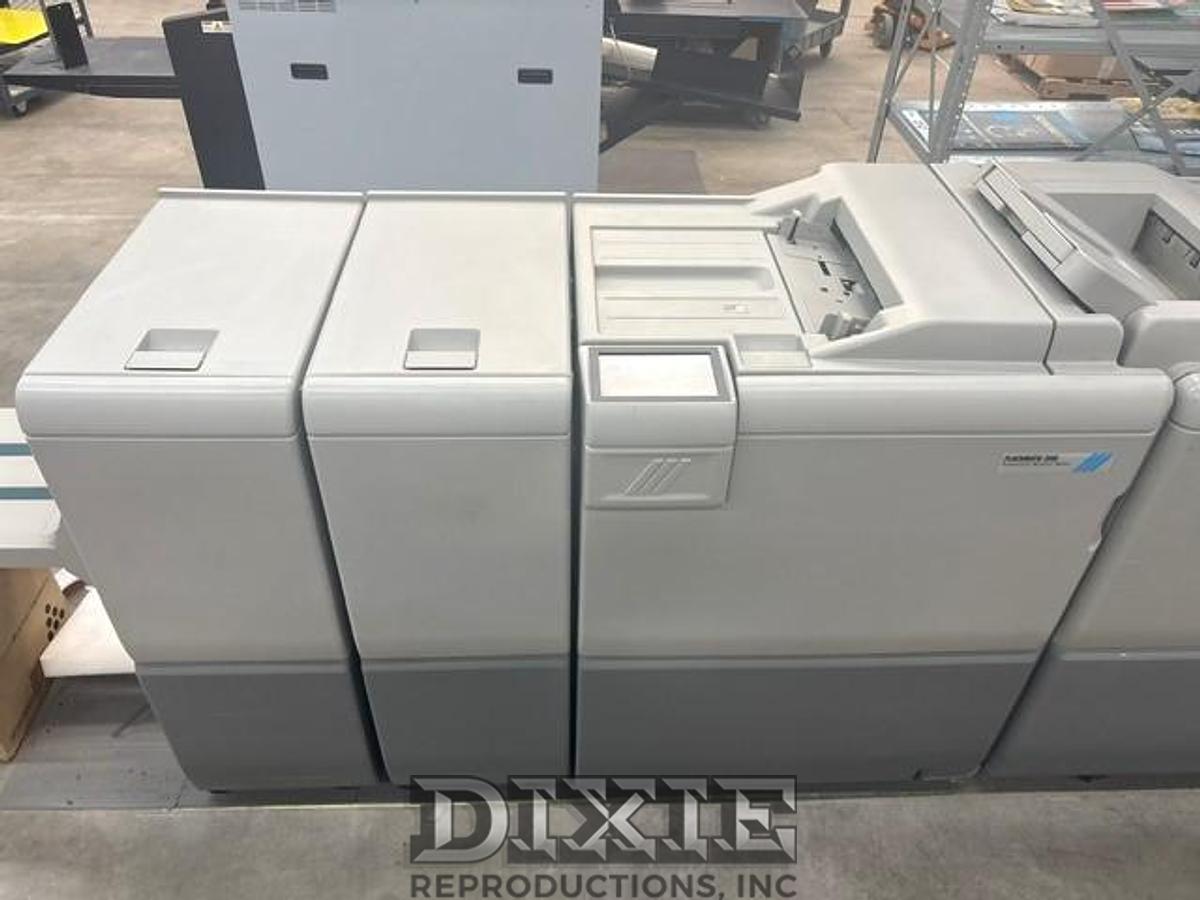

2019 Heidelberg Versa Fire Pro C9200 + Plockmatic 350 Bookletmaker + PBM TR Trimmer

Manufacturer Heidelberg

Model Versafire Pro C9200

Year 2019

Print Technology 4-drum dry electrostatic laser imaging

Resolution 2,400 × 4,800 dpi

Print Speed115 letter/A4 pages per minute

Monthly Duty Cycle Up to 1,000,000 impressions (recommended substantially lower for best performance)

Warm-Up Time Under 9 minutes

First Print Time Approximately 7–8 seconds (depending on stock)

Controller Options Heidelberg Prinect Digital Frontend or EFI Fiery E-45/E-85

Color Management Heidelberg Prinect Color Management, inline calibration

Maximum Sheet Size 13 × 49.6 in. (330 × 1,260 mm) simplex

Maximum Duplex Size 13 × 40.5 in. (330 × 1,030 mm)

Minimum Sheet Size 3.9 × 5.5 in. (100 × 140 mm)

Paper Weight 40–470 gsm

Maximum Image Area Approximately 12.7 × 49.2 in.

Media Types Coated, uncoated, textured, synthetic, labels, magnetic stock, envelopes, tabs, metallic media, NCR, translucent stocks

Paper Capacity

• Standard capacity: Approximately 3,500 sheets
• Maximum capacity: Up to 18,100 sheets with optional large-capacity feeders
• Vacuum-fed paper transport available for difficult stocks

Print Features

• Automatic front-to-back registration
• Inline color calibration
• Automatic image density control
• Oil-less belt fusing
• High-capacity toner system
• Mixed-media job capability
• Banner sheet printing up to 49.6 inches

Optional Finishing

• Booklet maker
• Square-fold booklet unit
• Ring binder
• Perfect binder
• Multi-fold unit
• Creaser
• High-capacity stacker
• Cover interposer
• GBC inline punch
• Plockmatic booklet system

Electrical 220–240 VAC

PowerDual 32-amp circuits

Power Consumption Less than 9 kWAir

Operating Temperature 68–80°F (20–27°C)

Dimensions (W × D × H) 99.2 × 39 × 59 in. (2,520 × 990 × 1,500 mm)

Weight Approximately 2,370 lbs (1,076 kg)

• Produces 115 full-color pages per minute
• Maintains rated speed across a wide range of media weights
• Handles substrates up to 470 gsm
• Supports extra-long banner sheets up to 49.6 inches
• Tight front-to-back registration suitable for high-quality commercial printing
• Integrates with Heidelberg's Prinect workflow for hybrid offset/digital production.
•
