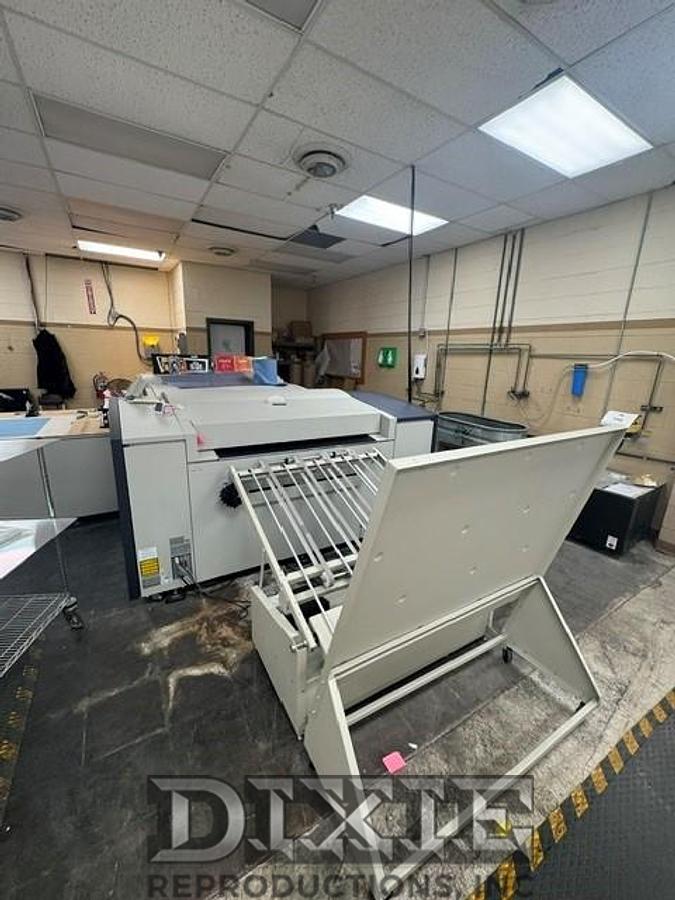

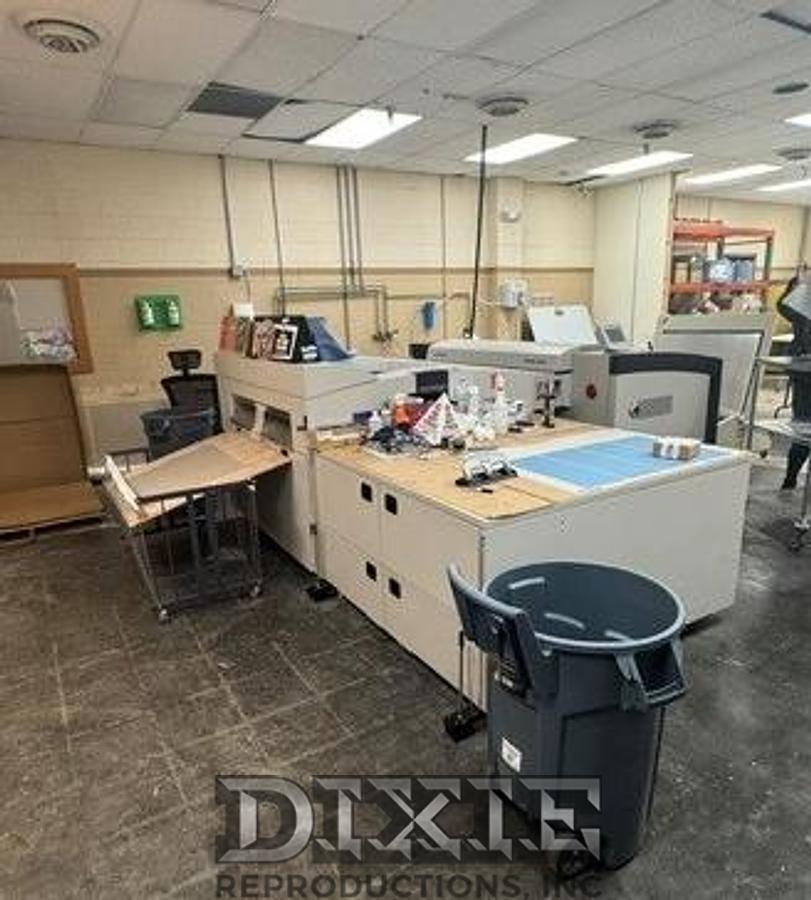

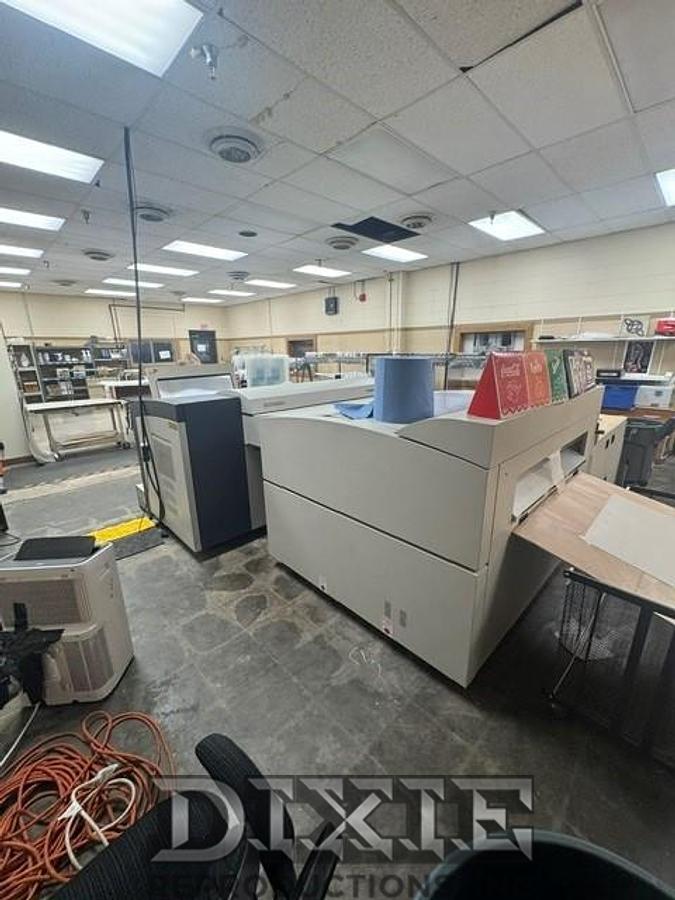

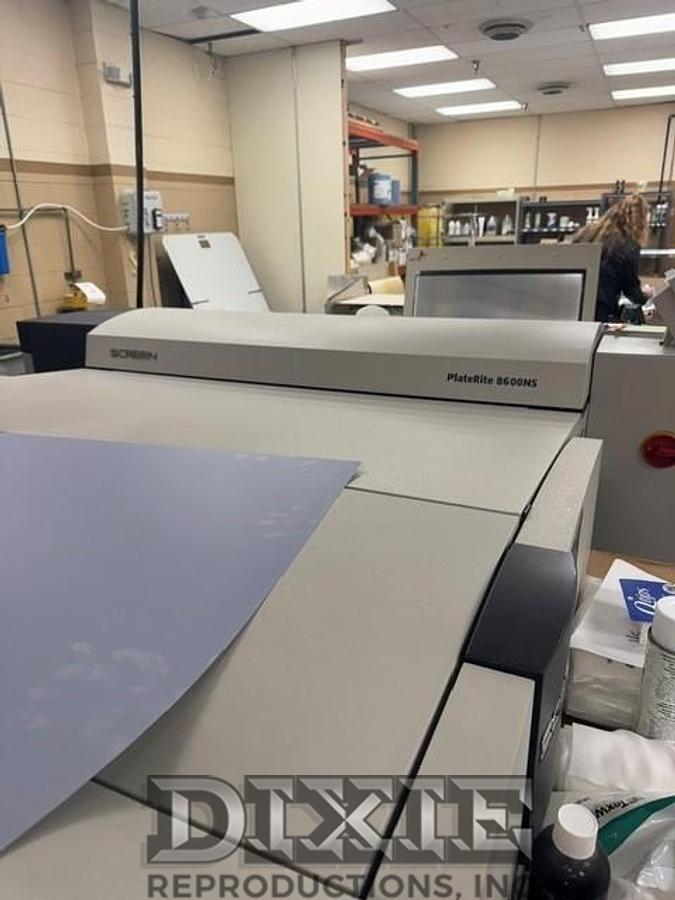

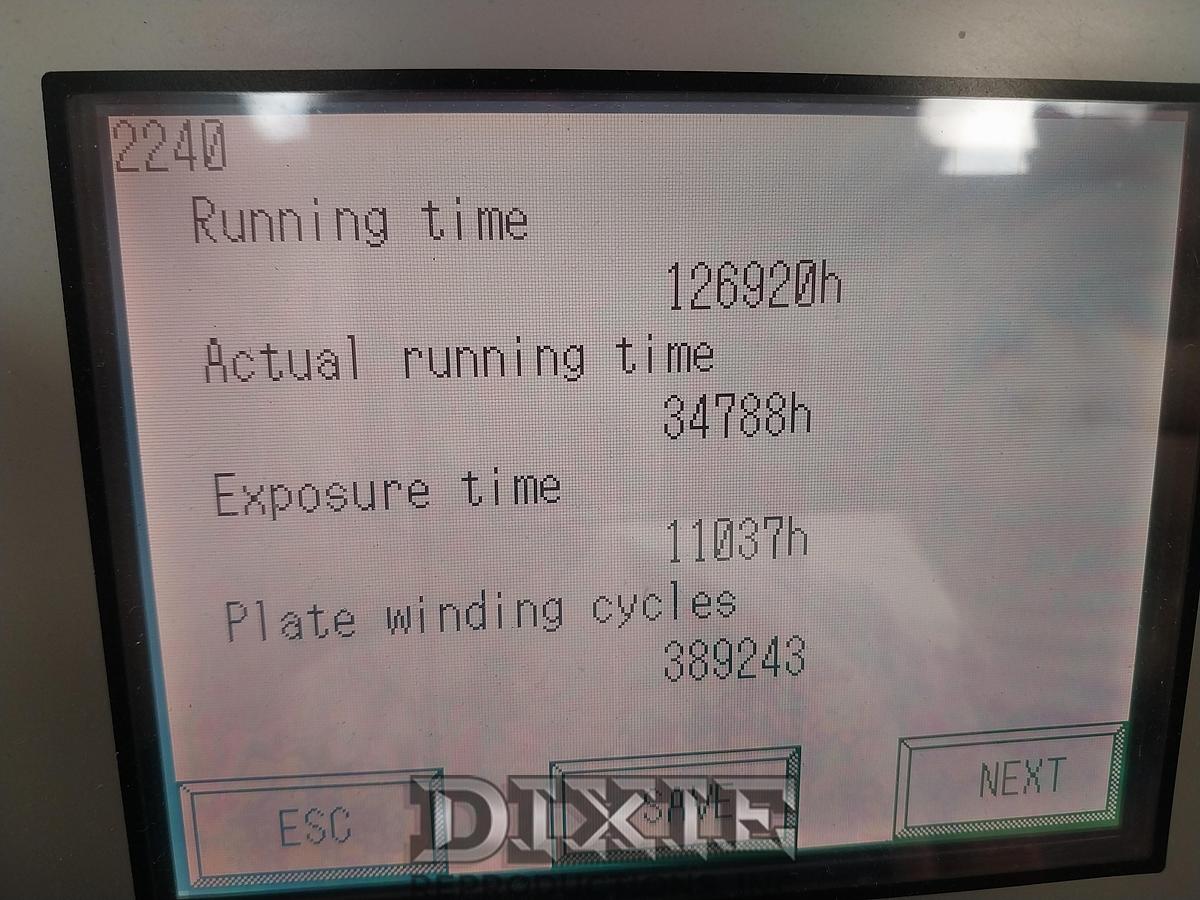

2010 Screen Javelin 8600s Thermal Plate Setter

Professionally refurbished by Fuji in 2020.

XMF for the CTP is included, will need RIP- not included.

2010 Screen Javelin 8600S Specifications

Manufacturer Screen Graphic Solutions (Fujifilm Javelin branding)

Model Javelin 8600S

Year 2010

Technology External Drum Thermal CTP

Laser Type 64-channel infrared laser diodes

Plate Format 8-page

Resolution1200, 2400, 2438, 2540 dpi

Maximum Plate Size 45.7 × 37 in. (1160 × 940 mm)

Minimum Plate Size12 × 14.6 in. (304 × 370 mm) with small plate option; standard minimum 17.7 × 14.6 in. (450 × 370 mm)

Maximum Imaging Area 45.7 × 36.4 in. (1160 × 924 mm)

Plate Thickness 0.15–0.30 mm (6–12 gauge); optional 16-gauge support

Registration Accuracy ±5 microns

Productivity Up to 23 plates/hour at 2400 dpi using 40.5 × 31.5 in. (1030 × 800 mm) plates

Plate Loading Manual standard; optional Single Cassette Autoloader (SAL) or Multi-Cassette Autoloader (MAL)

Punch Options Heidelberg, Komori, Screen, Protocol, and custom punches

Interface Fast PIF

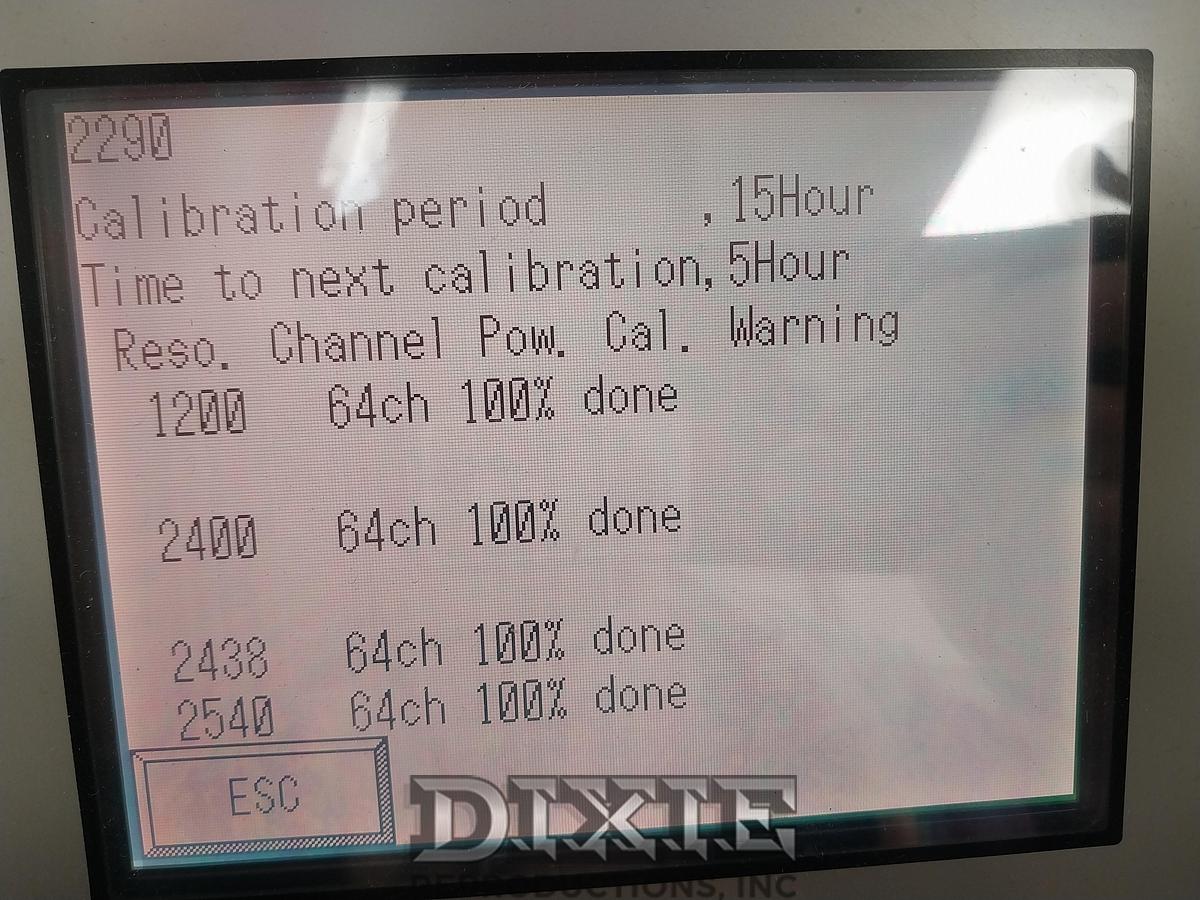

Calibration Automatic calibration for consistent exposure

Laser RedundancyYes—continues operating if a single laser diode fails

Compatible Plates Fujifilm LH-PJ, Ecomaxx-T, and other 830 nm thermal plates

Electrical Single-phase 200–240 VAC

Current Draw 32 Amps

Power Consumption 4.0 kW

Air Requirement No compressed air required for the recorder itself (autoloaders may require air depending on configuration)

Operating Temperature 70–77°F (21–25°C)

Humidity 40–70% non-condensing

Machine Dimensions 96.3 × 51 × 54.7 in. (2445 × 1295 × 1390 mm)

Machine Weight Approximately 2,530 lbs (1,150 kg)

Blower Weight Approximately 187 lbs (85 kg)
