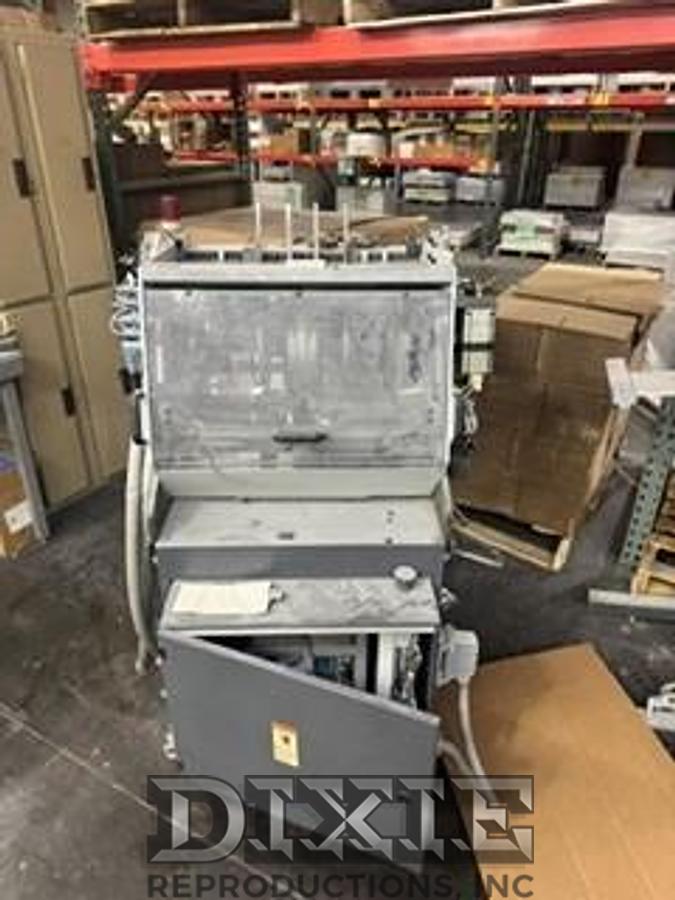

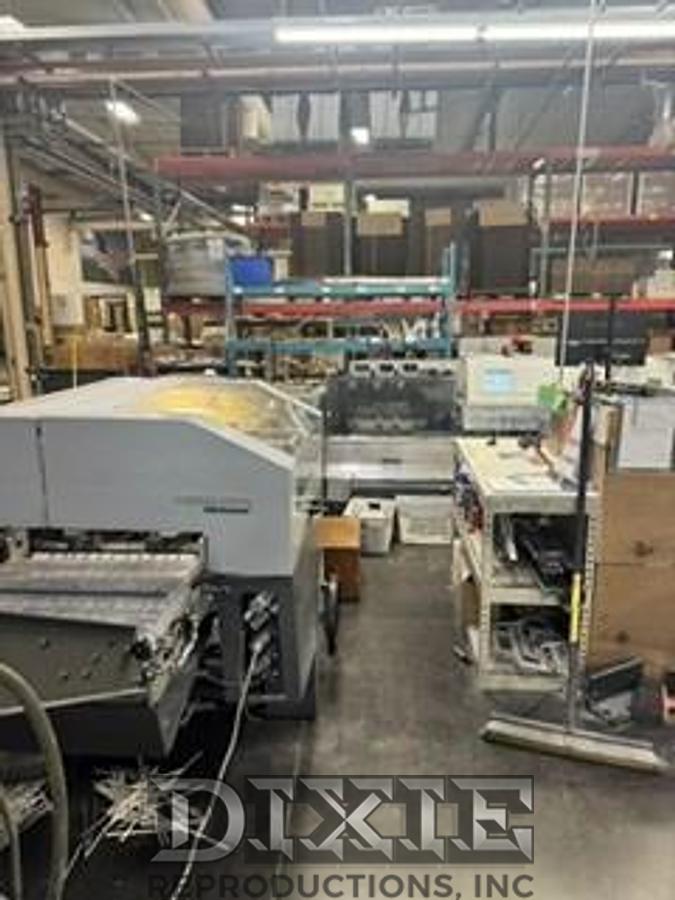

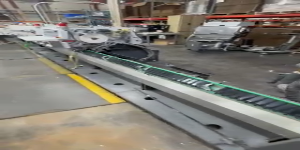

2005 Heidelberg ST 400 Stitch Master Saddle Stitcher

Sticher includes 6 pockets, trimmer with 4th and 5th knife.

General

• Manufacturer: Heidelberg
• Model: Stitchmaster ST 400
• Year: 2005
• Machine Type: Saddle Stitcher / Bookletmaker
• Maximum Mechanical Speed: 14,000 cycles per hour
• Minimum Speed: Approximately 600 cycles per hour

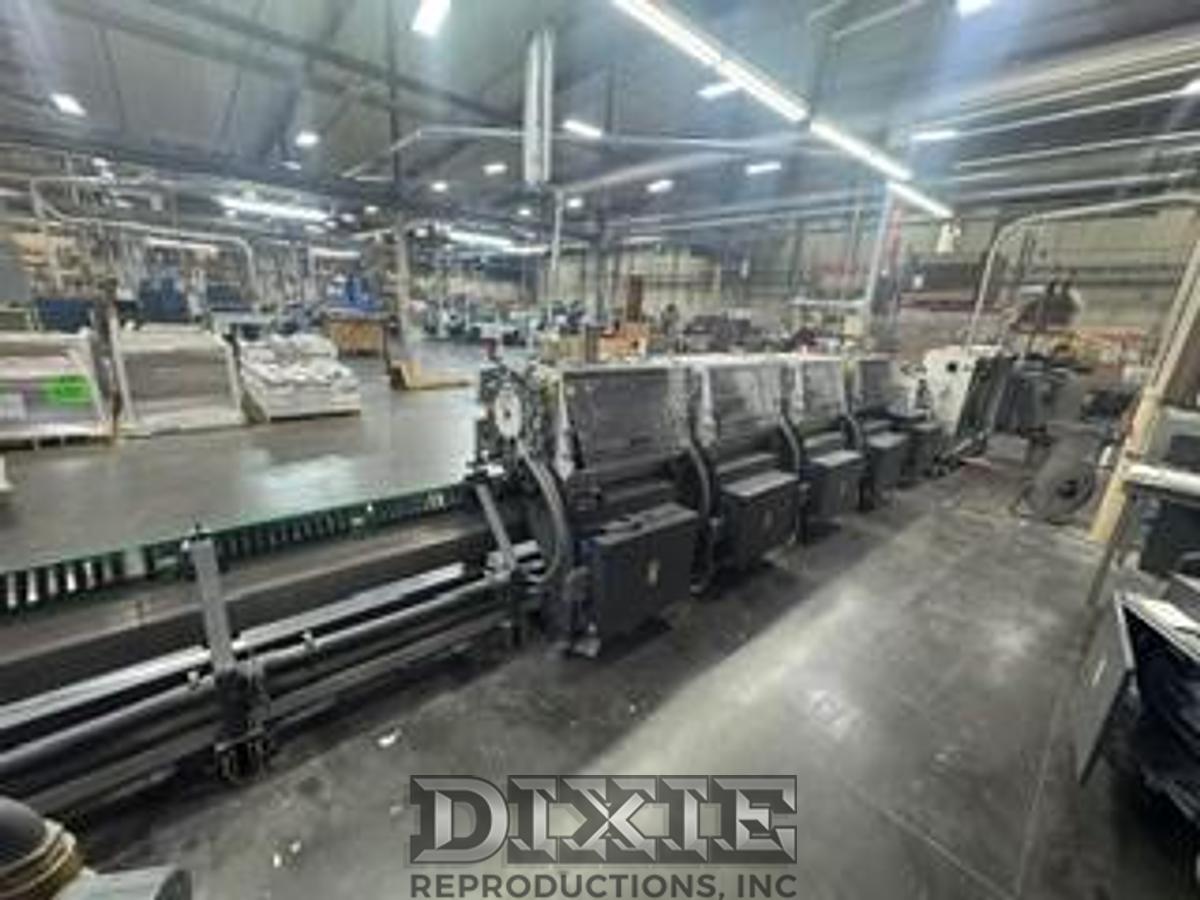

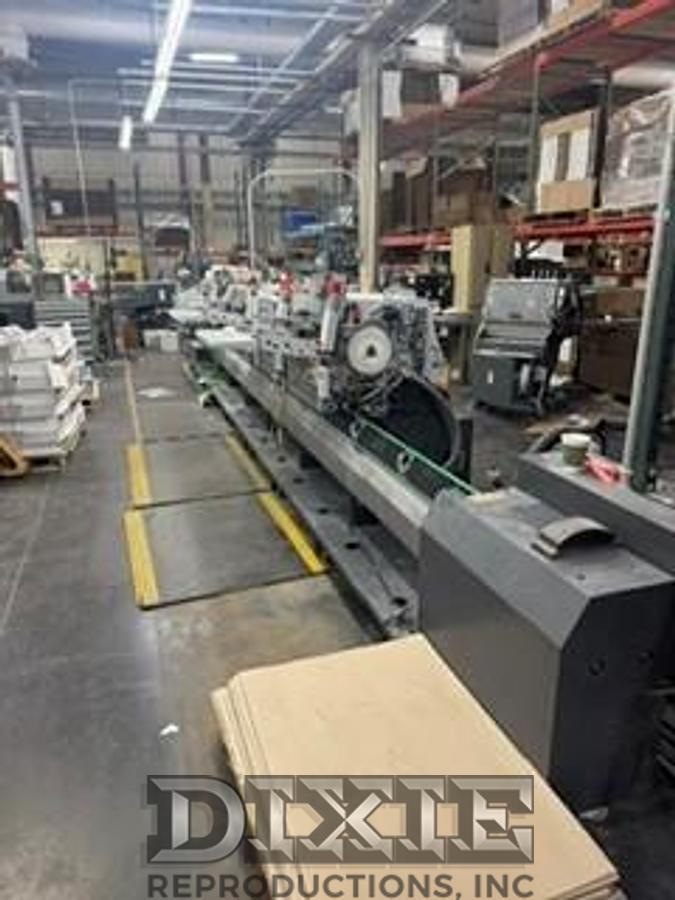

• 6 Gathering Pockets
• Configured with:

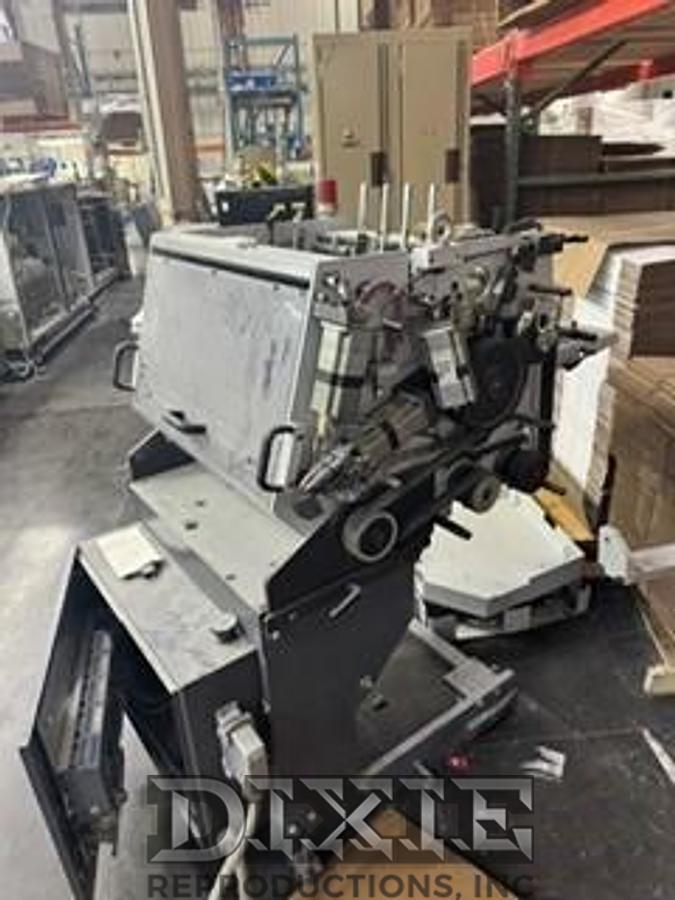

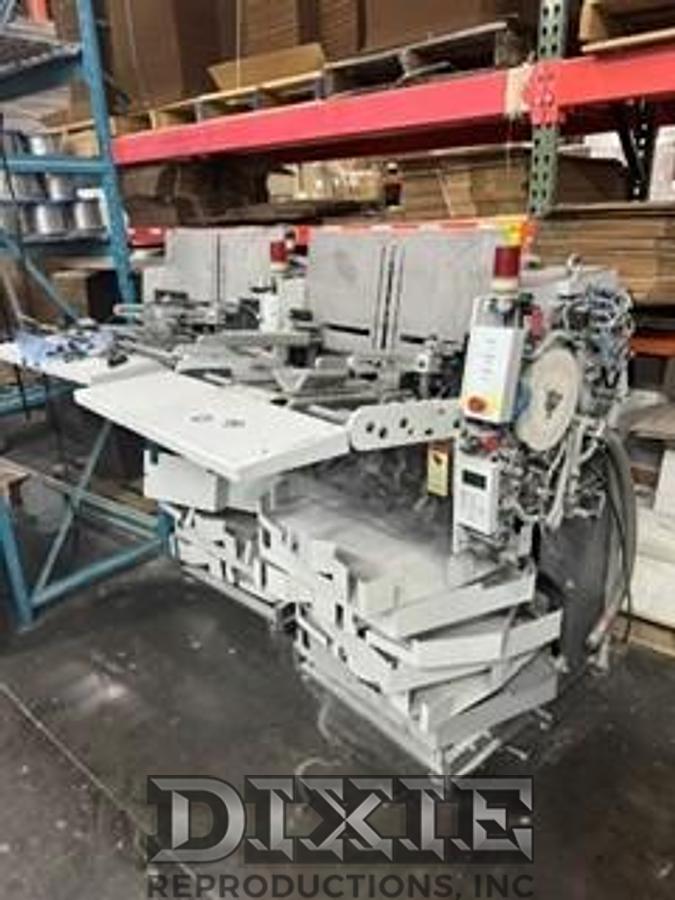

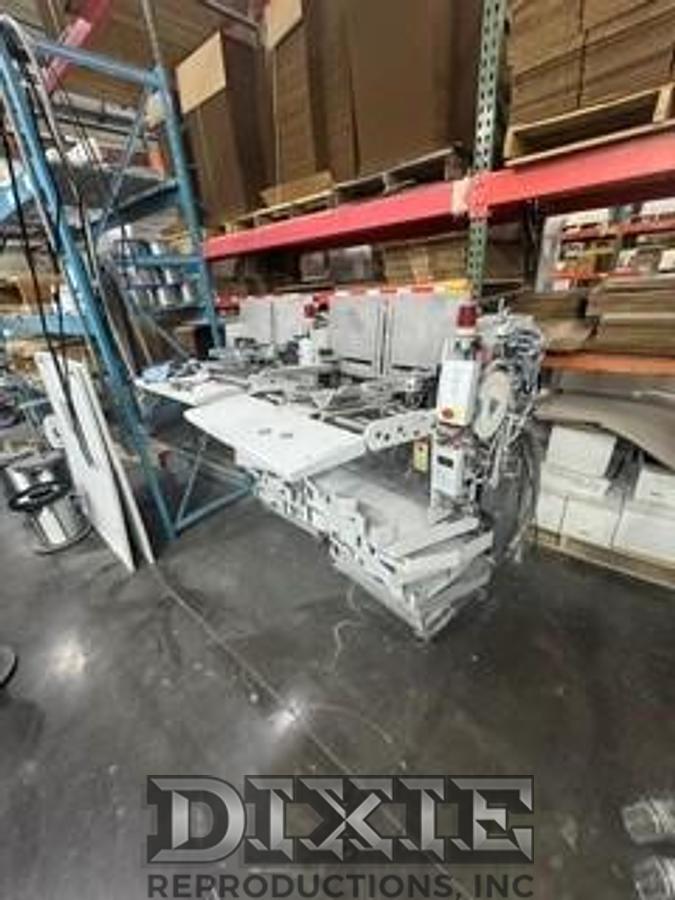

• 6 Vertical Feeders (TAS/DVU 400)
• 1 Cover Feeder (UFA/CHU 400)
• Electronic miss/double-sheet detection
• Thickness control
• Automatic reject gate for incomplete books

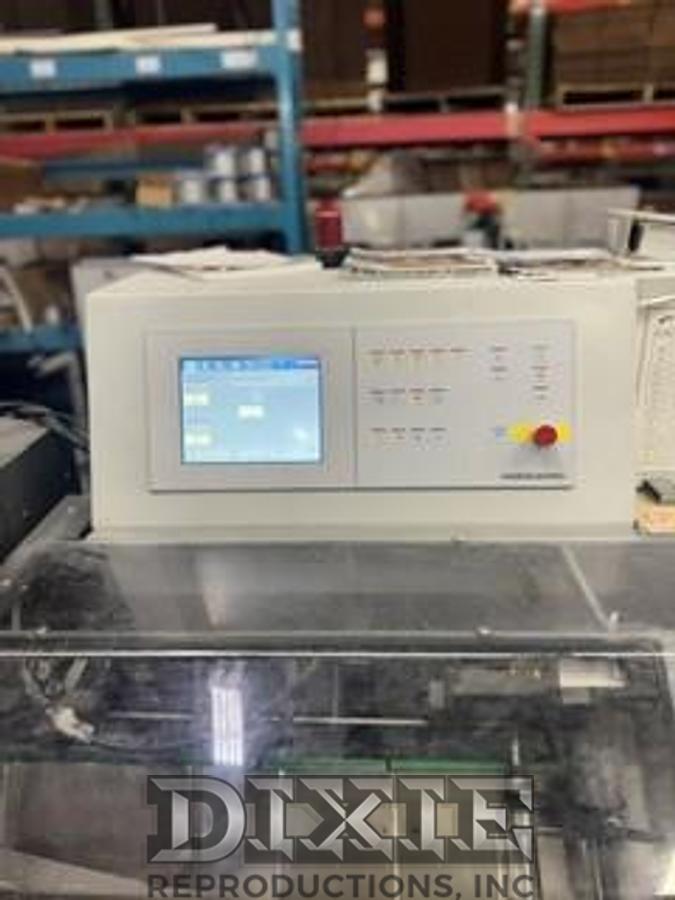

• Color touchscreen control system

Stitching Unit

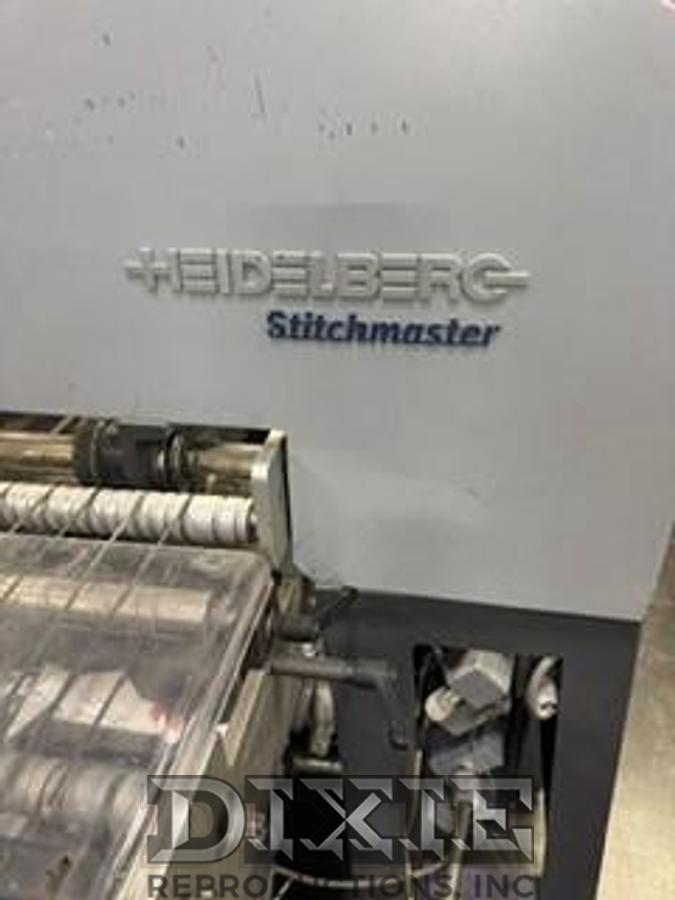

• Heidelberg ST 400 Stitching Unit
• Standard with 2 stitching heads
• Expandable up to 6 stitching heads for specialty work
• Automatic wire monitoring
• Adjustable stitch positions
• Loop stitch capability available with optional heads

Heidelberg TR 400

• Standard 3-knife trimming
• Head
• Foot
• Face trim

Finished Product Sizes

Untrimmed

• Maximum: 320 × 480 mm (12.6 × 18.9 in.)
• Minimum: 92 × 128 mm (3.6 × 5.0 in.)

Trimmed

• Maximum: 310 × 474 mm (12.2 × 18.7 in.)
• Minimum: 89 × 120 mm (3.5 × 4.7 in.)

Book Thickness

• Maximum Product Thickness:
• 12 mm (0.47 in.)
• Approximately 120 pages depending on paper weight

Controls

• Heidelberg color touchscreen
• Job memory
• Automatic setup assistance
• Production diagnostics
• Counter and production statistics
• Selective binding capability

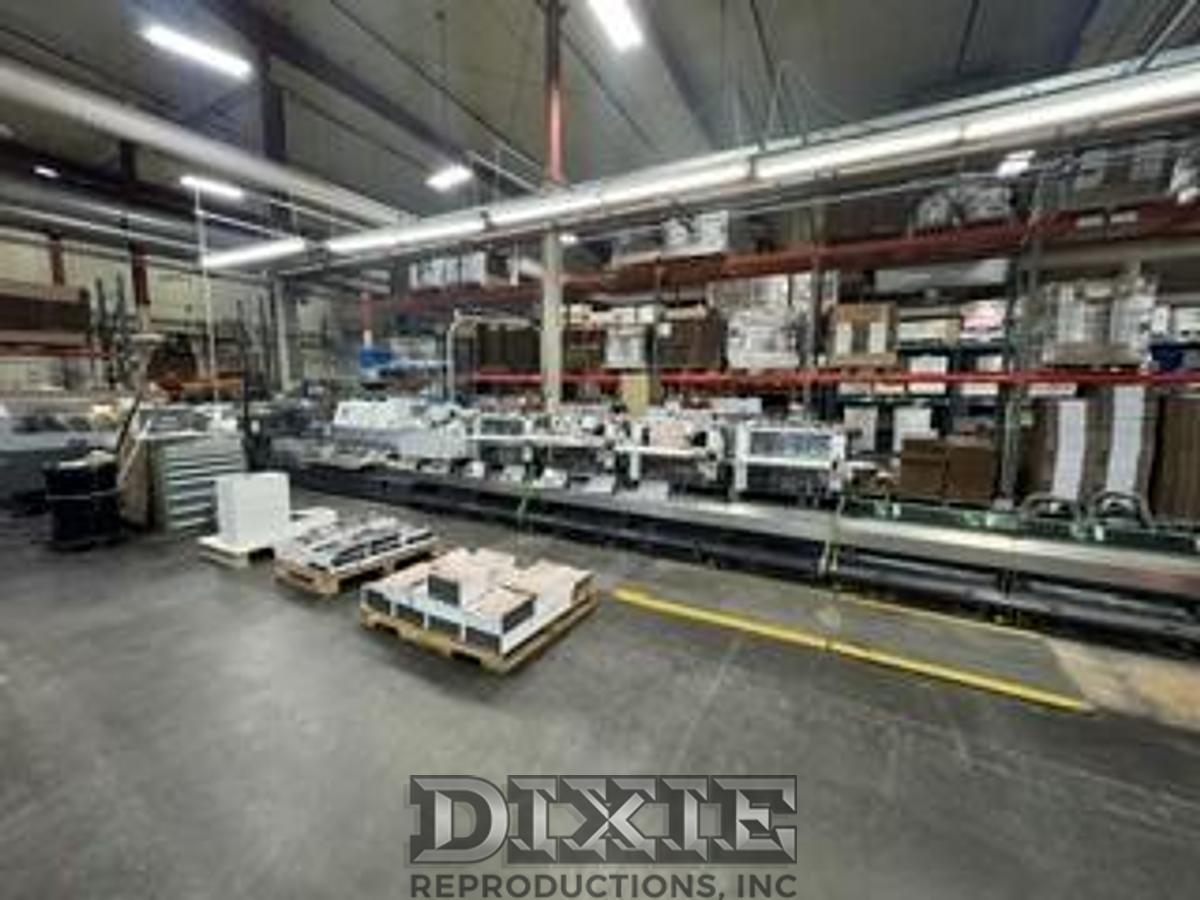

A typical 6-pocket configuration with trimmer and delivery measures approximately:

• Length: 31–35 ft (9.5–10.7 m)
• Width: 8–10 ft (2.4–3.0 m)
• Height: 6 ft 8 in. (2.0 m)
