2016 Heat Seal HSE-100

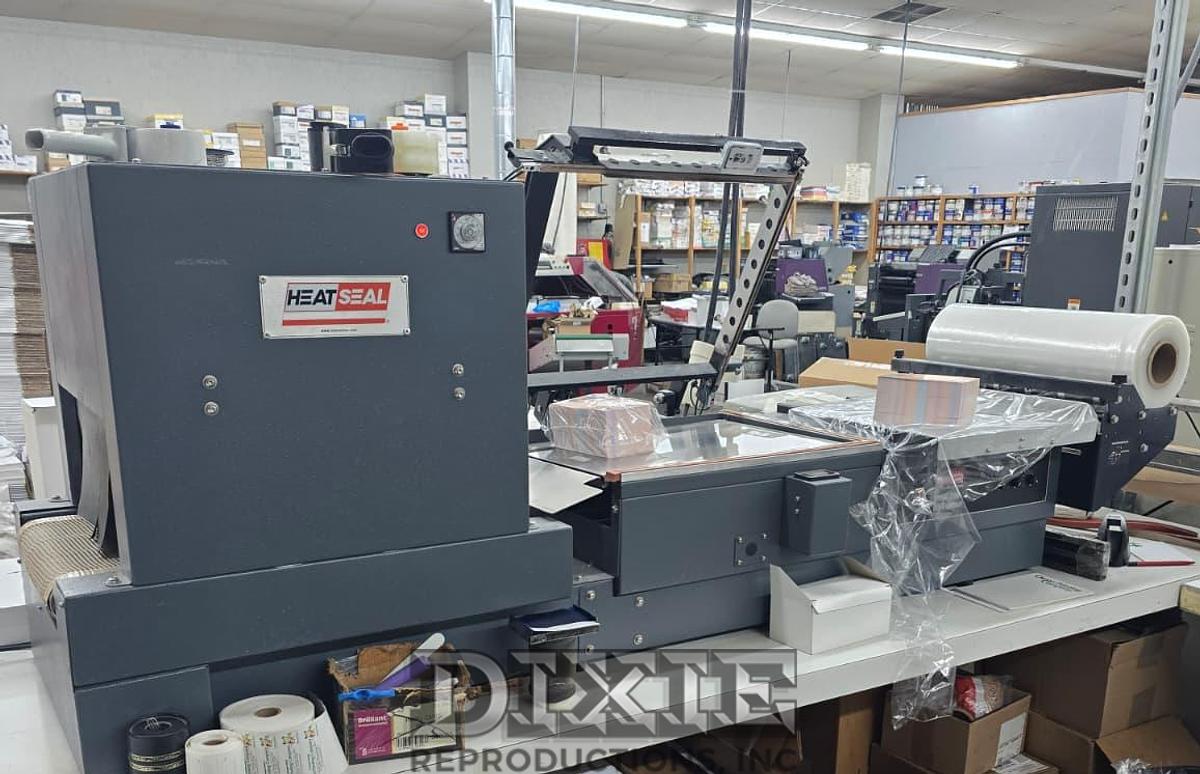

The HeatSeal HSE100-MXXA is a Standard Duty Semi-Automatic Combo Shrink System combining an L-Bar Sealer with a Shrink Tunnel for small-volume shrink wrapping applications

Key Features

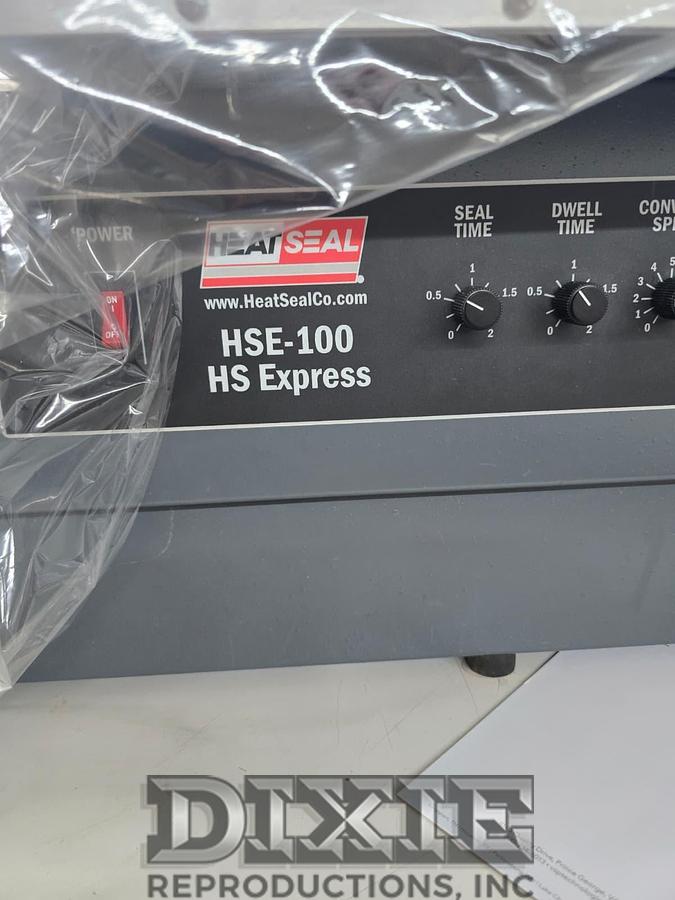

• Control Panel: Express Control Panel for machine operations
• Power Supply: Single plug, 115V, single phase, 17–20A depending on configuration
• Sealing System: Impulse wire seal with standard seal head and film clamps
• Sealing Platform: Adjustable height for different package profiles
• Hold Down: Balanced magnetic hold down for secure film feeding
• Conveyor: Pre-wired seal conveyor ready; non-stick mesh tunnel belt for even shrink
• Perforating Wheels: Four individually adjustable wheels for precise perforation
• Film Cradle: Adjustable to accommodate various package widths up to 17" (43 cm)

Sealing Area

• Width: 16" (41 cm)
• Length: 20" (51 cm)
• Height: 6.5" (17 cm) for standard packages

Shrink Tunnel Specs

• Inside Tunnel Dimensions: 16" W × 20" L × 6.5" H (41 × 51 × 17 cm)
• Conveyor Speed: 0–20 ft/min (0–6 m/min)
• Tunnel Wattage: ~2,000 watts

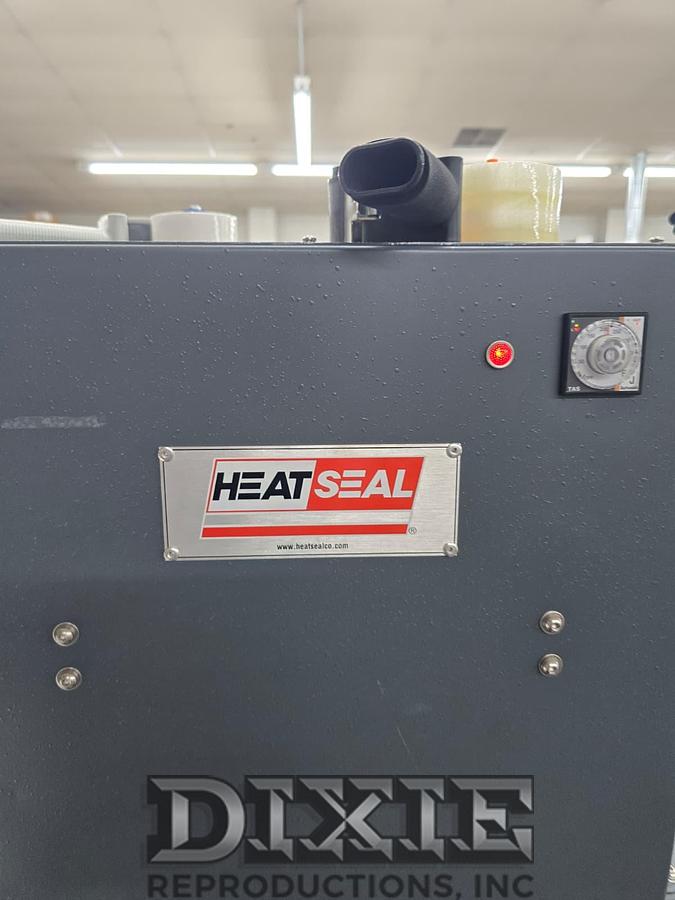

• Temperature Control: Independent tunnel temperature control
• Cool Down: Automatic cool down to extend heating element life

Overall Dimensions

• Tabletop/Leg Kit: 76.5" L × 24" W × 32"/55" H (195 × 61 × 82 cm)
• With Leg Kit: 36" (92 cm) height

Power & Weight

• Power: 115V, single phase, 17–20A depending on configuration
• Weight: 380 lbs (172 kg)
