Intec ColorSplash Envelope Printer

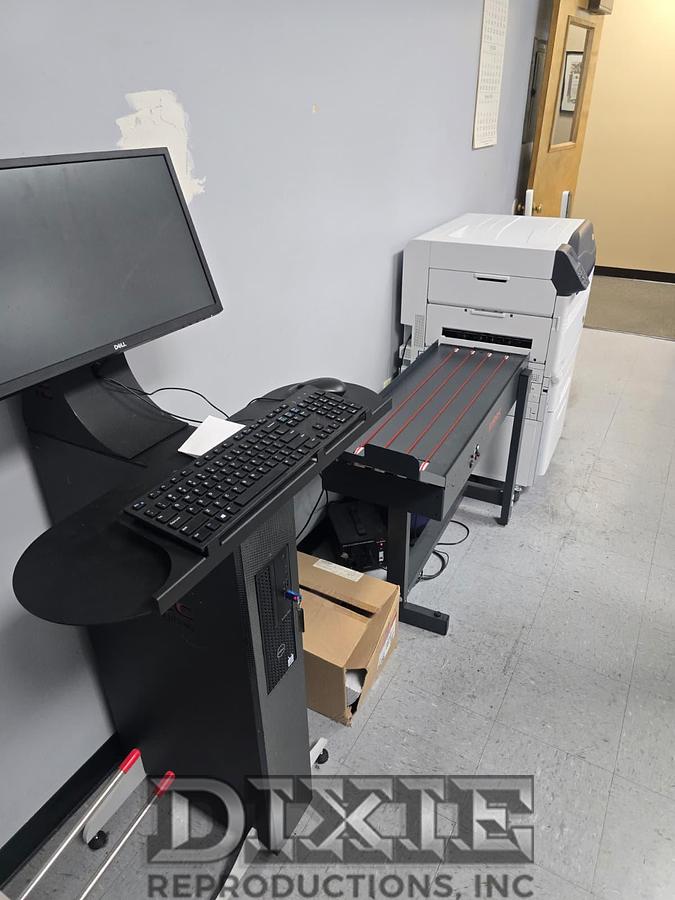

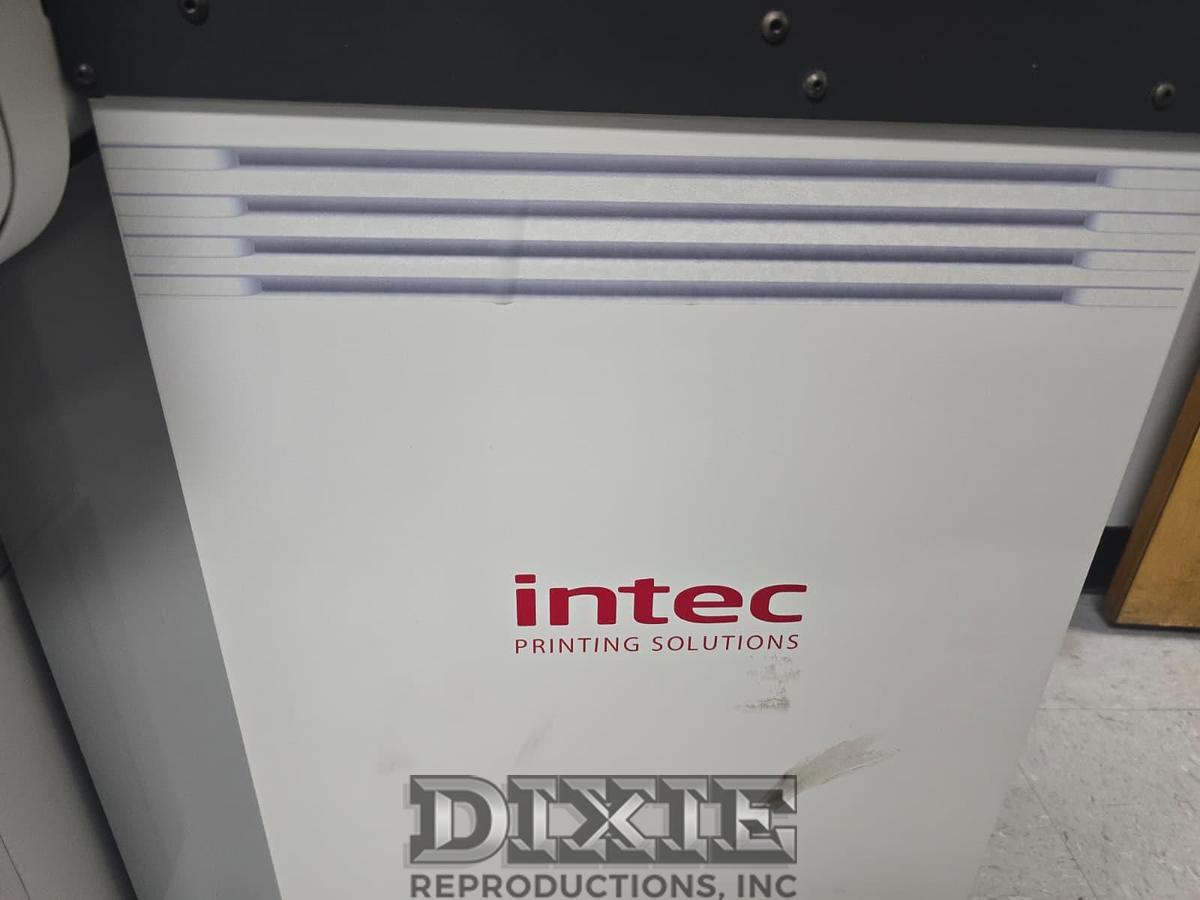

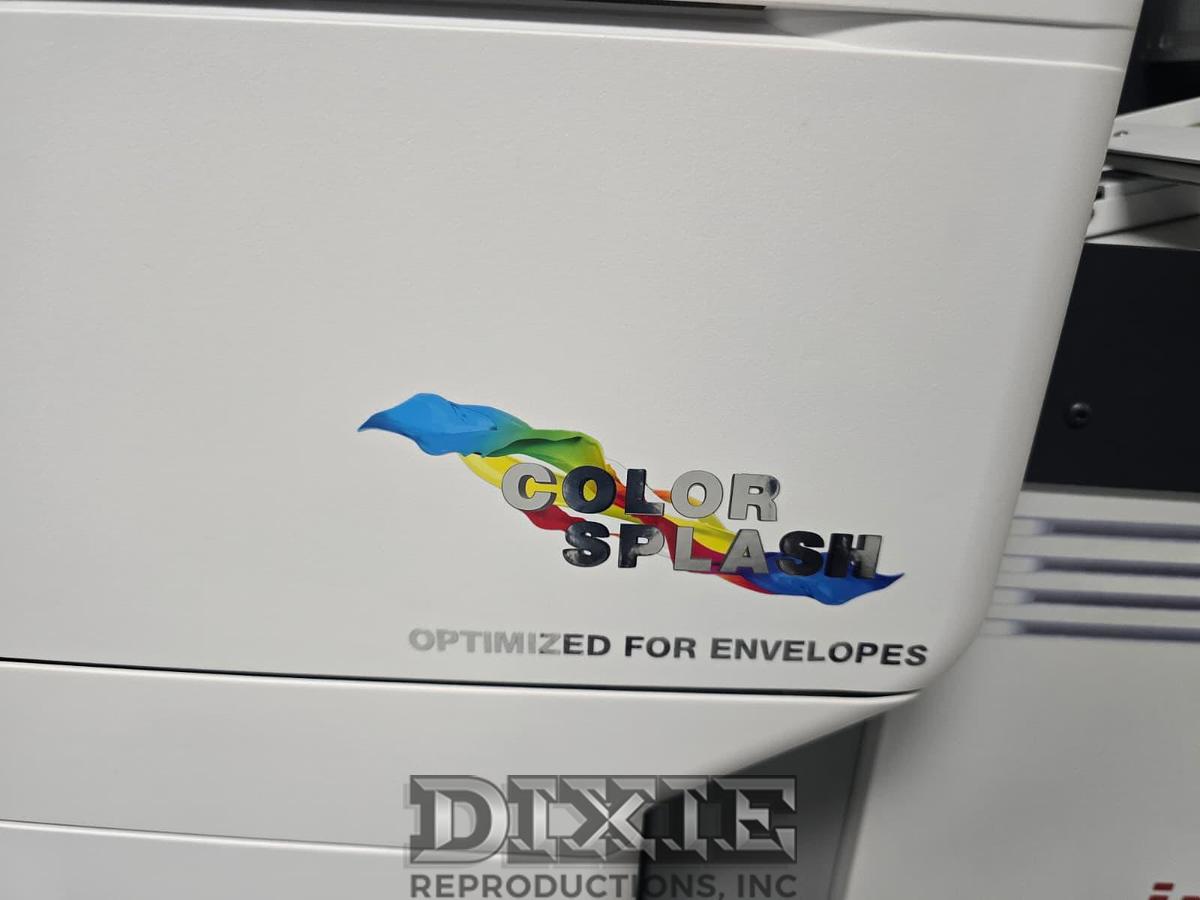

The Intec ColorSplash CS4000 Digital Press with Feeder and Delivery Conveyor (Model N36100B) is a professional envelope printing system designed for high-volume, continuous production.

Print resolution: 1200 × 1200 dpi using Intec Multi Level OS4800 technology for advanced color output

Print speed: Up to 50 ppm (A4 color/mono) and 28 ppm (A3 color/mono)

Time to first print: ~8 seconds (color & mono)

Processor: 1.2 GHz, 2 GB RAM for ultra-fast throughput

RIP compatibility: Fully compatible with Fiery® XF for Intec

Standard paper capacity: 530 sheets in main tray + 300 sheets in multi-purpose tray

Optional high-capacity feeder: 1,590 sheets

Media range: SRA3, A3, SRA4, A4, A5, A6, B4, B5; custom sizes up to 1321 mm; weights up to 500 gsm

Envelopes: Designed for #10 to #16 sizes, various thicknesses, including window envelopes; high-capacity envelope hopper (10–1000 envelopes) with continuous feeding from the bottom of the stack for uninterrupted printing

Two-sided printing: Up to 320 gsm included as standard

Professional envelope feeder: Self-centring guides, rapid changeover, multi-purpose tray aperture, and modular design for other media types

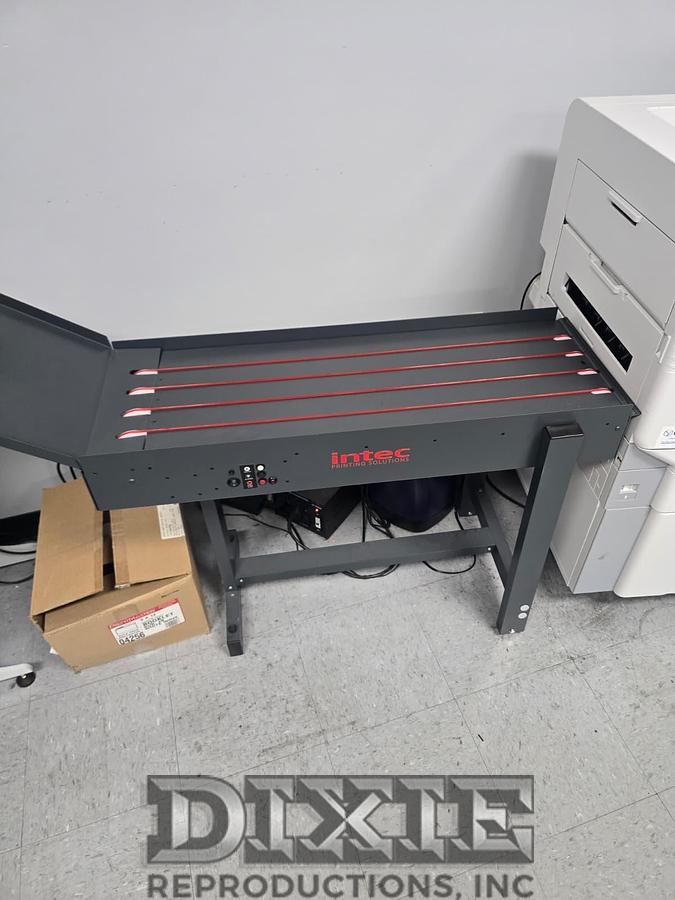

Shingling conveyor: Variable overlap facility for all envelope sizes, with standard sheet-fed print capability

Delivery table: “Floating” design for easy removal and reloading during operation

Prints on a wide range of substrates including paper, card, film, gloss, synthetic media, polyester, and magnetic materials
