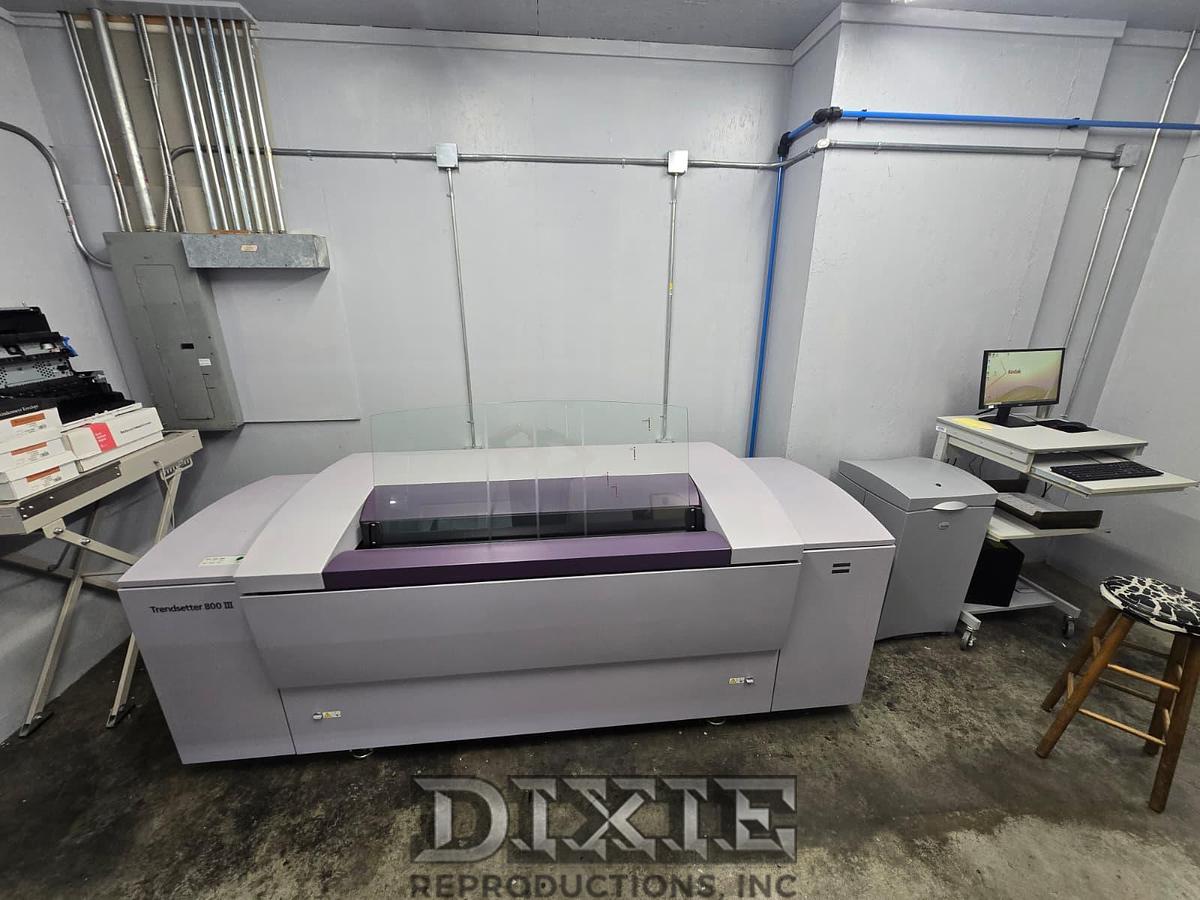

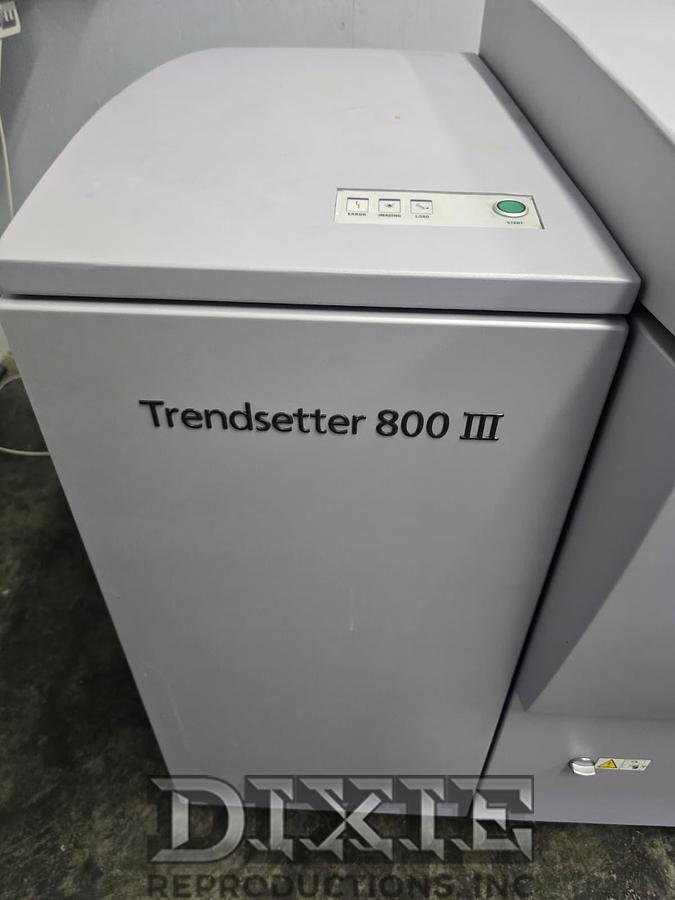

2007 Kodak Trendsetter 800 III

Comes with Kodak RIP.

ManufacturerKodak (formerly Creo)

ModelTrendsetter 800 III

Year2007

Imaging TechnologyKodak SQUAREspot Thermal Imaging

Laser Type830 nm infrared thermal laser

Plate TypeThermal aluminum offset plates (process, processless, or chemistry-free depending on plate type)

Plate Size (Maximum)32.8" × 45.3" (838 × 1,150 mm) with 2L option; standard models typically up to 27.6" × 38.8" (700 × 985 mm)

Plate Size (Minimum)Approximately 10.5" × 8.5" (267 × 215 mm), depending on configuration

Plate Thickness0.008"–0.012" (0.20–0.30 mm)

ResolutionStandard 1200 dpi; optional 1270, 2400, or 2540 dpi

ScreeningConventional AM screening, Staccato FM Screening, Hybrid Screening

Maximum Line ScreenUp to 450 lpi (with high-resolution option)

Repeatability±10 microns

Registration AccuracyApproximately ±40 microns between plates

Imaging MethodExternal drum

Plate LoadingSemi-automatic standard

Automation OptionsAuto Unload, Single Cassette Loader, Multi-Cassette Loader, Autoloader

Workflow CompatibilityKodak Prinergy, TIFF Downloader, and most third-party RIPs

ConnectivityEthernet

Power Requirements208–240V, 3 Phase (varies with options)

WeightApproximately 1,450–1,800 lbs (650–820 kg), depending on configuration

FootprintApproximately 79" W × 47" D × 63" H (larger with loaders)
