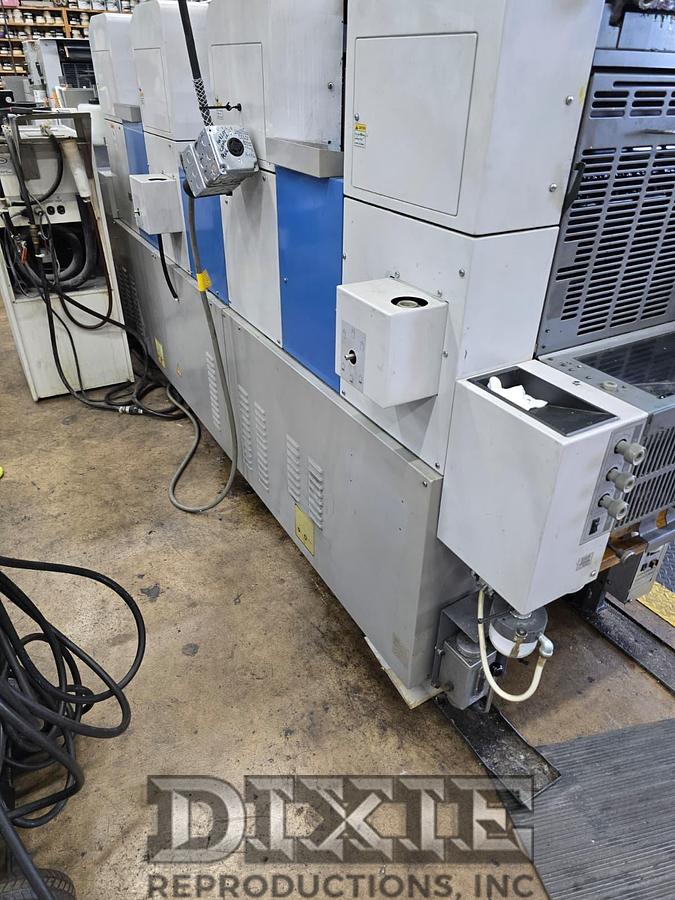

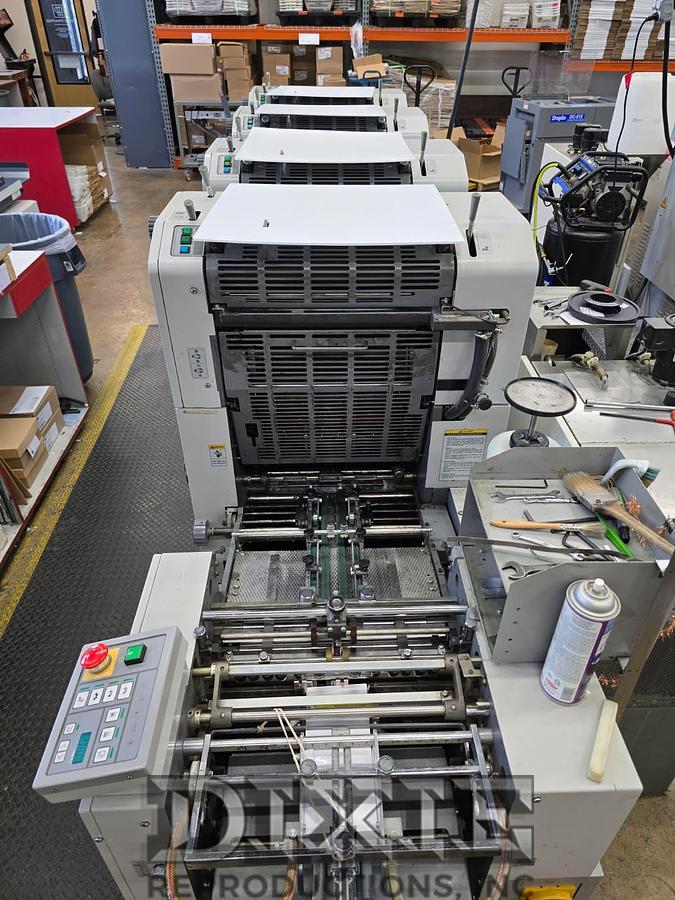

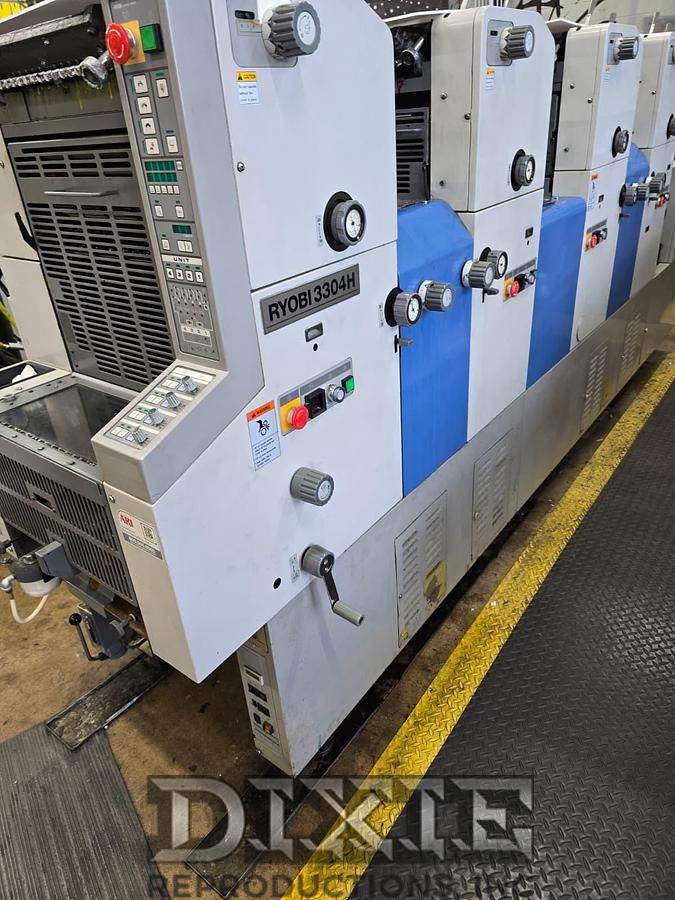

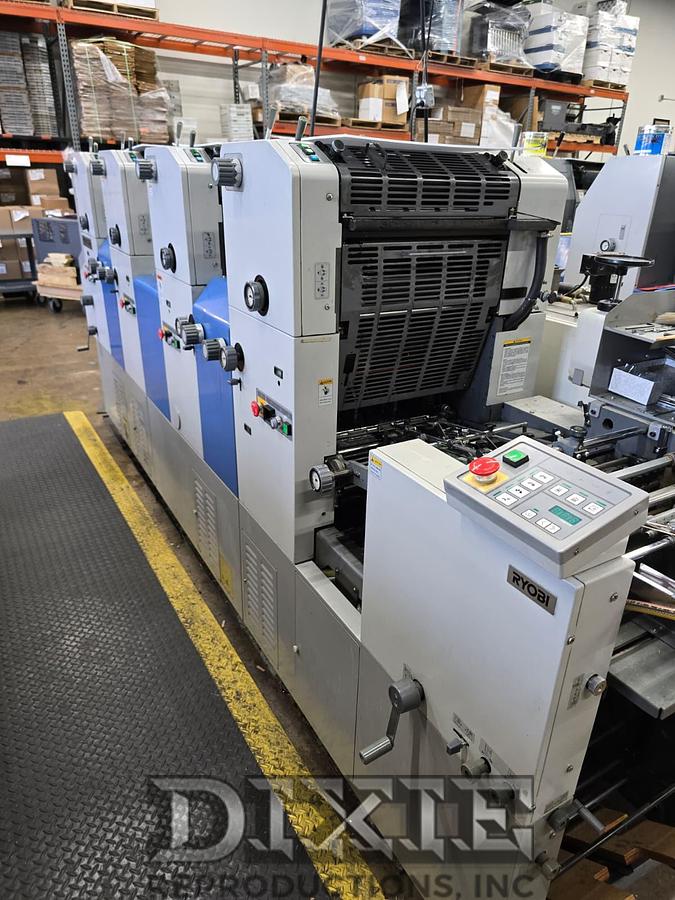

Ryobi 3304H

Printing System: Satellite V-shaped 5-cylinder system with two 2-color units linked by three transfer drums, requiring only four gripper changes for high registration accuracy

Plate Handling: Accepts metal or polyester plates; 3304HA includes a Semi-Automatic Plate Changer (SAPC) for faster plate changes and high mounting accuracy

Inking & Dampening: Ryobi SuperDampener continuous dampening system with 6-roller arrangement and motor-driven fountain roller for optimal aqua film

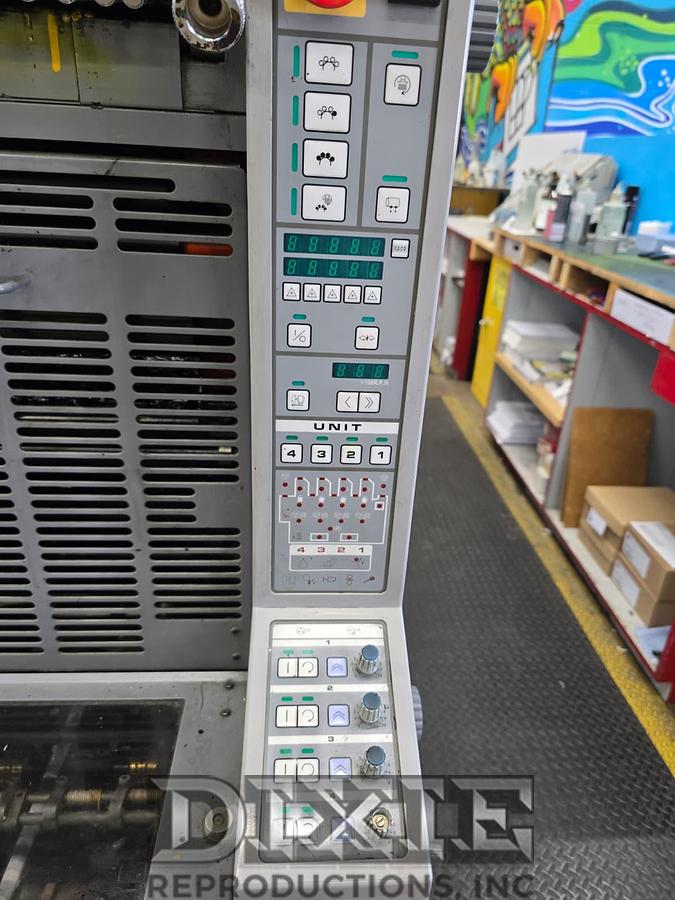

Control System: Factory-installed Ryobi PCS-F printing control system with touch-screen interface for operator control

Plate Size: 335 × 485 mm with 26 mm margin

Paper Handling: Double sprung grippers on feed, impression, and transfer drums for precise registration even at high speeds

Max Paper Size: 340 × 450 mm (13.4" × 17.7")

Min Paper Size: 90 × 100 mm

Max Printing Area: 330 × 438 mm

Paper Thickness: 0.04 – 0.3 mm

Feeder Pile Capacity: 440 mm

Delivery Pile Capacity: 550 mm

Printing Speed: Up to 10,000 sheets/hour (some sources list 3,000–10,000 sph)

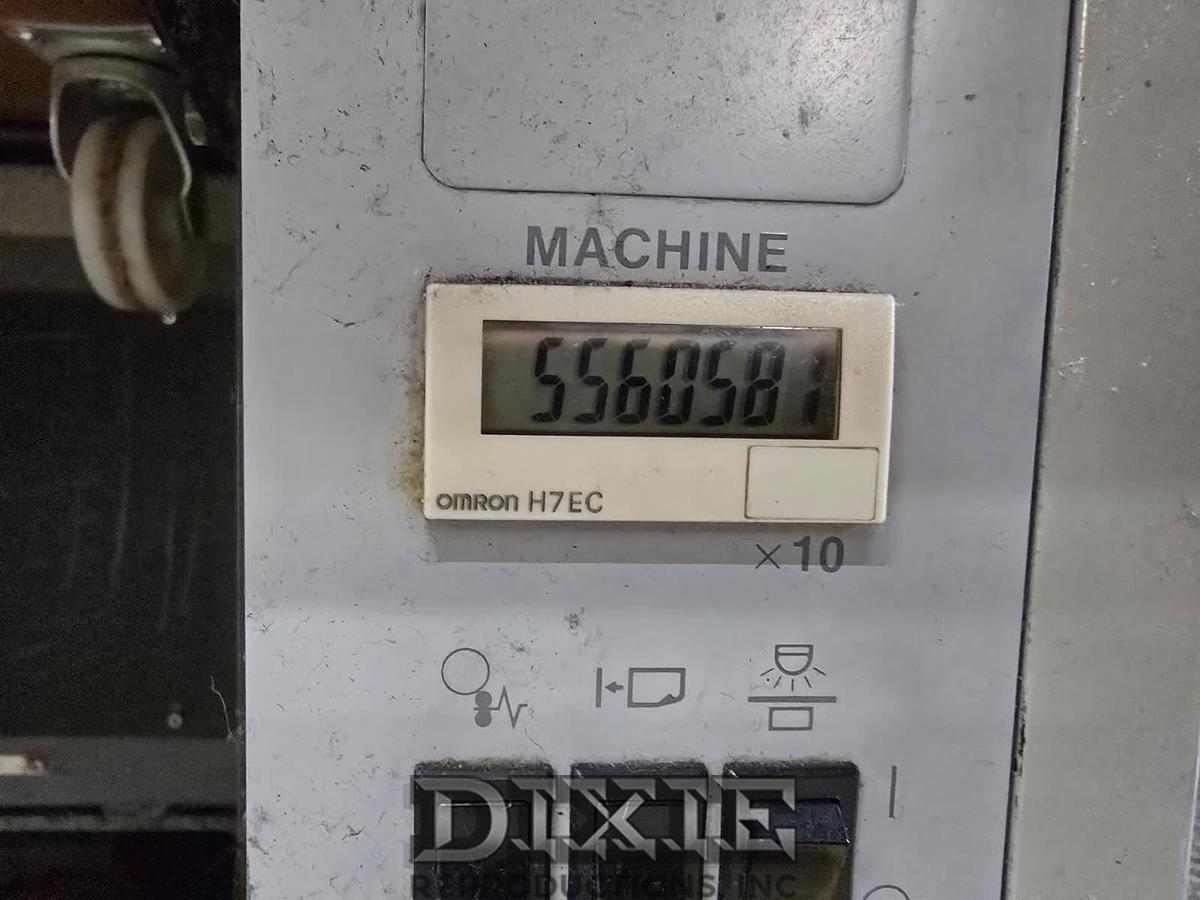

Number of Impressions: Up to 25 million (varies by model and usage)

Dryer: IR dryer (some models with IR/Coating unit)

Chromed Cylinders: Yes

Energy Efficiency: Optimized for low energy use

Weight: ~3,000 kg

Dimensions: 3750 × 1040 × 1595 mm
