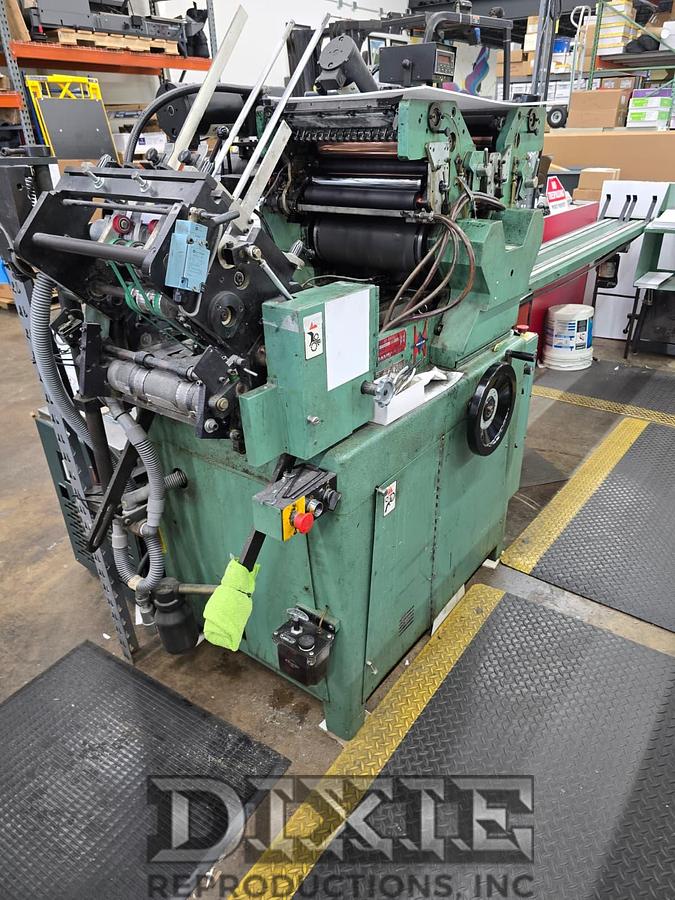

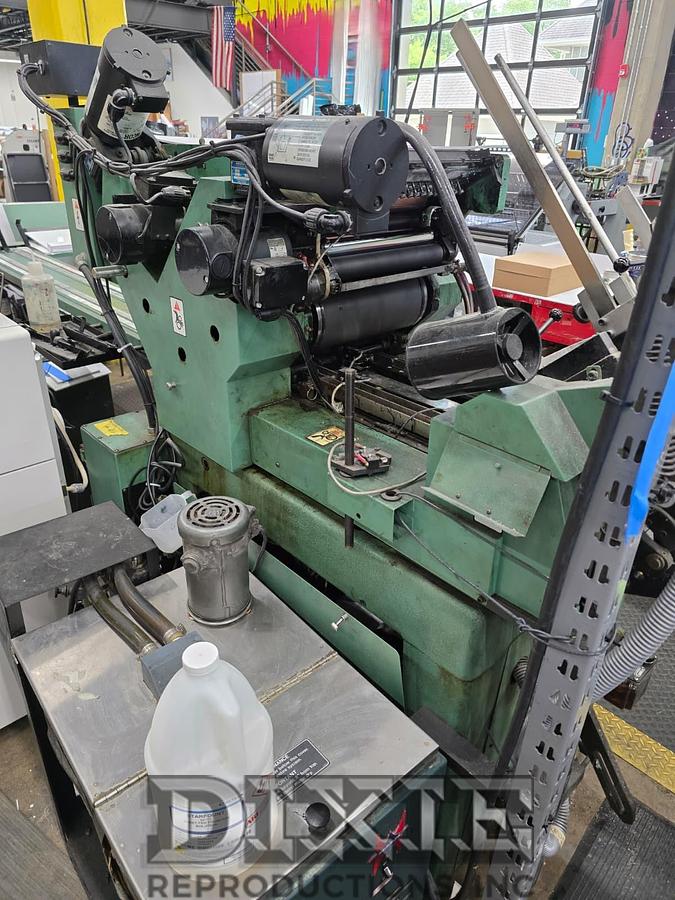

Name: 1997 Halm Jet Press JP-TWOD-6D
Brand: Halm Jet Press JP-TWOD-6D
SKU: 2A7339
Availability: InStock

Model: JP-TWOD-6D (Two Color Perfector, Offset Envelope Press)
Colors: 2-color offset printing
Perfecting: 2 + 2 / 2 + 0 (two perfecting units)
Sheet Size Range:
Min.: 3-1/4″ × 4-1/4″ (82 × 108 mm)
Max.: 12″ × 18″ (305 × 457 mm)
Printing Area: One side only, up to 12″ × 18″; perfect print area up to 9″ × 12″
Perfecting Area: Up to 4-1/4″ × 12″
Max. Sheet Size (metric): 460 × 325 mm
Printing Area (metric): Up to 460 × 305 mm with four-sided bleed
Speed: Up to 60,000 envelopes per hour (varies by sheet size and perfecting mode)
Blanket: 19-15/32″ × 12-1/4″ × 0.008″
Plate Cylinder Movement: 360° circumferential, ±1/8″ lateral, ±½° skewing
Feeders: Top and bottom feeders
Cams & Guides: All cams, wide and narrow guides, supports, hold-downs included
Electrical: 240 V, 3-phase, 60 Hz (+ ground)
Weight: ~2,000 lbs (machine) / ~180 lbs (table)
Dimensions:
Length: 6' 2″ (1880 mm)
Width: 2' 10-3/4″ (780 mm)
Height: 5' 3-1/2″ (1610 mm)
