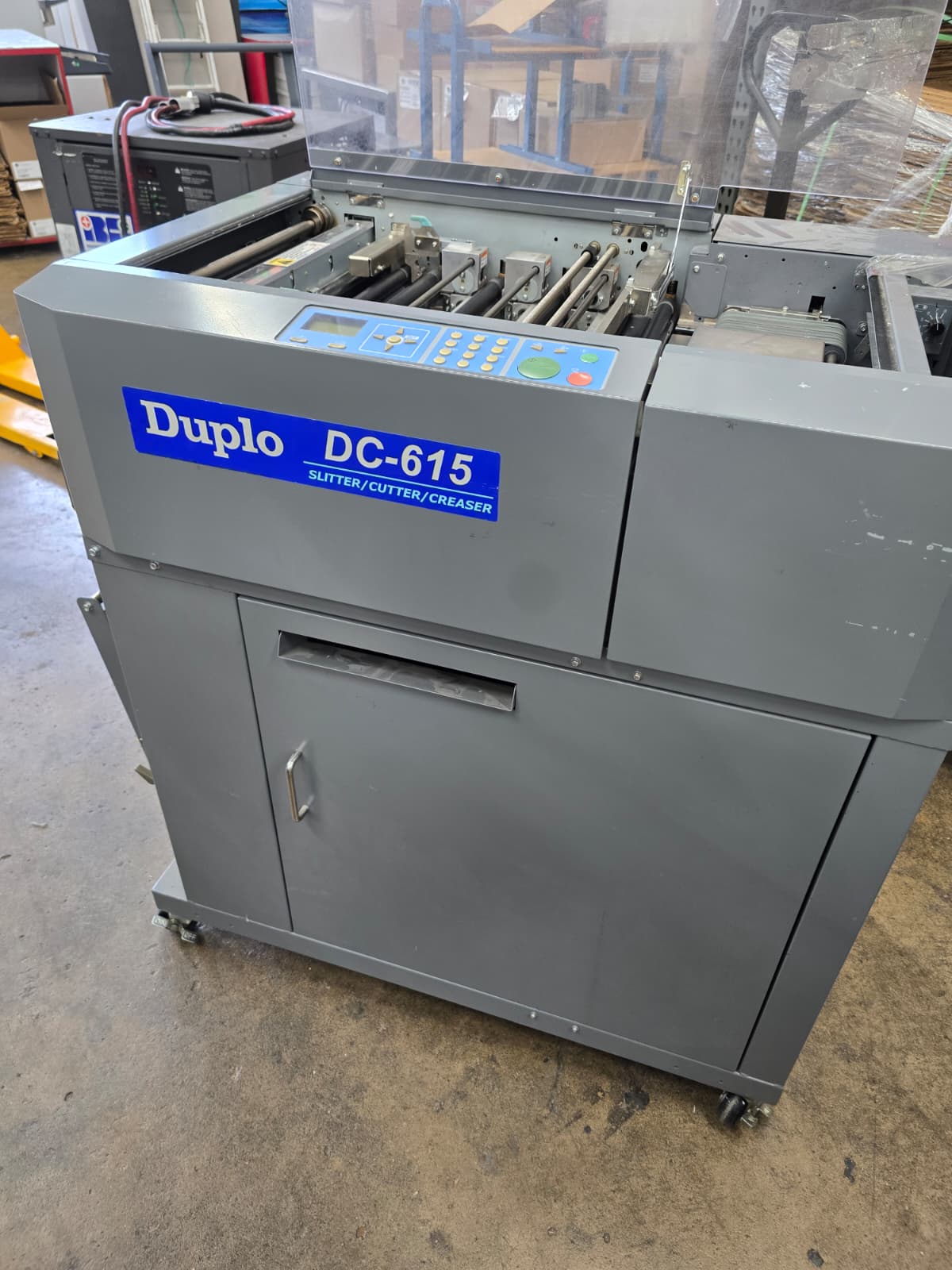

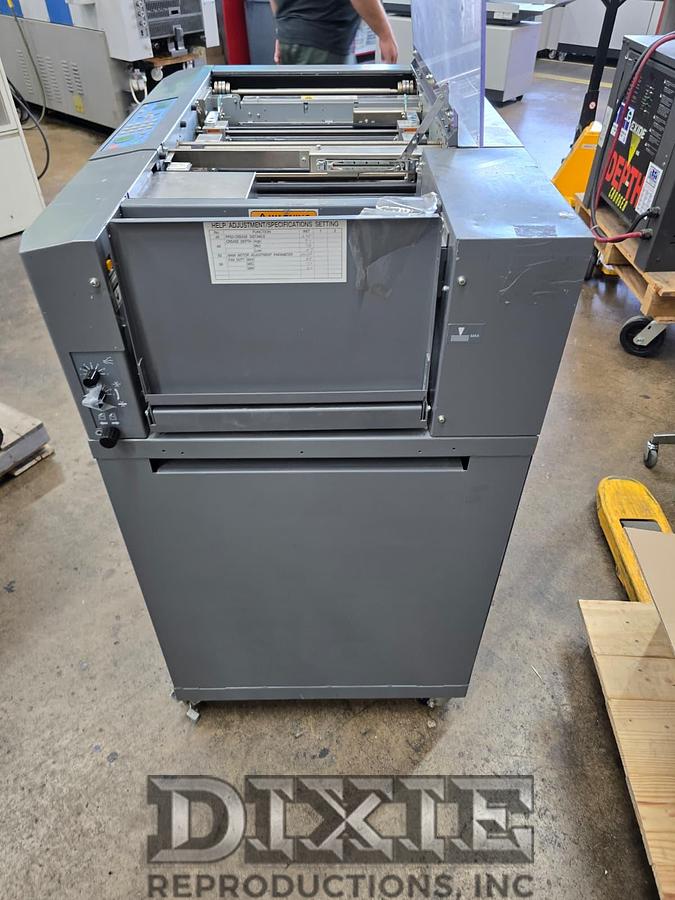

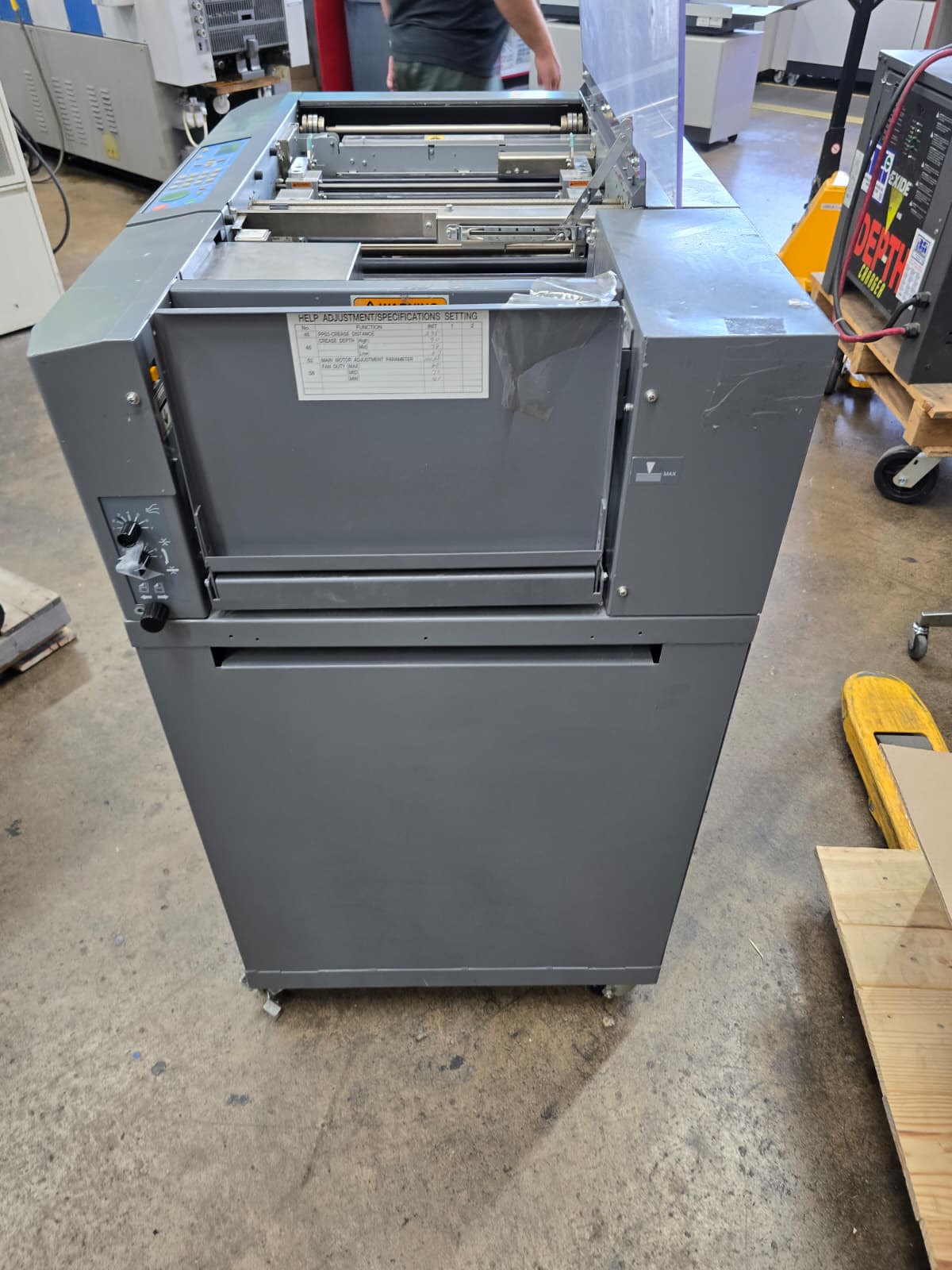

2007 Duplo 615

The Duplo DC-615 is a multi-function finishing machine designed for digital colour print applications, capable of slitting, cutting, and creasing in a single pass.

L x W x H: 1600 mm × 620 mm × 1050 mm (approx. 63" × 25" × 42")

Weight: 132 kg (approx. 291 lbs)

Voltage: 230 V AC, 50 Hz (some versions 120 V 50/60 Hz)

Consumption: 100 W (0.7 A)

Input size min: 210 mm × 210 mm

Input size max: 320 mm × 650 mm (optional long feed tray for 650 mm)

Paper weight: 110 gsm – 350 gsm (some sources list 300 gsm)

Paper type: Uncoated, coated, laminated

Feed capacity: 100 mm (3.9")

Air knife & fan registration for feeding and alignment

Slitters: Up to 6 rotary knives (2 side trim, 4 centre slitters)

Cuts: Up to 15 per sheet

Creases: Up to 10 per sheet

Margins: 3.2 mm – 55 mm from edges; gutter deflectors 5–15 mm

Tolerance: ±0.3 mm (business cards ±0.4 mm)

Lead edge cut: ≥3.2 mm; gutter cut ≥4 mm; trail edge cut ≥5 mm
