Duplo 100 Pro

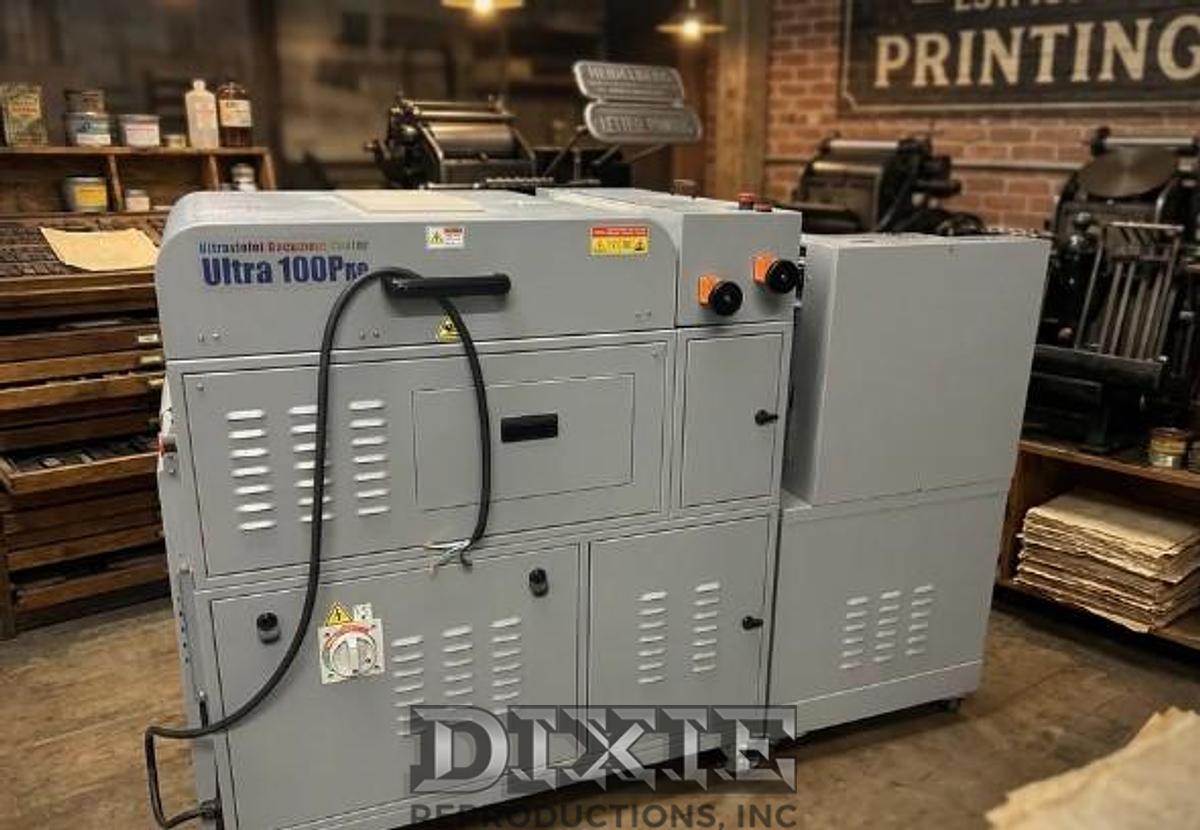

Ultra 100 Pro UV Coater- Brand New, never been used!

The Ultra 100 Pro UV Coater adds a vibrant finish to offset and digitally-printed sheets on a budget. The applicator and impression rollers engage only at the start and end of the sheet, ensuring a smear-free finish when coating one or both sides of the sheet. The Ultra 100 Pro comes standard with the high capacity SF-200 Suction Feeder or can be configured with the hand-feed module for coating small volume jobs.

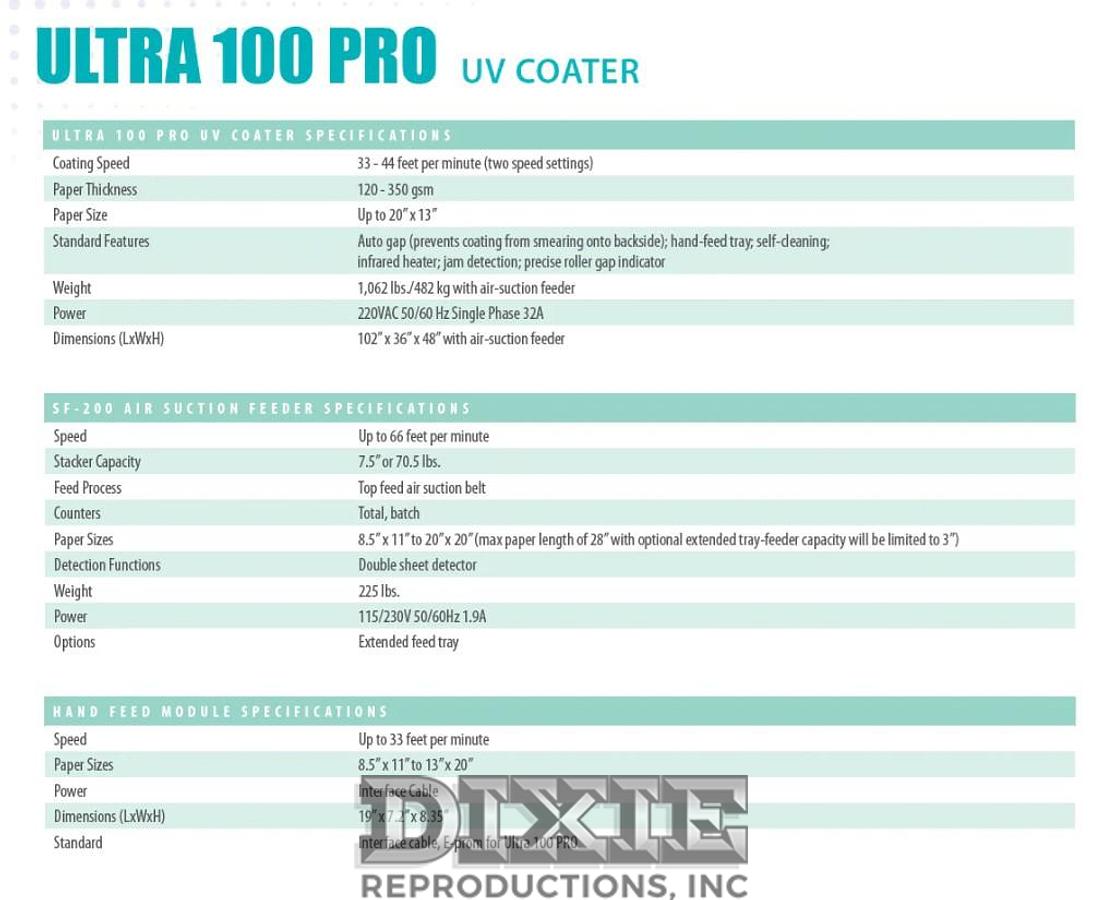

Coating Speed 33 – 44 feet per minute (two speed settings)

Paper Thickness 120 – 350 gsm

Paper Size Up to 20” x 13”

Standard Features: Auto gap (prevents coating from smearing onto backside); hand-feed tray; self-cleaning; infrared heater; jam detection; precise roller gap indicator

Weight 1,062 lbs./482 kg with air-suction feeder

Power 220VAC 50/60 Hz Single Phase 32A

Dimensions (L x W x H) 102” x 36” x 48” with air-suction feeder

SF-200 Air Suction Feeder Specifications

Speed Up to 66 feet per minute

Stacker Capacity 7.5” or 70.5 lbs.

Feed Process Top feed air suction belt

Counters Total, batch

Paper Sizes 8.5” x 11” to 20” x 20” (max paper length of 28”)

Detection Functions Double sheet detector

Weight 225 lbs.

Power 115/230V 50/60Hz 1.9A
