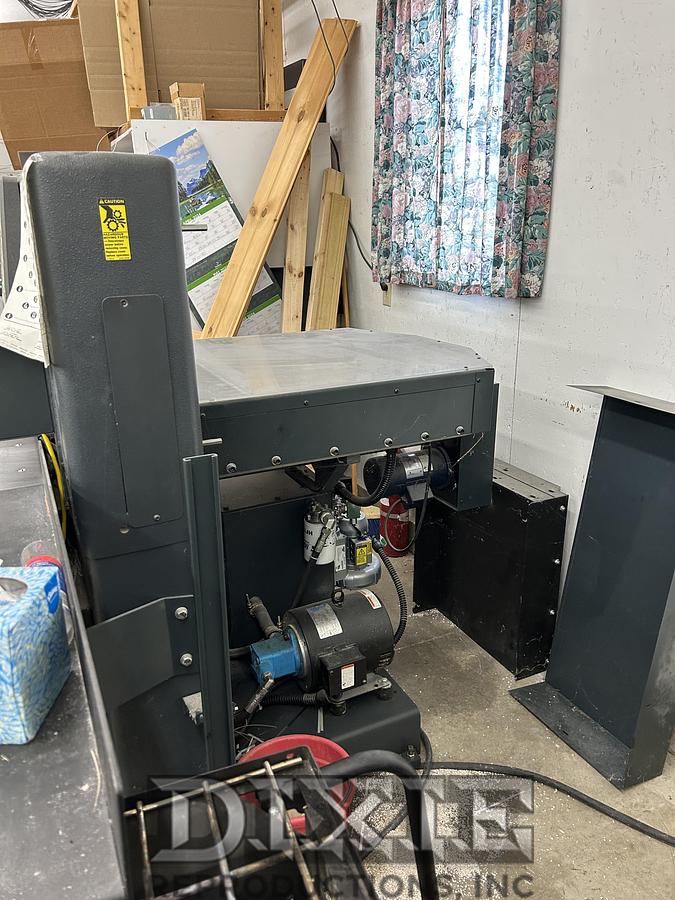

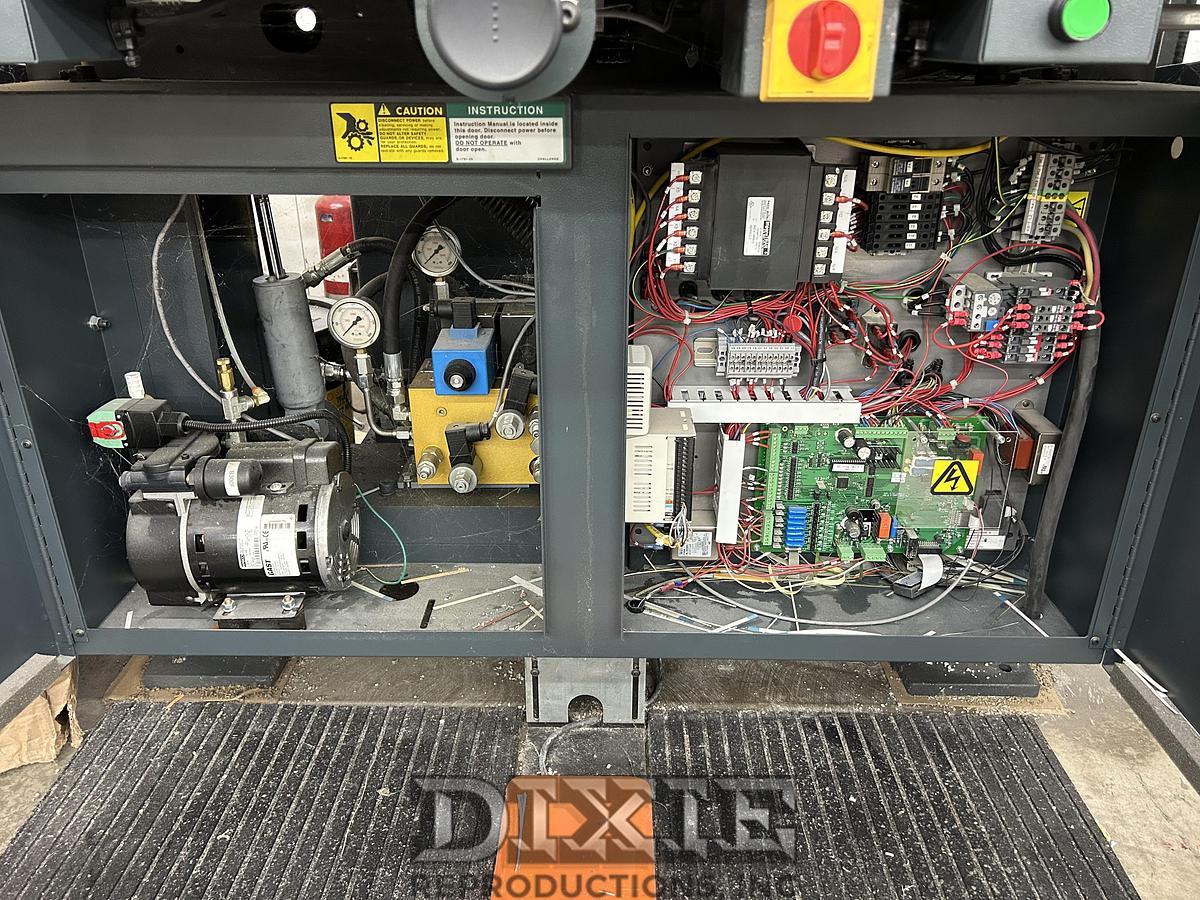

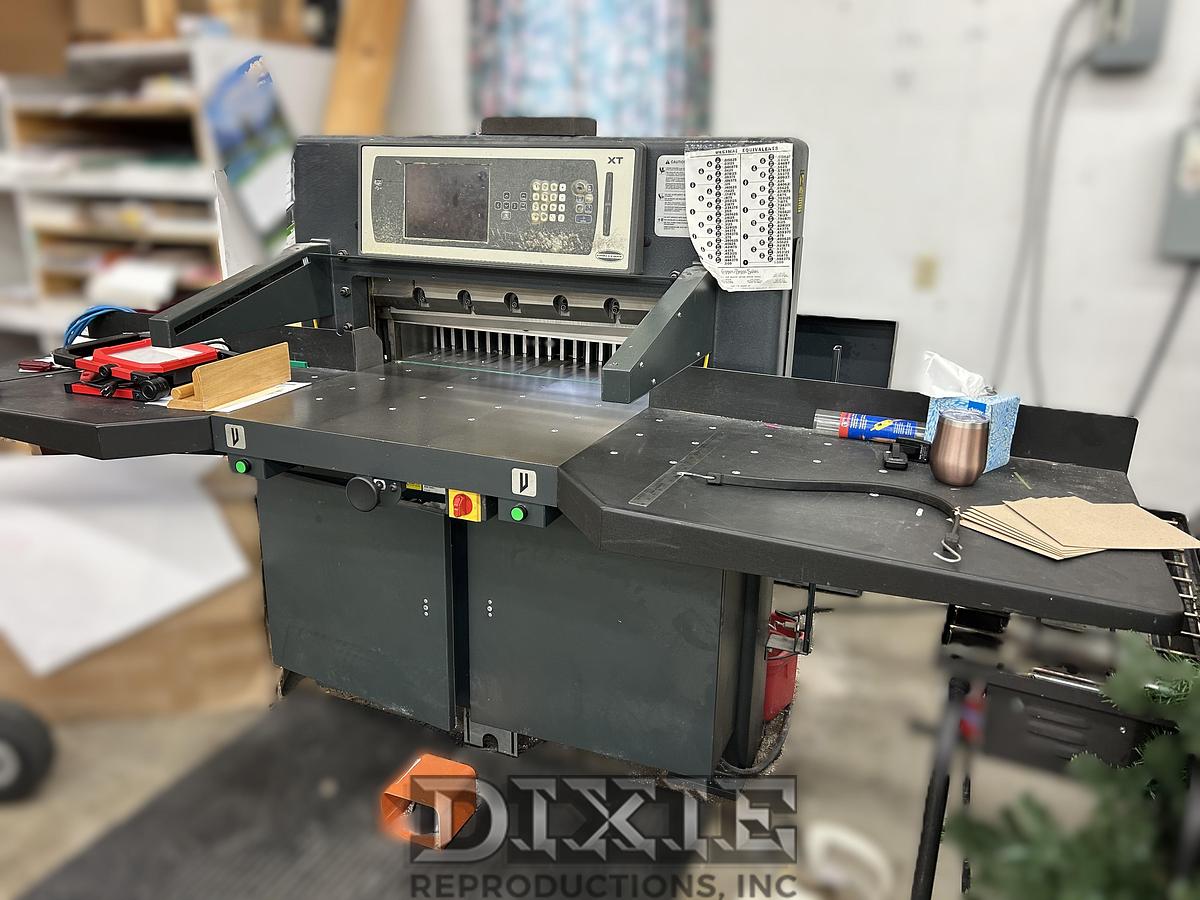

2010 Challenge 305XT

The Challenge Champion 305XT is a high-capacity, hydraulic paper cutter designed for heavy-duty label and sheet cutting, with a focus on durability, safety, and programmable control.

• Model: Champion 305XT
• Max Cutting Width: 30.5" (77.5 cm)
• Cutting Height: 4" (10.2 cm)
• Cutting Length Behind Blade: 30.5" (77.5 cm)
• Cutting Length in Front of Blade: 25" (63.5 cm)
• Table Height from Floor: 36.5" (94 cm)
• Minimum Cut (with False Clamp Plate): 2.00" (5 cm)
• Minimum Cut (without False Clamp Plate): 0.75" (1.9 cm)
• Clamp Opening: 4" (10.2 cm)
• Clamp Type: Hydraulic
• Clamp Force Range: 400–5000 lbs (180–2200 daN)
• Programmable Clamp Pressure: Yes (per cut)
• Low-Pressure Pre-Clamping: <66 PSI
• Cutting Mode: Hydraulic
• Optical Cutting Line: Yes
• Blade Thickness: 0.371" (0.942 cm)
• Grinding Life: 1.125" (2.858 cm)
• Cutting Speed: 24 strokes/min (standard)
• Backgauge Drive: Program, Enter/Send, Glide Control; 5" (12.7 cm) fast speed
• Motors: 5 HP, 3-phase, 60 Hz; 208/230 V, 25 A; service size 40 A; optional 460 V, 11.5 A, 20 A
• Voltage Options: 208/230 V or other voltages available
• Weight: 2,550 lbs (net)
• Dimensions (LxWxH): 71" x 78.5" x 58.5" (with extension tables)
• Floor Area Required: ~38 sq ft

Safety Features: Category 4 light safety curtains, enclosed rear table, two-hand timed non-repeat cut buttons, knife safety latch.

Controller: Intuitive menu-driven, variable mode data entry (up to 99 jobs, 9,801 total cut positions)

Maintenance: UHMW gib surfaces, composite bushings; virtually maintenance-free design.
