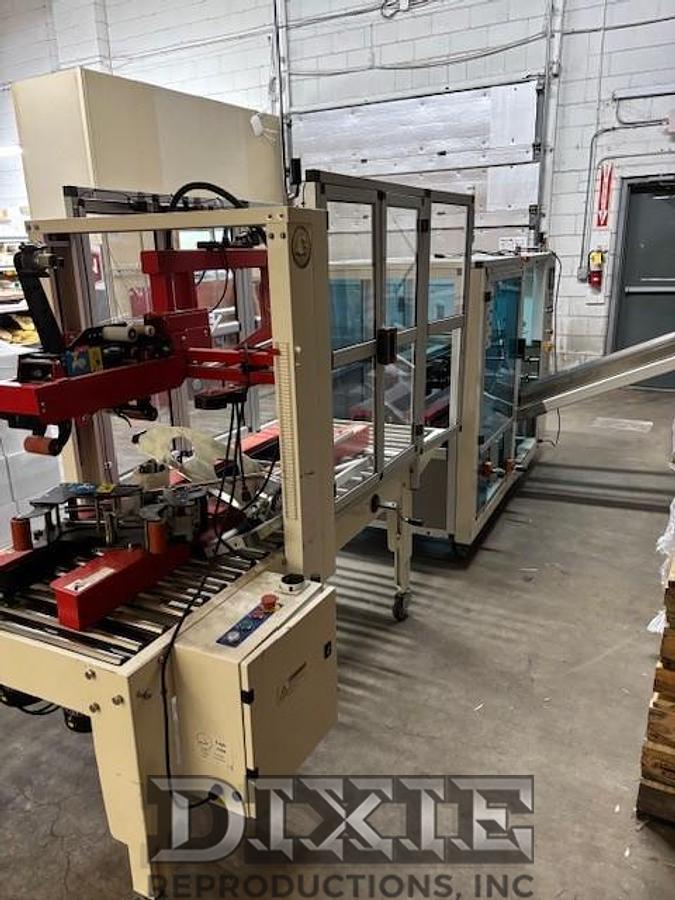

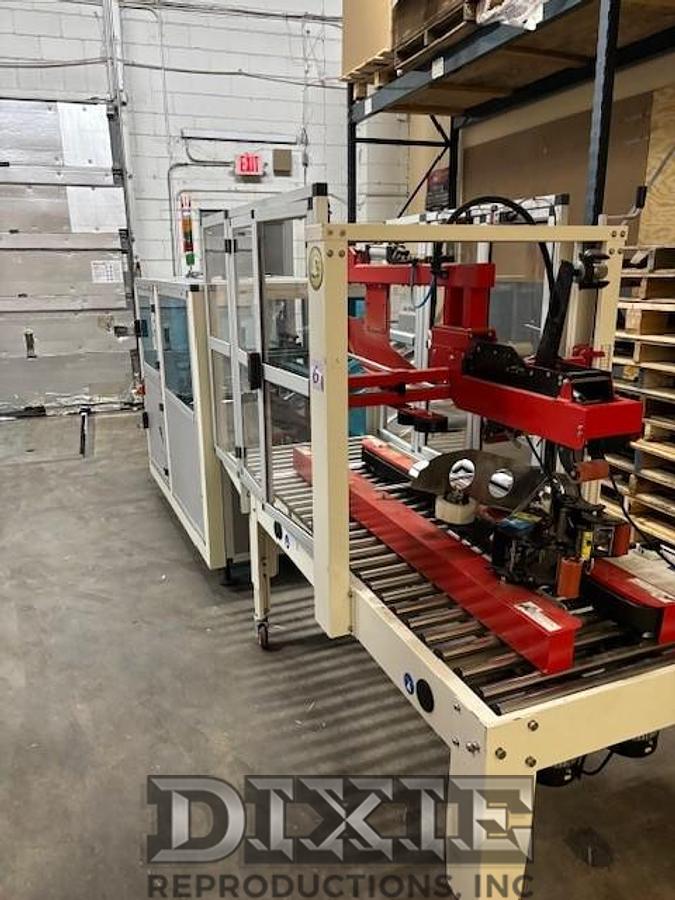

2024 Eagle T20CF-SM Carton Erector and T500 Sealer

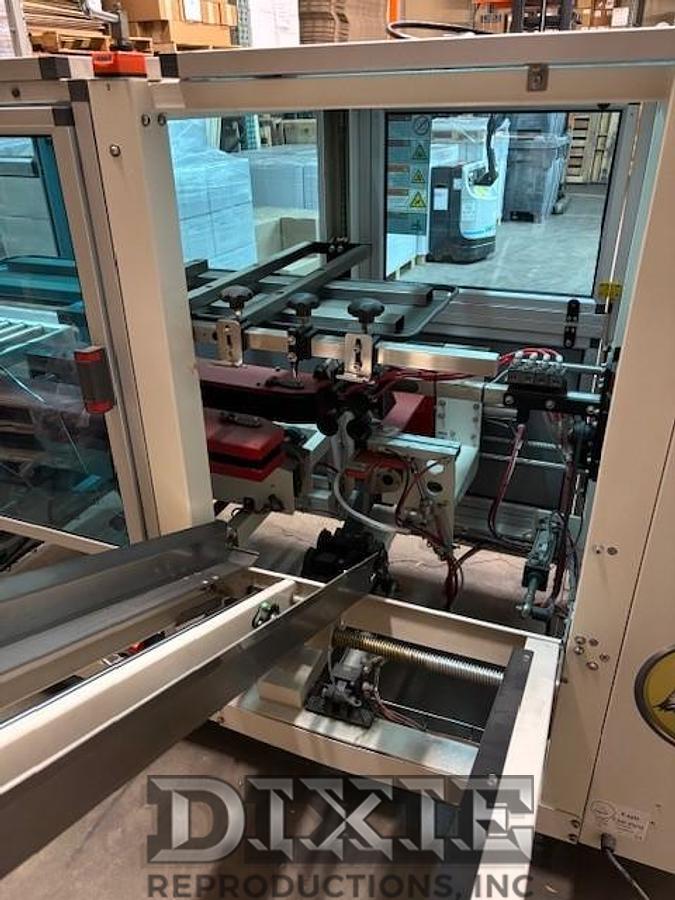

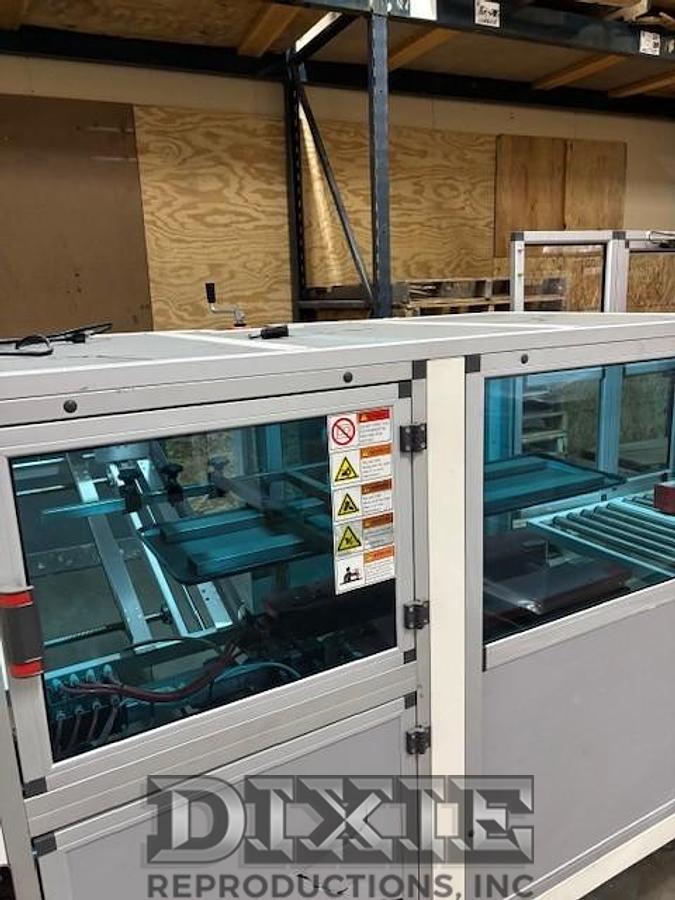

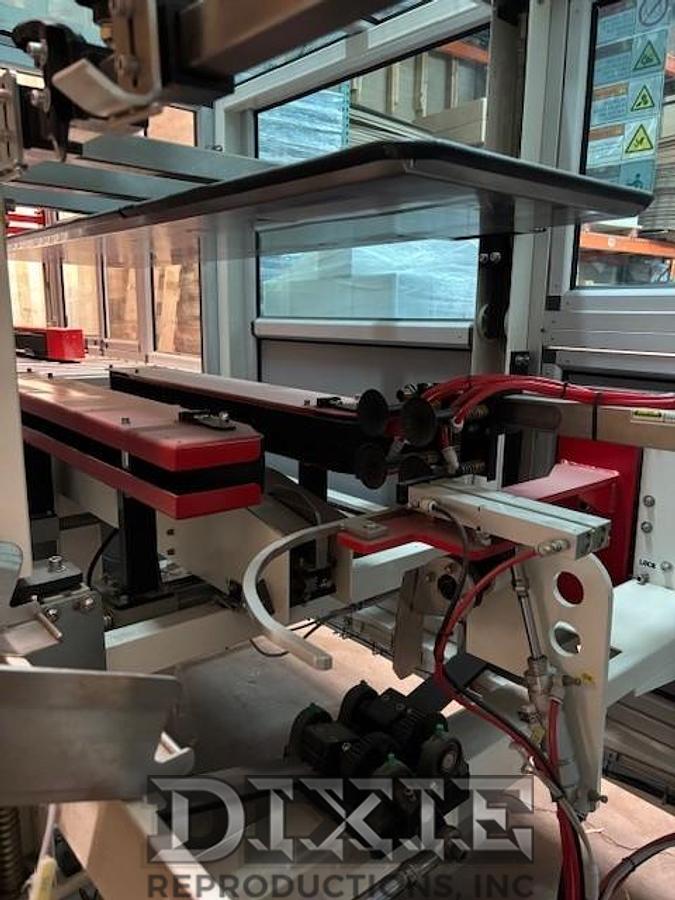

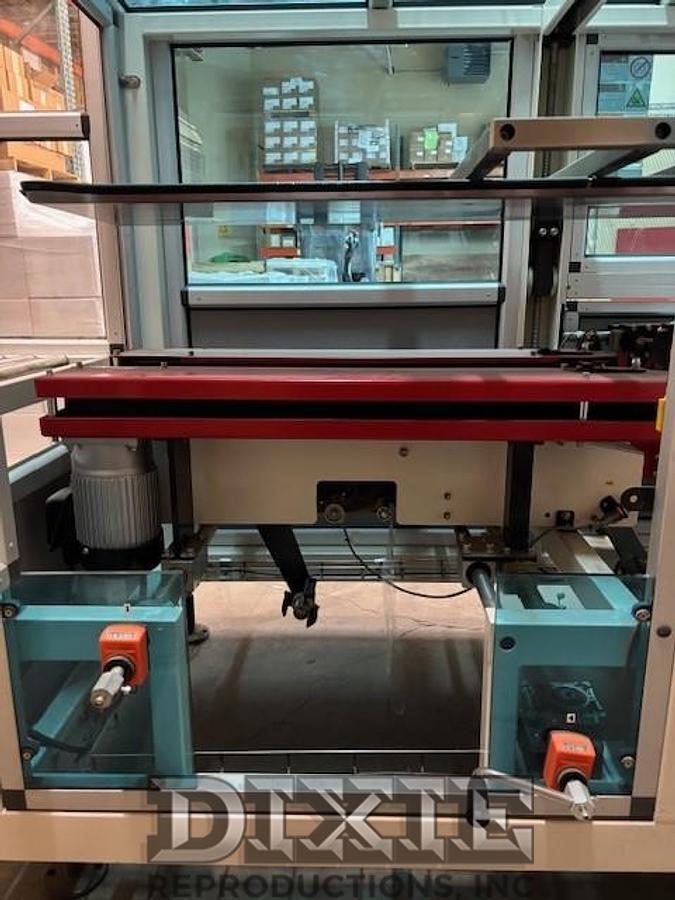

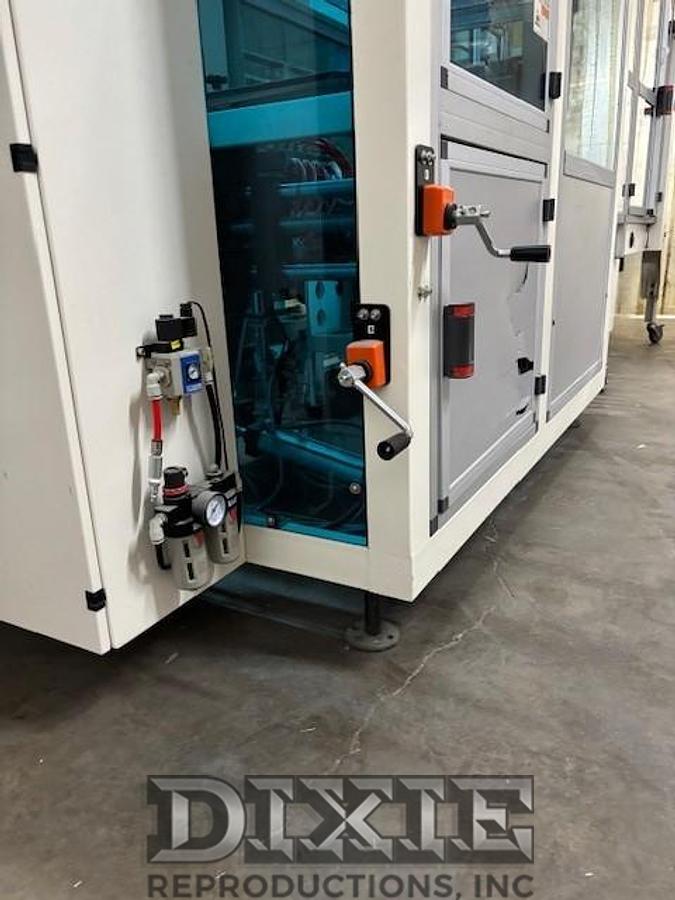

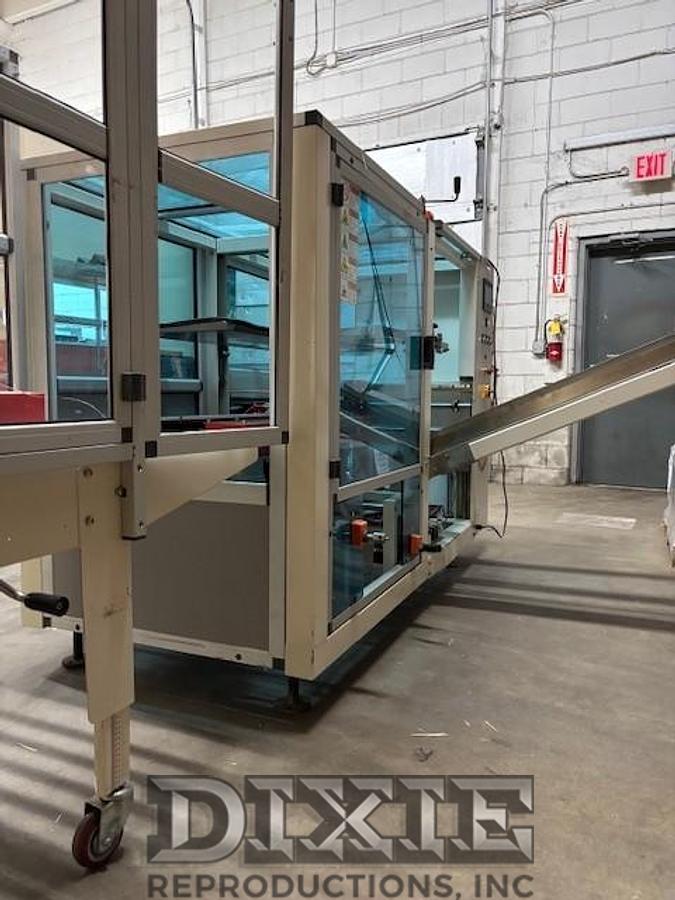

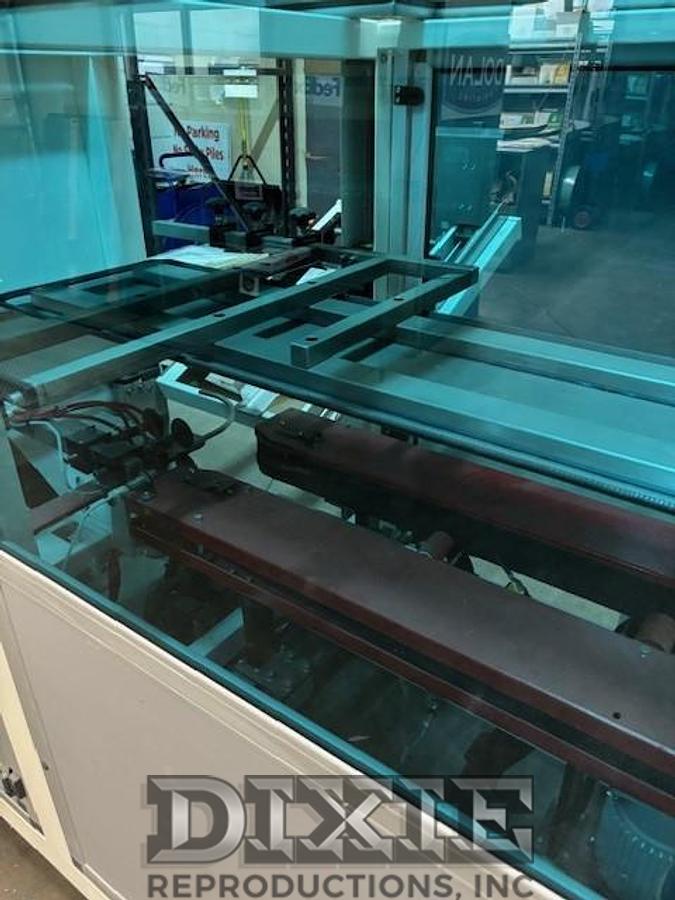

The Eagle T20CF-SM is a compact, fully automatic case erector and bottom sealer designed for smaller packaging spaces, with a powered magazine for continuous operation.

Case Size Range (L × W × H): 6.5" to 13" × 4.5" to 15" × 3.5" to 16"

Max Case Dimensions (some listings): up to 26.5" L × 24.75" W × 28.5" H

Length + Width Limit: ≤ 18.25" combined

Working Speed: 0–15 cases per minute

Tape Width: 2"

Machine Dimensions: 86.6" W × 80.7" L × 53" H

Weight: ~881.8 lbs

Power Supply: 110VAC / 60Hz

Air Pressure: 85 psi, 14+ CFM

Operating Environment: Humidity ≤98% (some sources ≤90%), Temperature 32°F–104°F (0–40°C)

******************************************************************************************************************

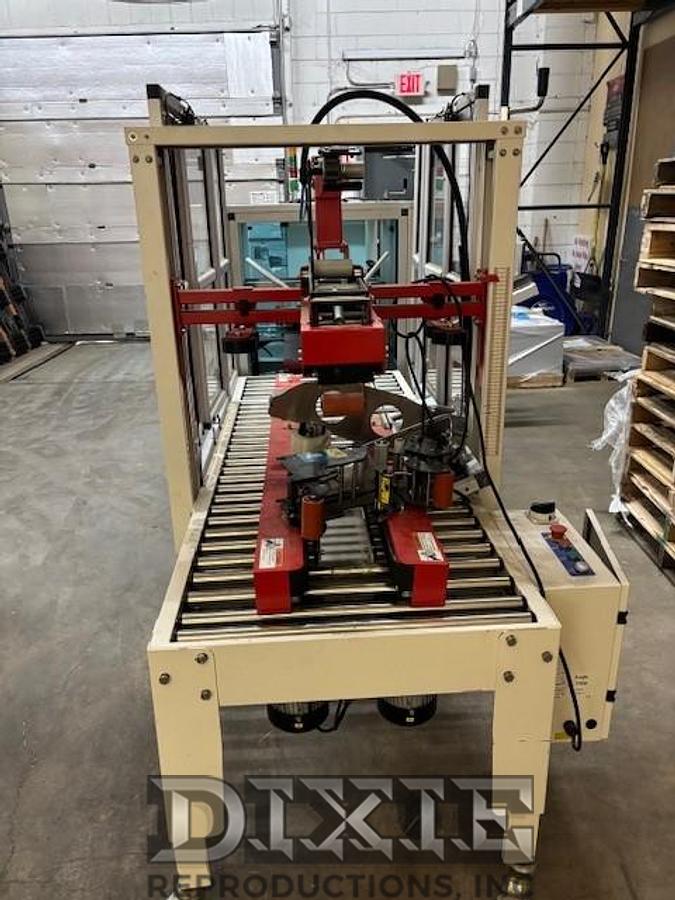

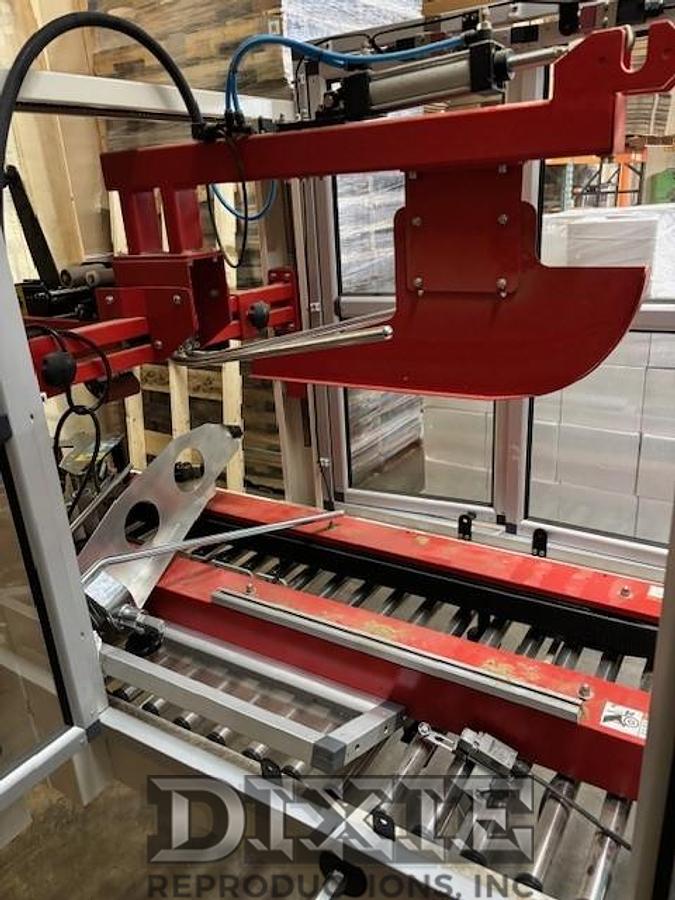

The Eagle T500 is a fully automatic carton sealer and taper with a 3‑flap folder, designed for high‑speed, uniform carton sealing with minimal setup changes.

Key Features

Fully automatic carton sealer with top flap folding

Top and bottom tape heads (adjustable for 2" or 3" tape)

Side belt drive with dual 1/4 HP industrial motors

Extension in/out‑feed roller tables

Adjustable table work height

Locking roller caster wheels

Dual mast with top squeezers

All‑metal drive wheel

Safety guards with emergency stops

Sealing speed: 12–15 cartons per minute (some sources list up to 15/min)

Tape material: BOPP

Tape width: 2" or 3"

Max load: 80 lbs

Carton Size Range

Length: 6.00" – 22" (some listings extend to 20.25")

Width: 6.75" – 18.9" (some listings extend to 20.25")

Height: 4.5 – 17.7" (some listings extend to 19.75")

Power & Air Requirements

Power: 110VAC, single phase

Air consumption: 1 CFM @ 80 PSI

Overall size: ~65.5" x 36.6" x 53"

Weight: ~800 lbs

Working height: 17.5" min – 27.75" max
