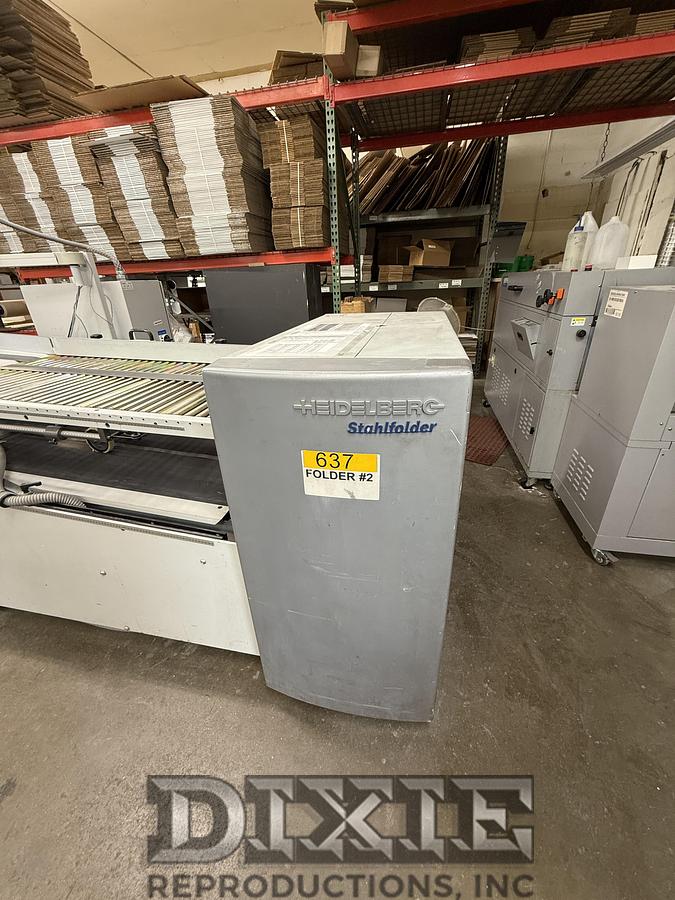

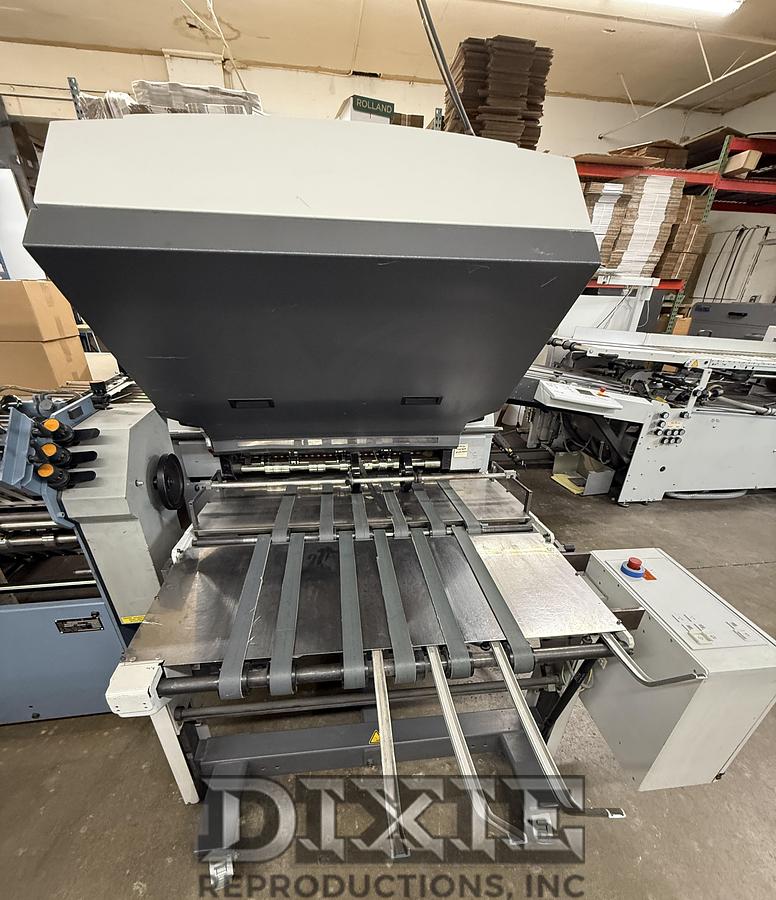

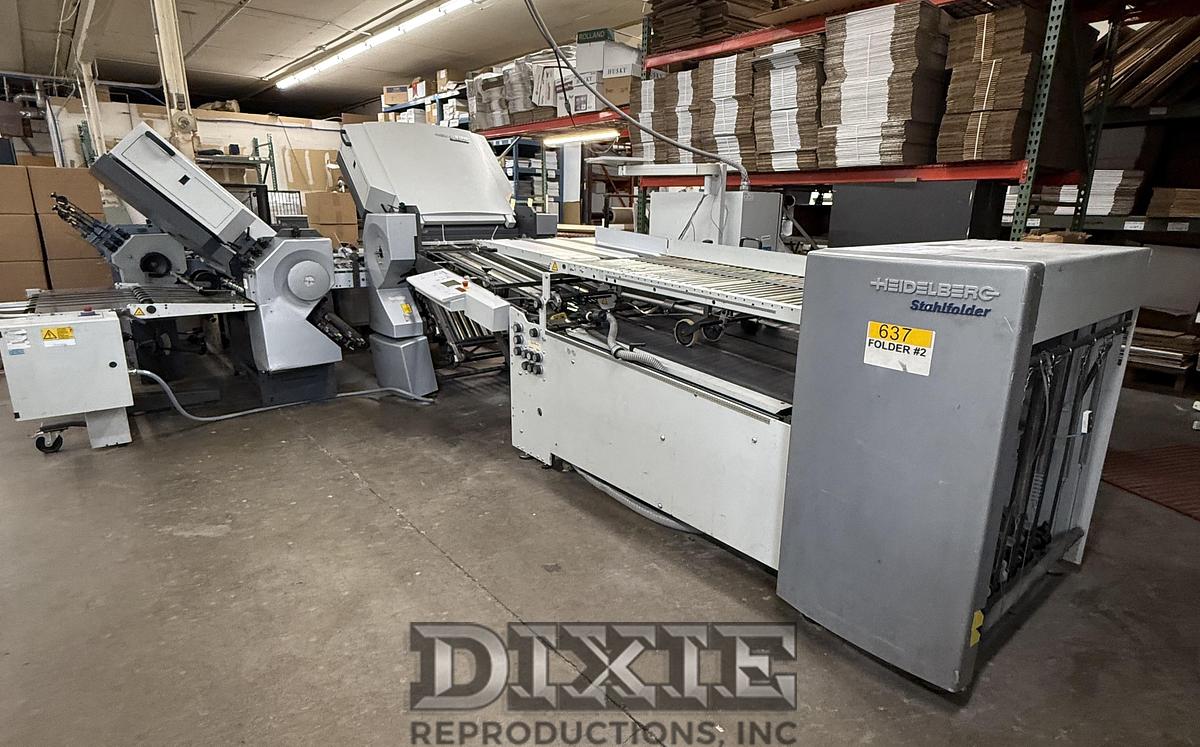

2008 Stahl TF-66/RFH-66 Folder

• Model / Configuration: RFH 66 (round pile feeder), 1st station: 6 folding pockets (66 cm), 2nd station: 4 folding pockets (66 cm), 3rd station: 4 folding pockets (56 cm).
• Feeder Type: Rotary feeder RFH with continuous loading.
• Max Sheet Size: 66 × 104 cm (first station), 66 × 128 cm (some configurations).
• Min Sheet Size: 14 × 18 cm (with twin suction wheel) or 20 × 18 cm (with twin suction wheel).
• Paper Weight Range: 40 – 250 g/m².
• Max Pile Height: 80 cm (first station), 120 cm (third station).
• Buckle Plates: 4, 6, or 8 plates per station (configurable).
• Max Fold Length: 62 cm (first station), 58 cm (second/ third stations).
• Min Fold Length: 5.5 cm (first station), 6 cm (second/third stations).
• Max Speed: 230 m/min (first station), 210 m/min (second/third stations).
• Min Speed: 25 m/min.
• Folding Rollers: 44 mm diameter.
• Control System: MCT control panel (with display or touchscreen).
• Power Consumption:
• 3 × 400 V, 50/60 Hz, 50 A (incl. pump)
• 3 × 230 V, 50/60 Hz, 63 A (incl. pump)
• Noise Reduction: Noise-absorbing hoods.
• Automation: Manual or automated operation; some configurations include knife shafts and upstream/following knife units.

TF-66

• Feeder type: Flatpile (pallet)
• Folding stations:
• 1st station: 66 cm width
• 2nd station: 66/56 cm width
• 3rd station: 56 cm width
• Max sheet size: 66 × 104 cm (station 1), 66 × 128 cm (station 2), 66 × 104 cm (station 3)
• Min sheet size: 14 × 18 cm (with twin suction wheel) or 20 × 18 cm (no suction wheel)
• Paper weight range: 40–250 g/m²
• Max pile height: 80 cm (station 1), 8 cm (station 2), 120 cm (station 3)
• Buckle plates: 4, 6, or 8 plates (configurable)
• Max fold length: 62 cm (station 1), 58–67 cm (stations 2 & 3)
• Min fold length: 5.5–6 cm (station 1), 6–6.85 cm (stations 2 & 3)
• Max speed: 230 m/min (station 1), 210 m/min (stations 2 & 3)
• Min speed: 25 m/min
• Roller diameter: 44 mm
• Control system: MCT control panel (manual or automated, with display or touchscreen)
• Power consumption: 3 × 400 V / 50–60 Hz, 50 A (feeder) or 3 × 230 V / 50–60 Hz, 63 A (feeder + pump)
• Included pump: Yes (5.7–7.8 kVA depending on configuration)

1. Typical Configuration & Features pressXchange+1

• Buckle plate setup: Often 4 plates per station (e.g., 4–4–4)
• Deflectors: Zero plate deflectors in both sections
• Delivery: Mobile belt or roll-away delivery
• Extras: SAK shingle delivery, SKP-M 66.D stream press station, gutters, trim kits, perfect score & slitter wheels
• Dimensions (parallel section): ~13 ft × 4 ft × 5 ft (overall)

1. Weight: ~2,600 lbs (feeder + register table + fold section + stacker + plates + blow pump
