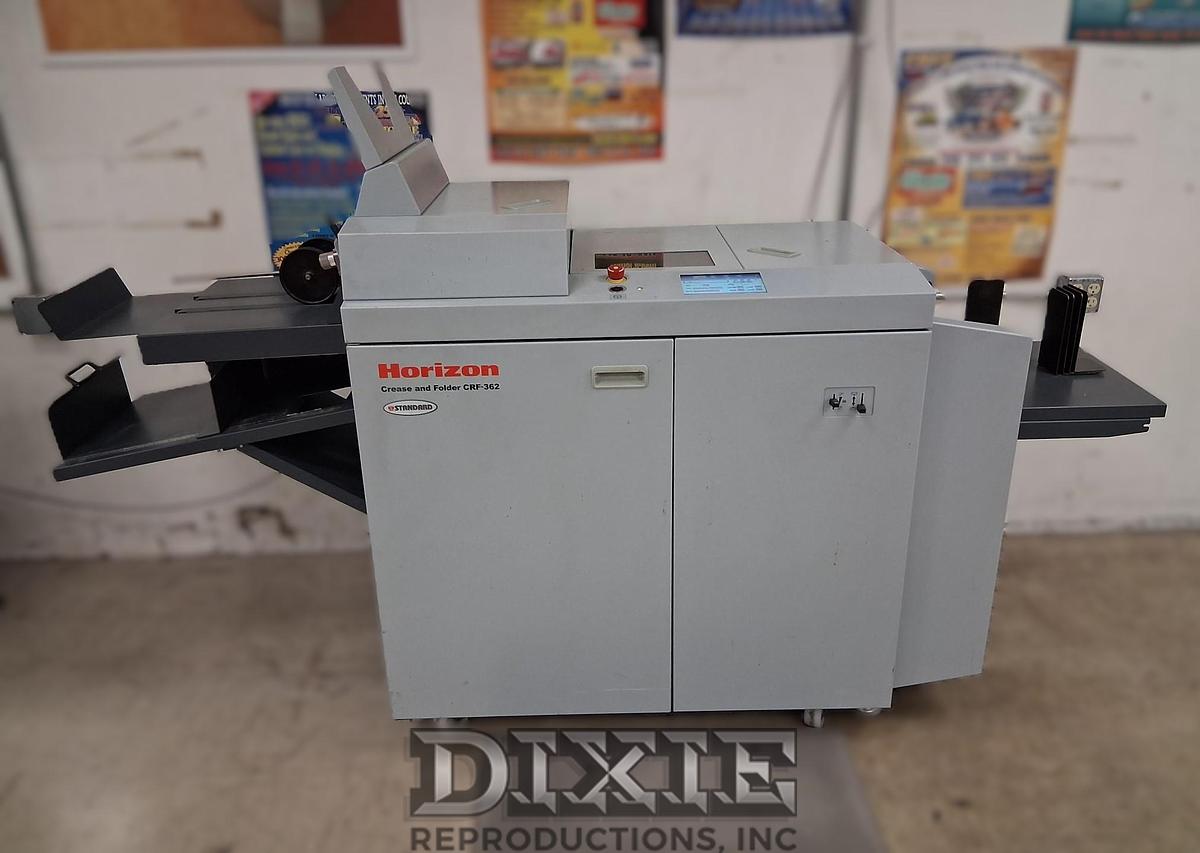

2013 Horizon CRF-362 Crease and Fold

The Horizon CRF-362 is a commercial creaser/folder designed for high-quality creasing and folding of digital and offset print output, suitable for restaurant menus, greeting cards, book covers, and marketing collateral.

Combines creasing, folding, and optional perforation in one pass for efficient postpress processing

Uses impact scoring technology to avoid cracking on digitally printed stocks

Supports up to 10 crease lines per sheet with up/down creasing options

Two fold knives for high-quality folding, even on heavy stocks

7 selectable fold patterns and 6 cover creasing patterns (spine, hinge, flap) for perfect binding

Optional impact perforation unit for full-width perforation or reduced perforation

Sheet size range: Max 14.33" W × 34.05" L (364 × 865 mm), Min 4.14" W × 7.09" L (105 × 180 mm)

Stock weight range: 80–350 gsm with folding; 80–400 gsm without folding

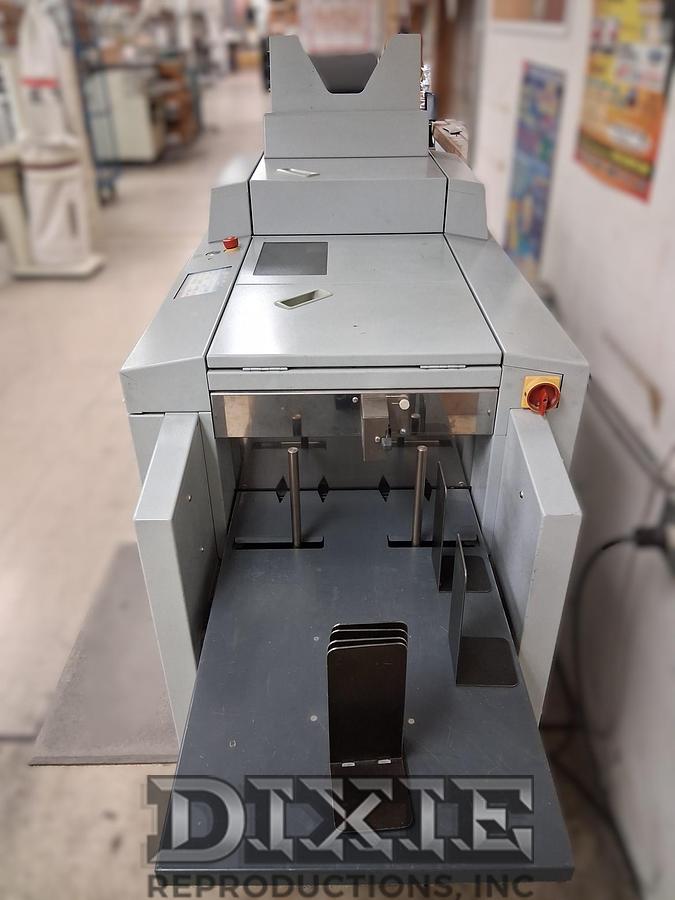

Feeder: Air suction feed belt, max stack height 5.9" (150 mm)

Production speed: Up to 5,000 sheets/hour (A4, 1 crease + 1 fold)

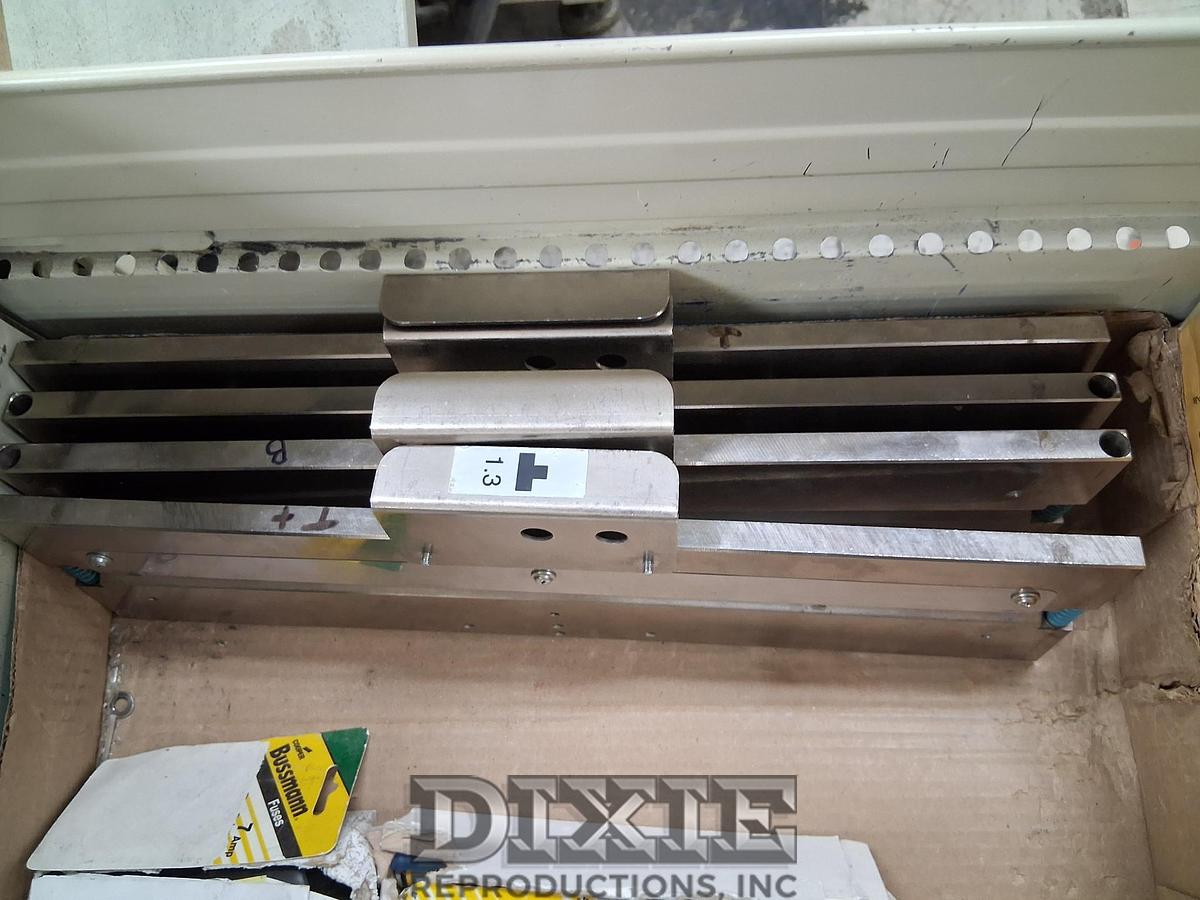

Crease thickness: 0.5 mm, 0.8 mm (standard), 1.3 mm, and 2.0 mm options

Crease distance: Adjustable from 0.1 mm in 0.1 mm increments

Weight: ~760.6 lbs (345 kg)

Dimensions: ~108" L × 27.6" W × 56.3" H
