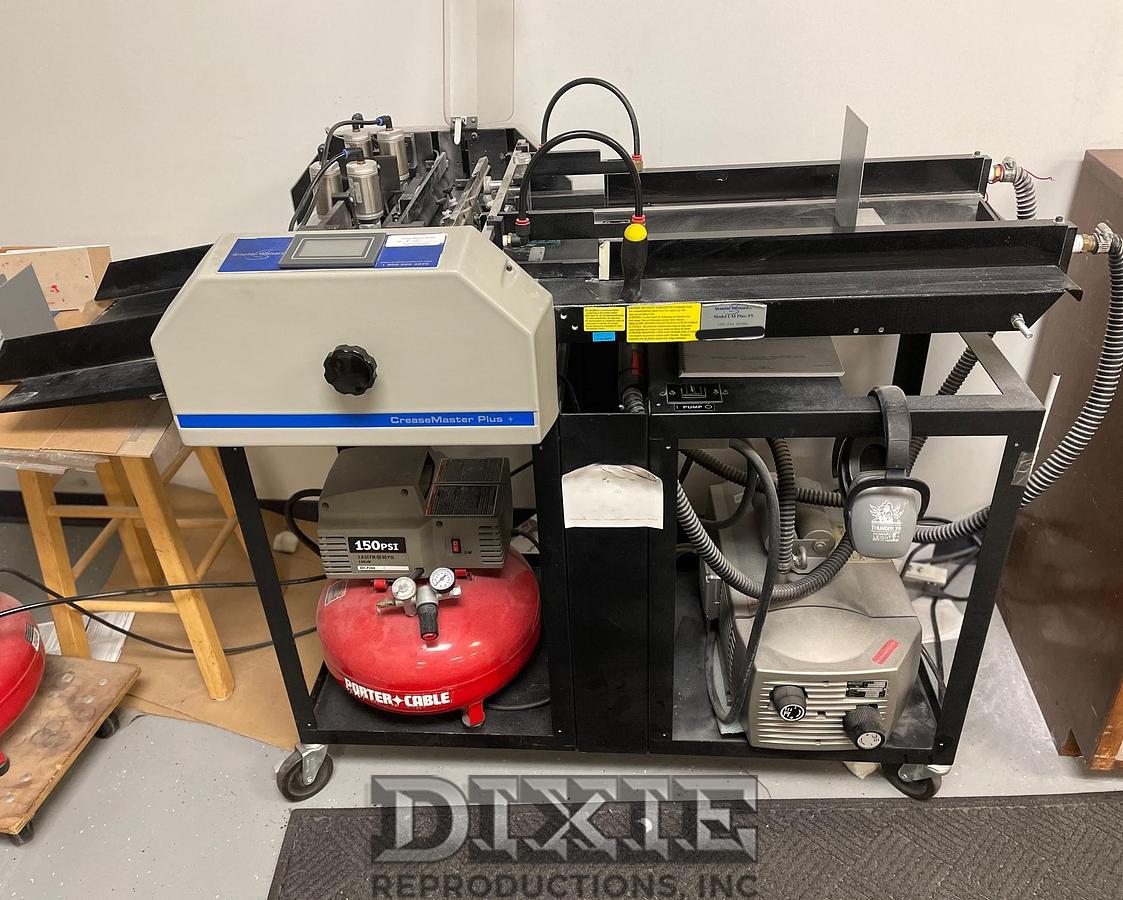

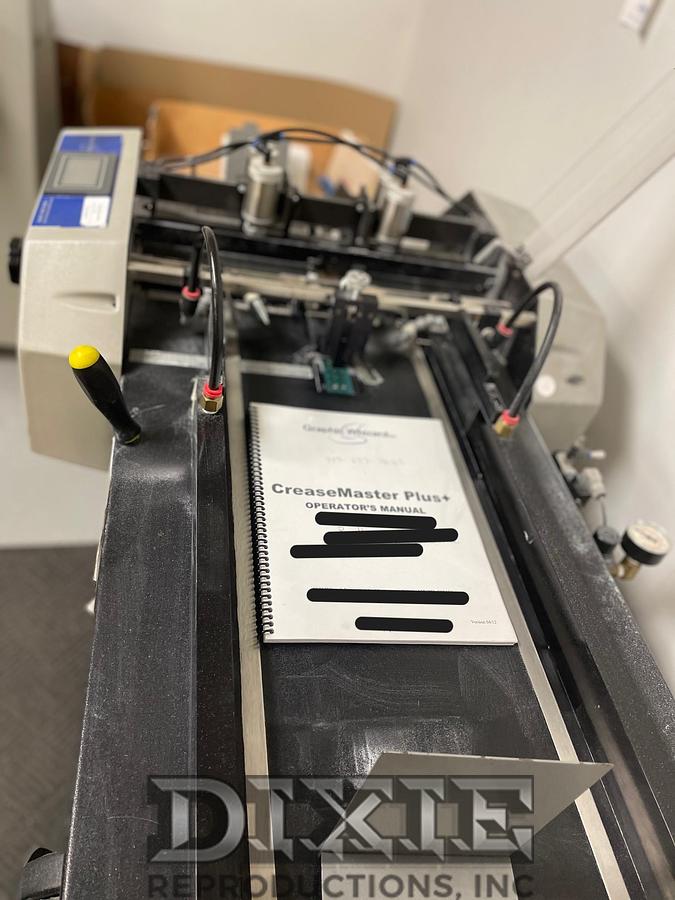

Graphic Whizard CM+ TS

The Graphic Whizard CreaseMaster Plus TS is a high‑performance pneumatic creasing and perforating machine designed for mid‑to‑high‑volume finishing, especially for digitally printed sheets.

Key Specifications Graphco+2

Type: Pneumatic creasing and perforating machine

Production speeds:

Creasing: up to 4,600 sheets per hour

Perforating: up to 4,900 sheets per hour

Creasing options:

Up to 10 creases per sheet

Inverted and regular creasing in the same pass

Impact creasing to reduce cracking of digitally printed substrates

Perforating options:

Rotary perforations (anvil style, no tail whip) for burr‑free finish

Optional strike perf and impact perf attachments for “box” or “T” perfs

Job memory: Stores up to 20 jobs for quick recall

Touchscreen interface: Easy setup and programming; set‑up in minutes

Stock size range:

Max: 18" W × 25.5" L

Min: 3.5" W × 5" L

Stock weight range: 12 lb. bond to 18 pt. board (approx. 45–385 gsm)

Dimensions: ~60" L × 27" W × 46" H

Weight: ~250 lbs
