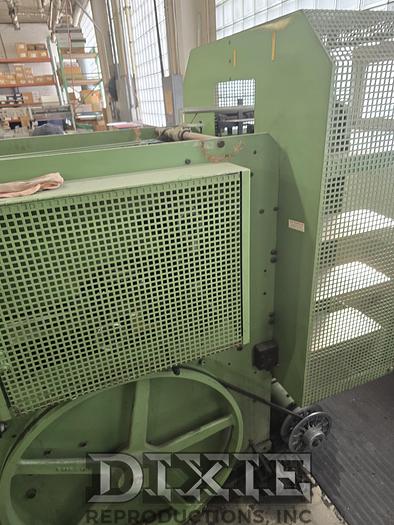

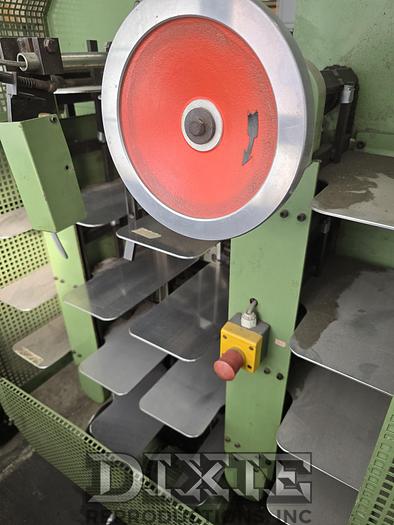

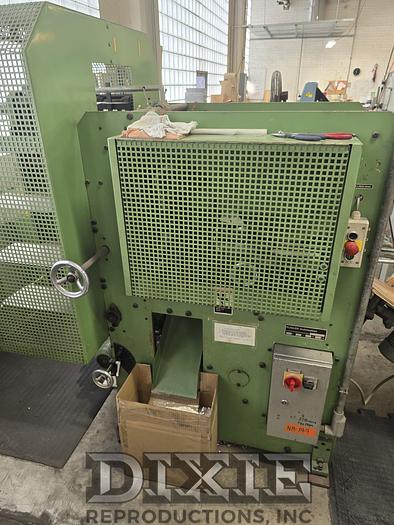

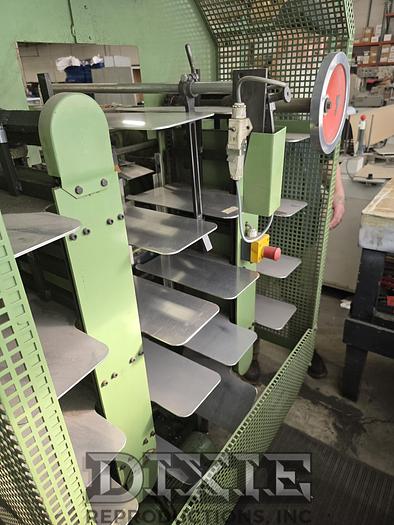

Kugler Punch/Perf Machine

Kugler Automatic Punching and Perf Machine

Max sheet size 340 x 340 mm

Min sheet size 120 x 105 mm

80-100 Cuts per minute

Single operator the Kugler automatic punch can punch up to 100,000 sheets per hour: ring binder inserts, calender pages, tab and register-cut sheets made

of cardboard and plastic, paper for wire-bound products (spiral and double wire binding)

special punching and much more.

Punching System Specifications

• continuous feed and unloading for maximum productivity

• materials are taken from the top of the stack for best results on a wide jkvariety of materials.

• trouble-free punching of mixed materials (i.e. cardboard and paper).

• turn-over drum keeps the punched pages in original sequence.

• sheets are aligned precisely just prior to punching for highest accuracy

• format and die changes can be done quickly and involve only a few adjustments.

Punch sizes: max 19.7″ x 19.7″ [500 x 500 mm ] min 4.75″ x 4.25″ [120 x 105 mm] Punching thickness (max): 1/8″ [3 mm] Speed: cycles/min. 60 – 100 3 x 220 V, 60 Hz

Voltage 1.8 kW

Weight: 3085 lb. [1400 kg] Length, Width: 74.8″, 43.3″, 55.1″ [190, 110, 140 cm]
