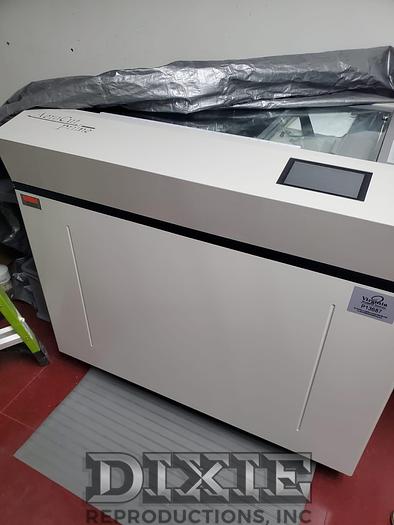

AeroCut Prime Slitter/Cutter/Creaser

No longer available

AeroCut Prime Slitter/Cutter/Creaser

Description

AeroCut Prime, the most productive and versatile digital finisher ever.

The AeroCut Prime is the top-end slitter/cutter/creaser.


Creasing Unit. The rule & matrix creaser on the AeroCut Prime allows the machine to offer world-class creases on digitally printed stocks. Creasing pressure can be adjusted in 5 levels instantly by shifting the lever.


Slitting / Cutting Units The AeroCut Prime features 2 single blade slitters to trim top & bottom margins of sheets, and 2 double blade slitters, bleed centre gutters and deflect wastes into a waste bin. The durable guillotine cuts stocks up to 400gsm in weight. All the slitter and guillotine blades are self-sharpening.

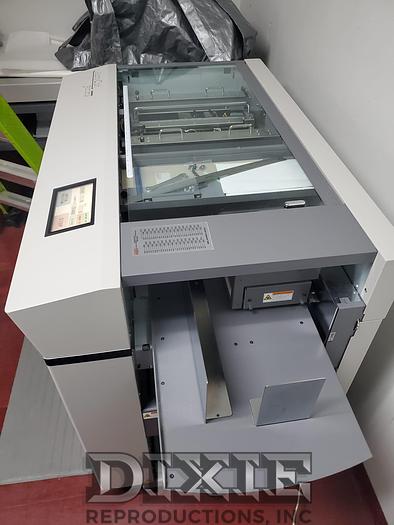

Feeding Unit The AeroCut Prime feeds printed stocks one-by-one from the top of the ream on the feed tray. The air-suction top feed system feeds even coated stock precisely without damage. There are several features to ensure feeding several weights and qualities of stocks every time.

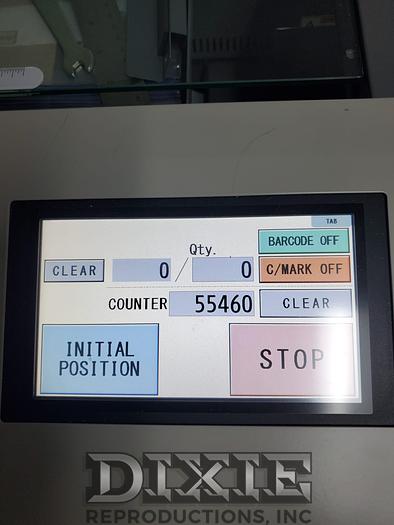

Intuitive operation The built-in 7″ touch screen allows operators to set job programmes and run the machine intuitively and instantly.


Features


370mm x 900mm sheet size

Takes up to 400gsm stock

268 preset jobs

150 customised jobs

Wi-Fi connectivity

Control direct from PC or MAC

22,500 business cards single cuts with options

1,260 centre crease A3 leaflets


Specifications

Functions

Crease, Score, Perf, Jump Perf, Slit, Cut

Production speed based on A4 single









crease

42 sheets per min

Barcode enabled

Yes

Max sheet size

370mm x 900mm

Min sheet size

210mm x 210mm

Media weight range

120 - 400gsm

Feeder pile height

150mm

Dimensions

1,177(W) x770(D )x1,070(H) mm

Electrical Requirements

100-120V or 200-240VAC, 50/60Hz single phase, 400W

Product Weight

260kg


Specifications

ManufacturerAeroCut Prime
ModelSlitter/Cutter/Creaser
ConditionUsed
Stock Number0A3049
