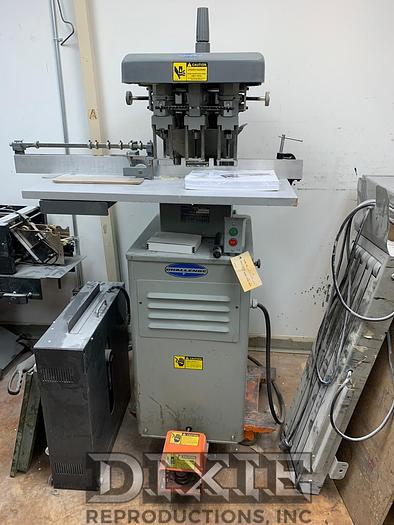

Challenge EH-3A Paper Drill, Grey

Challenge EH-3A Paper Drill, Grey

North America

orCall 615-382-6311

Description

DIMENSIONS

Table Size 19-1/2" x 31-1/2" / 50 x 80 cm Table Height 37" / 94 cm Overall Height 59-1/4" / 151 cm Floor Space Needed 36" x 41-1/2" / 91 x 105 cm Net Weight (approximate) 520 lbs / 236 kg Shipping Weight (approximate) 570 lbs / 259 kg

ELECTRICAL 1 Phase, 60 Hz, AC. Pump: 1/2 HP.  Spindle Motor: 1 HP.

Number of Drill Heads 3 Drill Sizes Available (2" capacity) 1/8" to 1/2" / 3 to 13 mm Drill Sizes Available (2-1/2" capacity) 1/4" to 1/2" / 6 to 13 mm Range Between Drills 2-3/4" to 4-1/2" / 7 - 11 cm Range Between Outside Drills 5-1/2" to 9" / 14 - 23 cm Maximum Drilling Capacity 2-1/2" / 63 mm Strokes per Minute (adjustable) Up to 18 Back-gauge Adjustment 0 to 4-1/2" / 0 to 11 cm Vertical Adjustment of Individual Heads1/4" / 6 mm

Specifications

ManufacturerChallenge
ModelEH-3A Paper Drill, Grey
ConditionUsed
Stock Number0A2024
